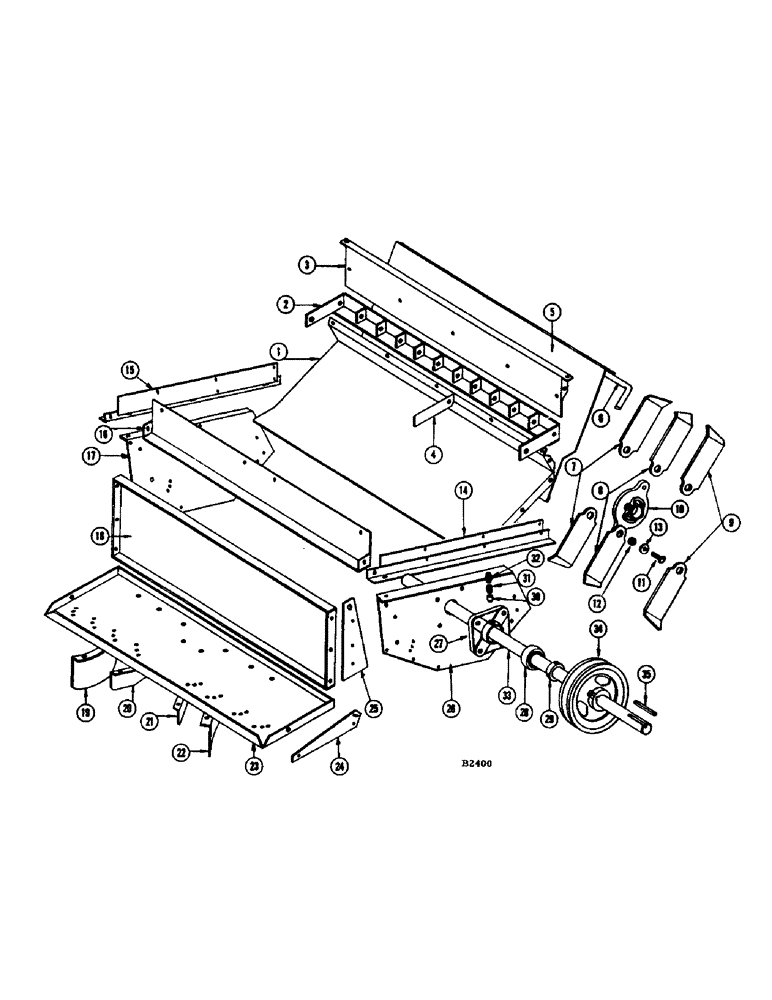

Запчасти Case IH 1060 (200) - STRAWCHOPPER HOUSING, INNES STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F13181

SHEET - bottom

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) nut (191-904)

12шт.

2

F86202

FRAME - retarder knife

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) nut (25-118)

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

3

F13182

SHEET - front

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) nut (191-904)

4шт.

SCREW - 5/16" x 5/8" N.C. truss hd. mach. (77-510)

9шт.

4

F19527

KNIFE

- retarder

11шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

11шт.

5

F86208

STRAWSLIDE

1шт.

6

F12179

ROD - strawslide

1шт.

WASHER - 5/16" plain (195-521)

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

1шт.

7

F82876

HAMMERS - (Pair of L.H.)

1шт.

8

F82874

HAMMERS - (Pair of R.H. and L.H.)

10шт.

9

F85875

HAMMERS - (Pair of R.H.)

1шт.

10

F1599

HOLDER - hammer

12шт.

SCREW - 3/8" x 3/4" N.F. sq. hd. set (86-612) and jam nut (25-156)

24шт.

NUT - (25-116) L.W. (92-6)

24шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

24шт.

12

F19529

BUSHING - (3/4" O.D. x 3/8" I.D. x 1/4" long) Hammer holder

24шт.

13

F19530

WASHER - (1-1/8" O.D. x 25/64" I.D. x 3/16" thick) Hammer holder bolt

24шт.

14

F87107

PANEL - R.H., mounting

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) nut (129-103)

2шт.

15

F87106

PANEL - L.H. mounting

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (113-208) nut (129-103)

2шт.

16

F13189

PANEL - rear

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (114-105) nut (129-122)

10шт.

17

F13168

PANEL - side, L.H.

1шт.

18

F13183

SHEET - rear

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516)

8шт.

19

F13187

VANE - long, L.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (175-400) nut (129-101)

6шт.

20

F19535

VANE - short, L.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (175-400) nut (129-101)

2шт.

21

F19536

VANE - short, R.H.

1шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (175-400) nut (129-101)

2шт.

22

F13188

VANE - long, R.H.

3шт.

SCREW - 1/4" x 1/2" N.C. truss mach. (175-400) nut (129-101)

6шт.

23

F13185

PAN - spreader

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (113-206) nut (129-103)

2шт.

WASHER - 3/8" plain (195-525) L.W. (192-2)

2шт.

24

F13186

BRACE - spreader pan

2шт.

BOLT - 5/16" x 5/8" N.C. hex. (113-118) nut (129-102)

2шт.

25

F13184

PLATE - hinge

2шт.

NUT - 5/16" spinlock

8шт.

26

F13180

PANEL - side, R.H.

1шт.

F84273

BEARING - complete, cutter shaft

2шт.

27

F1695

HOUSING - bearing

1шт.

28

F84274

BEARING

- cutter shaft

1шт.

29

F21378

COLLAR

1шт.

84-57

SCREW - 5/16" - 24 x 7/16" hex. socket hd. set

2шт.

30

F21379

CARRIAGE BOLT

RETAINER - race

1шт.

31

F21380

SPRING

1шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

8шт.

92-8

LOCK WASHER,1/2"

8шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex., bearing housing

8шт.

33

F12175

SHAFT

1шт.

34

F1379

SHEAVE - chopper

1шт.

SCREW - 3/8" x 1/2" N.C. socket hd. set (83-68)

2шт.

35

B18232

KEY

- (5/16" x 5/16" x 1-1/2") F1379 sheave, ref. 29

1шт.
