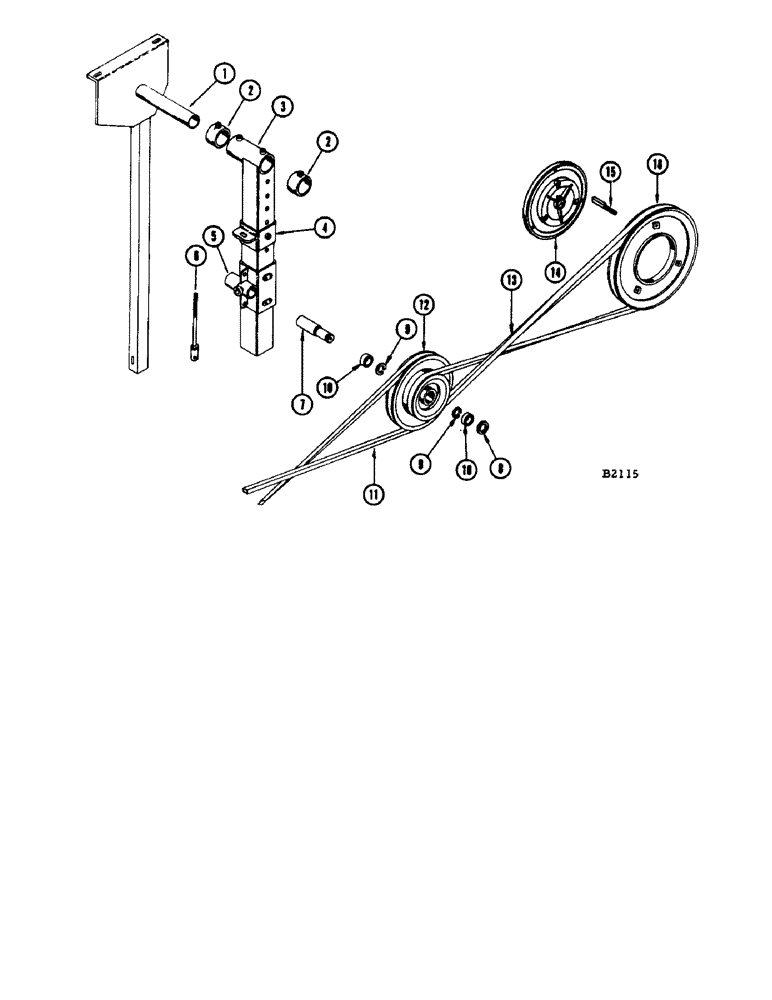

Запчасти Case IH 1060 (198) - STRAWCHOPPER DRIVE, INNES STRAWCHOPPER ATTACHMENT (73) - RESIDUE HANDLING

1

F86936

BRACKET - hanger

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

3шт.

WASHER - 5/16" plain (195-521) L.W. (192-20)

3шт.

2

F1601

COLLAR - adjusting hanger

2шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

2шт.

3

F82884

HANGER

1шт.

BOLT - 3/8" x 7/8" N.C. (13-614) Jam nut (25-146)

2шт.

4

F1600

STOP - for F82884 hanger (Ref. 3)

1шт.

BOLT - 3/8" x 2-1/4" N.C. hex. (13-636) L.W. (92-6)

1шт.

SCREW - 3/8" x 1/2" N.C. sq. hd. set (85-608)

1шт.

5

F1602

BRACKET - jackshaft

1шт.

BOLT - 3/8" x 1/2" N.C. hex. (13-68)

4шт.

BOLT - 3/8" x 5/8" N.C. hex. (13-610)

3шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. set (85-612) and jam nut (25-146)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

WASHER - 5/16" plain (195-21) L.W. (92-5)

1шт.

6

F82878

SCREW - adjusting

1шт.

NUT - 3/8" N.C. hex. jam (25-146)

2шт.

7

F19543

JACKSHAFT

1шт.

8

F19544

RING - retaining

1шт.

9

A27150

RING

SNAP RING

2шт.

10

F19545

BEARING, BALL

BEARING

2шт.

11

F12180

BELT

"V"BELT - rear

1шт.

12

F1603

PULLEY

1шт.

13

F19549

V-BELT,153.00" L

Front 153.00" L

1шт.

14

F1606

HUB - drive, for F1605 when machine is equipped with chain cylinder drive

1шт.

SCREW - 3/8" x 3/4" N.C. socket hd. set (83-612) and jam nut (25-146)

2шт.

15

O8065HT

KEY

- (3/8" x 3/8" x 1-7/16") For F1606 hub (Ref. 14)

1шт.

16

F1605

SHEAVE - cutter drive

1шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) L.W. (192-21)

3шт.
