Запчасти Case IH 1060 (196) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING

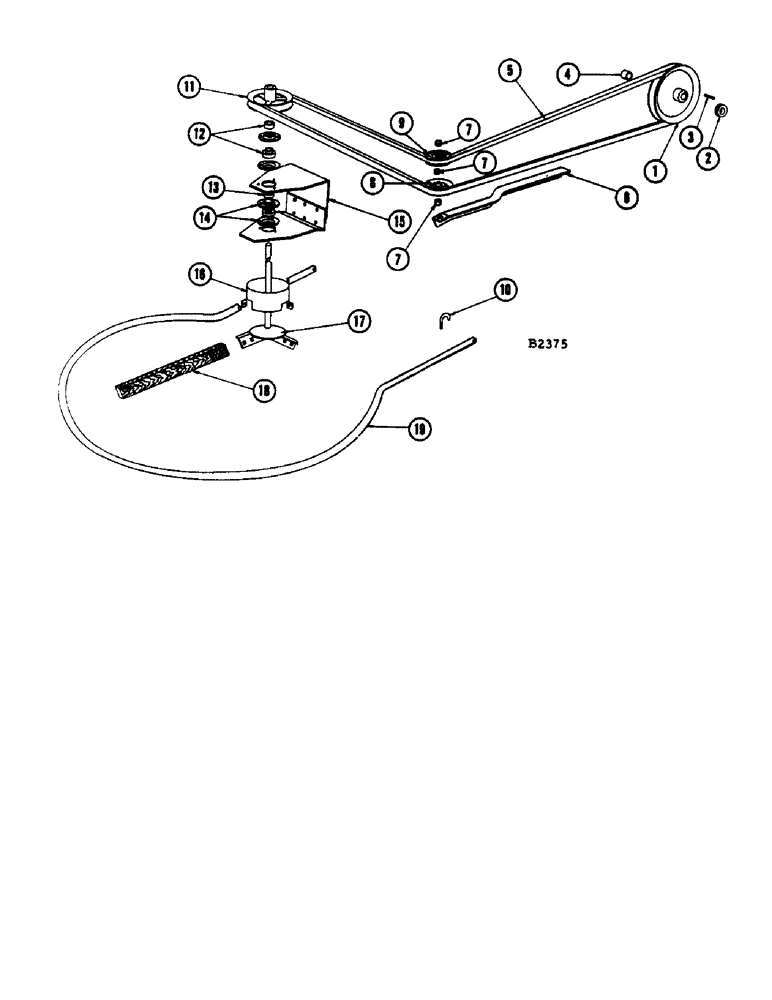

Схема запчастей Case IH 1060 - (196) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING
8
11
17
9
7
15
13
14
5
16
3
19
1
10
6
18
4
12
7
7
2

Артикул

Название

Примечание

Количество

1

F77156

SHEAVE - on rear strawwalker crankshaft, drives spreader

1шт.

2

A28760

COLLAR - locks F77156 sheave on rear strawwalker drive shaft

1шт.

PIN - 1/4" x 1-3/4" cotter (132-152)

1шт.

3

T25070

KEY

- (1/4" sq. x 2" long) For F77156 sheave (Ref. 1)

1шт.

4

O5963HT

SPACER - for F77156 sheave (Ref.1)

1шт.

5

F8492

V-BELT

"V"BELT - spreader drive

1шт.

6

F11329

ANGLE - idler support

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103)

2шт.

7

V13384

SPACER

3шт.

8

F6845

SHEAVE

- (4-3/8" O.D.) Lower idler

1шт.

9

F52873

PULLEY

SHEAVE - (4-5/8" O.D.) Upper idler

1шт.

10

F12153

HOOK - guard mounting

2шт.

NUT - 5/16" N.F. hex. (129-122) L.W. (192-20) and plain wshr. (195-521)

2шт.

11

44CS

PULLEY - spreader shaft, driven

1шт.

BOLT - 5/16" x 2-1/4" N.F. hex. (14-536) nut (25-115)

2шт.

12

3074CSA

BALL BEARING

- for ref. 17

2шт.

13

F62108

COLLAR

1шт.

14

B18282

FLANGE

- for 3074CSA bearing (Ref. 12)

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

6шт.

15

F86279

BRACKET - spreader mounting

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

6шт.

16

F9567

SHIELD - for paddles

1шт.

17

F86186

SHAFT - spreader, with paddle supports and reinforcement

1шт.

18

F4021

PADDLE

S

3шт.

BOLT - 5/16" x 1-3/4" rhd. sq. nk. (111-219) nut (129-102)

6шт.

WASHER - 5/16" plain (195-103) L.W. (192-20)

6шт.

19

F13169

SCREW

GUARD - spreader paddles

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-123)

2шт.

WASHER - 3/8" plain (195-525) L.W. (192-21)

2шт.

Выбрано товаров: 29
