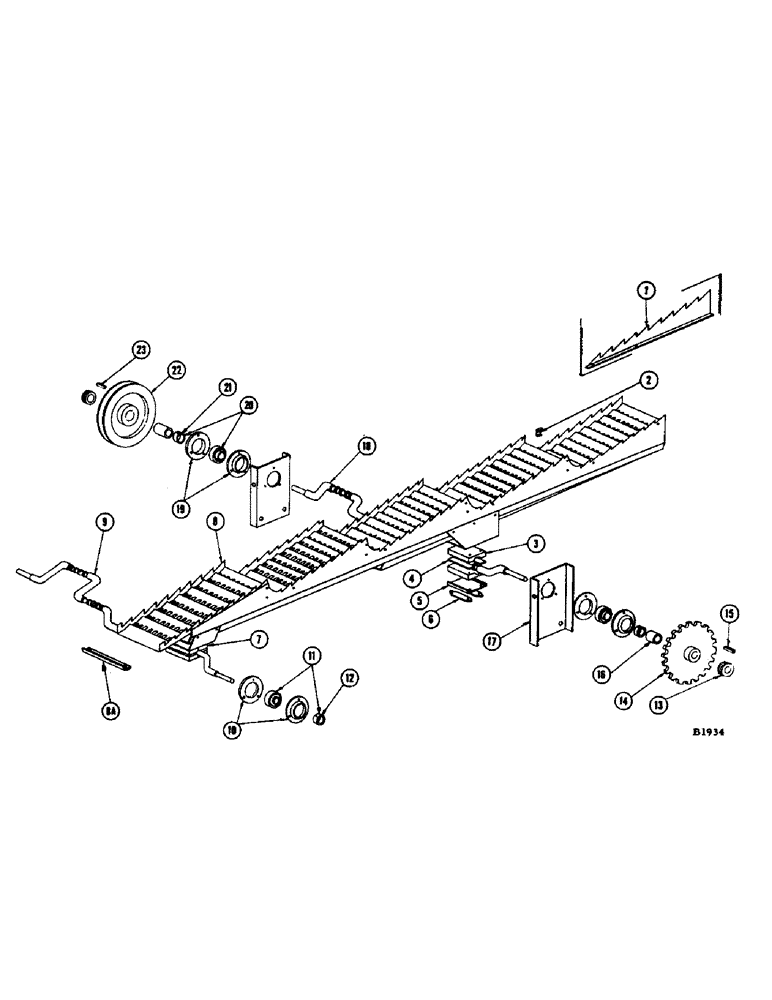

Запчасти Case IH 1060 (146) - STRAWWALKER (72) - SEPARATION

1

F11679

RISER - center

8шт.

2

F13202

CLIP - for F11679 riser

16шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) nut (25-104)

16шт.

3

F86343

SPECIAL CLAMP

BEARING - (Set of 2)

4шт.

BOLT - 5/16" x 3-1/4" rhd. sq. nk. (11-552) nut (25-225)

16шт.

4

F19656

SHIM,1/32" Thk

1шт.

5

F7820

CAP - bearing

8шт.

FITTING - 1/8" x 90 degrees (219-55)

8шт.

6

O9751HT

STRAP - lockwasher, for bearing cap

16шт.

7

F86344

BEARING

- (Set of 2)

4шт.

BOLT - 5/16" x 2-3/4" rhd. sq. nk. (11-544) nut (25-225)

16шт.

8

F79342

STRAW WALKER

STRAWWALKER - (Grain) Before #8357001: Replaced by F88714 when stocks are exhausted

4шт.

F88714

STRAWWALKER - (Grain) Replaces F79342

4шт.

F87655

STRAWWALKER - (Sorghum special) Not shown

1шт.

8a

F14940

CLIP - front grid support (For F88714), strawwalker drive

4шт.

9

F79796

CRANKSHAFT - front, strawwalker drive

1шт.

10

B18282

FLANGE

- for ref. 11, strawwalker drive

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105), strawwalker drive

6шт.

11

3074CSA

BALL BEARING

- for ref. 9 front crankshaft, strawwalker drive

2шт.

12

F62108

COLLAR

strawwalker drive

1шт.

13

A28760

COLLAR - for ref. 18, strawwalker drive

1шт.

14

F78413

SPROCKET - (48T) Strawwalker, driven (Rear crankshaft)

1шт.

F88431

SPROCKET - (52T) Strawwalker, driven (Sorghum special)

1шт.

15

O2227CH

KEY

- for sprocket (F78413), strawwalker drive

1шт.

16

O5963HT

SPACER - rear crankshaft, strawwalker drive

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - strawwalker jackshaft support, drive

2шт.

18

F79797

CRANKSHAFT - rear, strawwalker drive

1шт.

19

B18282

FLANGE

- for ref. 20, strawwalker drive

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105), strawwalker drive

6шт.

20

3074CSA

BALL BEARING

- ref. 18, strawwalker drive

2шт.

21

F62108

COLLAR

strawwalker drive

1шт.

22

F77156

SHEAVE - strawspreader drive attachment

1шт.

23

T25070

KEY

- (1/4" x 1/4" x 2" long) For F77156 sheave, strawwalker drive

1шт.

F10754

CHAIN - drives conveyor rake, strawwalker and tailings auger (See chain page) Used with F86221 sprocket

1шт.

F14167

CHAIN - (NSS - see chain page) Drives conveyor rake, strawwalker and tailings auger (Used with F14166 sprocket) See page 132

1шт.

F9626

COVER - horizontal grid, for strawwalker (Sorghum Grain), filler attachment

16шт.

F7435

CLIP - hold down, for horizontal grid cover, strawwalker filler attachment (sorghum grain)

32шт.

F87655

STRAWWALKER - (Sorghum special), filler attachment

4шт.
