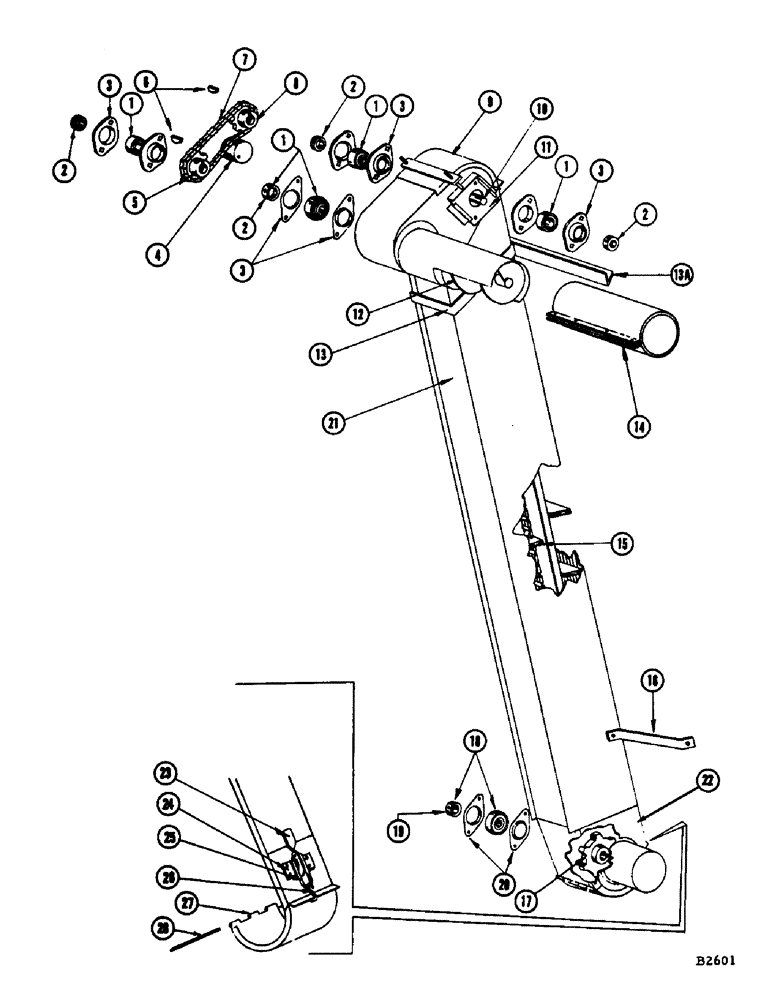

Запчасти Case IH 1060 (170) - TAILINGS ELEVATOR (66) - THRESHING

1

F90306

BEARING ASSY

BEARING - tailings elevator (Upper head)

4шт.

2

O4233CS

COLLAR

1шт.

3

F9417

FLANGE

- for ref. 1

8шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512)

2шт.

BOLT - 5/16" x 3/4" rhd. short sq. nk. (12-512)

6шт.

NUT - 5/16" N.C. hex. (25-105) Lockwasher (92-5)

8шт.

4

305-1/2CH

IDLER - discharge auger drive

1шт.

BOLT - 3/8" x 3-1/4" rhd. sq. nk. (11-652) nut (25-106)

1шт.

5

F76947

SPROCKET - (15T) Discharge auger drive, driven

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

For ref. 5 and 8 #A, 1/4" x 7/8"

2шт.

7

F7904

X

CHAIN - discharge auger drive (NSS-see chain page)

1шт.

8

F76981

SPROCKET - (22T) Discharge auger drive (On upper shaft)

1шт.

PIN - 3/16" x 2" cotter (132-99)

1шт.

9

F76970

COVER - upper head

1шт.

BOLT - 5/16" x 4-1/4" N.C. hex. (113-114) Wing nut (129-419)

4шт.

NUT - 5/16" N.C. hex. (129-102)

8шт.

10

F6571

SHAFT - upper elevator, discharge auger drive

1шт.

11

F7901

HOLDER - bearing

2шт.

12

F79824

AUGER - tailings discharge

1шт.

13

F77059

SCREW

SUPPORT - upper, for tailings elevator ("U" shaped)

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (13-412) Lockwasher (92-4)

2шт.

13a

F11519

ANGLE - support, tailings elevator (Bagger only)

1шт.

14

F14486

WRAPPER - reinforcing, tailings discharge tube

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) Locknut (131-1)

4шт.

15

F79436

X

CHAIN - conveyor (NSS) #55 (See chain page) Consists of 2-F86425, 1-coupler link and 1-plain link

1шт.

15

F88525

CHAIN - conveyor, #CA550 - 5 inch flight (See chain page) Consists of 40 flights

1шт.

16

F14895

SUPPORT - lower tailigs elevator

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

1шт.

17

51B

SPROCKET ASSY.

SPROCKET - (7T) Upper and lower shafts

2шт.

PIN - 3/16" x 2" cotter (132-99)

2шт.

KEY - "A" Woodruff (126-21)

2шт.

18

F90306

BEARING ASSY

BEARING - tailings elevator (Lower head)

1шт.

19

O4233CS

COLLAR

1шт.

20

B18282

FLANGE

- for use with F88402

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

21

F88401

BODY - elevator, with upper head

1шт.

22

F88402

LOWER HEAD - (Replaced by F88778 when stock is exh.)

1шт.

F88778

LOWER HEAD - (Replaces F88402)

1шт.

23

O313CS

HANDLE - latch

1шт.

RIVET - 3/16" x 5/8" rhd. (45-310)

1шт.

24

O314CS

BRACKET -latch handle

2шт.

RIVET - 3/16" x 5/16" W.B. (49-35)

4шт.

BOLT - 1/4" x 5/8" rhd. short sq. nk. (12-410)

9шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410)

2шт.

NUT - 1/4" N.C. hex. (25-104) Lockwasher (92-4)

11шт.

25

O316CS

SPRING - latch handle

1шт.

26

O315CS

HOOK - latch, lower head cover

1шт.

27

F78417

COVER - lower head (Replaced by F88405 when stock is exh.)

1шт.

F88405

COVER - lower head (Rice, #8334601 and after)

1шт.

28

O309CS

PIN - hinge

1шт.
