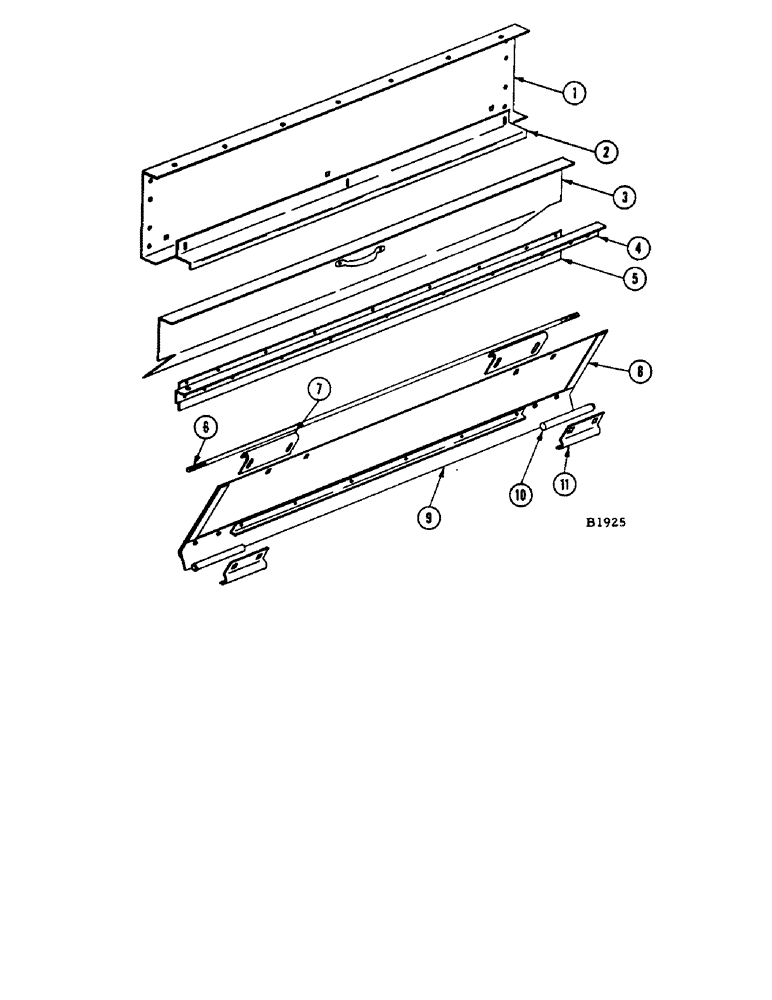

Запчасти Case IH 1060 (144) - CONVEYOR RAKE, CONCAVE ACCESS SECTION (66) - THRESHING

1

F7888

ANGLE - cross, front

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

7шт.

2

F9828

PLATE - for front cross angle

1шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Wing nut (129-404)

3шт.

3

F78028

CROSS SHEET - front

1шт.

HANDLE - #479 Stanley door (228-3)

1шт.

RIVET - 3/16" x 5/16" W.B. hd. (49-35)

2шт.

4

F7889

ANGLE - lower cross, front

1шт.

5

F7891

WIPER - (Rubber) Feeder spout

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

9шт.

6

F7807

TIE ROD - front cylinder post

1шт.

NUT - #29 E180 ESNA (131-9)

2шт.

7

F12569

CLAMP

2шт.

8

F86046

DOOR - boot

1шт.

9

F11887

SEAL - boot

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) Wing nut (129-409)

4шт.

10

F11889

SHAFT - pivot, boot door

2шт.

11

F11890

CLAMP - pivot pin boot door

2шт.
