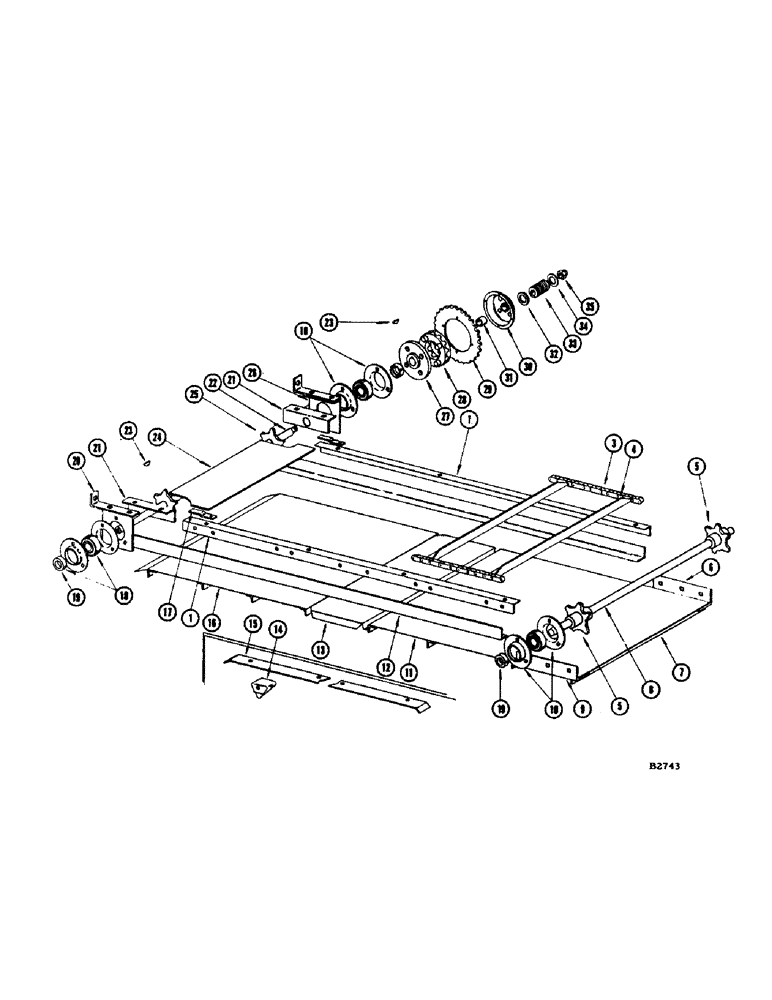

Запчасти Case IH 1060 (143A) - CONVEYOR RAKE AND DRIVE, SERIAL NUMBER 8334601 AND AFTER (66) - THRESHING

1

F11855

SUPPORT - conveyor rake chain, R.H. and L.H.

2шт.

2

RESERVED

1шт.

3

F88194

RAKE - conveyor

1шт.

4

F14539

SLAT - rake

17шт.

F88150

LINK - R.H. attaching

17шт.

F88151

LINK - L.H. attaching

17шт.

F10673

LINK

- offset, CA550

1шт.

F54319

LINK

- connector CA550 (Replaces F10675 when stocks are exhausted

1шт.

F10818

LINK

- roller CA550

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut 131-5

34шт.

111-331

BOLT

- 3/8" x 3/4" rhd. sht. sq. nk. N.F., nut and L.W.

34шт.

5

F88193

SPROCKET - (7T) Front, R.H. and L.H.

2шт.

6

F11851

ANGLE - boot mounting, L.H.

1шт.

7

F11852

ANGLE - cross cylinder post

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

8

F14567

SHAFT - front

1шт.

9

F11850

ANGLE - boot mounting, R.H.

1шт.

10

B18282

FLANGE

- for 3074CSA brg.

8шт.

11

F88394

FLOOR - rake, front

1шт.

12

NSS

NOT SOLD SEPARAT

ANGLE - conveyor rake, R.H.

1шт.

ANGLE - conveyor rake, L.H.

1шт.

13

F88397

FLOOR - access section (Regular) See F78921

1шт.

F78921

FLOOR - access section (Special-perforated) Not shown

1шт.

14

F1368

DEFLECTOR - grain

2шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) Lockwasher (92-5)

2шт.

15

F11856

STRIP

WEAR STRIP - for F11855 (Ref. 1)

2шт.

16

F88396

FLOOR - conveyor, rear

1шт.

SCREW - 1/4" x 5/8" fl. hd. N.C. mach (73-410) nut (25-104)

6шт.

SCREW - 1/4" x 3/4" fl. hd. N.C. mach. (73-412) nut (25-104)

8шт.

17

F13699

SUPPORT CLIP - conveyor rake shaft shield

2шт.

18

3074CSA

BALL BEARING

- front and rear shaft

4шт.

19

F62108

COLLAR

1шт.

20

F7811

LOCKSTRAP - tightener

2шт.

21

F10309

SHIELD - dust, rear rake shaft

2шт.

22

F12196

SHAFT - rear conveyor rake

1шт.

23

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

24

F10864

COVER - rear shaft

1шт.

25

F86033

SPROCKET - (7T) Conveyor rake rear shaft

2шт.

PIN - 1/4" x 1-1/2" driv loc tye A-3 (135-359)

2шт.

26

F7812

BRACKET - tightener

2шт.

27

143CS

PLATE

- clutch

1шт.

28

T16665

RING - clutch

2шт.

29

F14166

SPROCKET ASSY.

SPROCKET - (52T) Conveyor rake drive

1шт.

30

F87837

HUB AND BEARING

1шт.

31

F12197

BEARING

1шт.

32

O3885A

WASHER

- (1-1/2" O.D. x 29/32" I.D. #12 ga.) Jump clutch spring, inner

1шт.

33

O1090CH

SPRING

- jump clutch

1шт.

34

A26376

WASHER

- (1-9/16" O.D. x 25/32" I.D. #12 ga.) Jump clutch spring, outer

1шт.

35

131-37

LOCK NUT,3/4"-16

NUT - NF Esna 3/4"-16

1шт.

F14167

CHAIN - (NSS) See chain page-drives conveyor rake, strawwalker and tailings auger

1шт.
