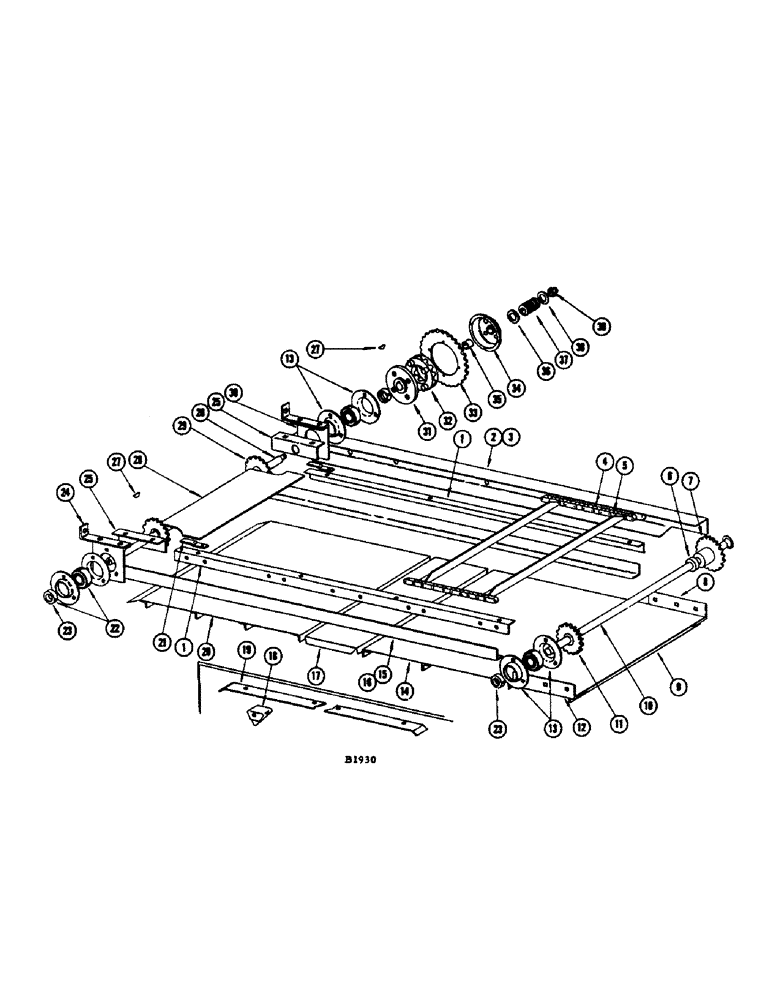

Запчасти Case IH 1060 (142) - CONVEYOR RAKE AND DRIVE, BEFORE SERIAL NUMBER 8334601 (66) - THRESHING

1

F11855

SUPPORT - conveyor rake chain, R.H. and L.H.

2шт.

2

F86026

SHIELD - conveyor rake chain, L.H.

1шт.

3

F86027

SHIELD - conveyor rake chain, R.H.

1шт.

4

F88187

RAKE - conveyor (Replaced by F88194 when exh.)

1шт.

F88194

RAKE - conveyor (Replaces F88187 when exh.)

1шт.

5

F14539

SLAT - rake

17шт.

Repairs for slats or attaching links requires P/N F14539, F88150 and F88151.

1шт.

F88150

LINK - R.H. attaching

17шт.

Repairs for slats or attaching links requires P/N F14539, F88150 and F88151.

1шт.

F88151

LINK - L.H. attaching

17шт.

Repairs for slats or attaching links requires P/N F14539, F88150 and F88151.

1шт.

F10673

LINK

- offset CA550

1шт.

F10674

LINK

- connector CA550 (Replaced by F54319 when stock is exhausted)

1шт.

F10818

LINK

- roller CA550

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex, nut 131-5

34шт.

111-331

BOLT

- 3/8" x 3/4" rhd. sht. nk. N.F., nut and L.W.

34шт.

6

F10357

COLLAR - for F86031 sprocket

1шт.

7

F86031

SPROCKET - (7T) conveyor rake, front L.H.

1шт.

O906B

WASHER

- (Between L.H. bearing and ref. 7)

1шт.

8

F11851

ANGLE - boot mounting, L.H.

1шт.

9

F11852

ANGLE - cross cylinder post

1шт.

10

F7808

SHAFT - front conveyor rake

1шт.

11

F86032

SPROCKET - (7T) conveyor rake, front R.H.

1шт.

PIN - 1/4" x 1-1/2" driv loc type A-3 (135-359)

2шт.

12

F11850

ANGLE - boot mounting, R.H.

1шт.

13

B18282

FLANGE

- for ref. 22

8шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

12шт.

14

F86025

FLOOR - rake, front (Replaced by F88394 when stock is exh.)

1шт.

15

NSS

NOT SOLD SEPARAT

ANGLE - conveyor rake, L.H.

1шт.

16

NSS

NOT SOLD SEPARAT

ANGLE - conveyor rake, R.H.

1шт.

17

F77977

FLOOR - access section (Regular) Replaced by F88397 when stock is exhausted

1шт.

F78921

FLOOR - conveyor, access section (Special-perforated)

1шт.

18

F1368

DEFLECTOR - grain

2шт.

19

F11856

STRIP

WEAR STRIP - for F11855 support

2шт.

20

F76941

FLOOR - rear (Replaced by F88396 when stock is exhausted)

1шт.

SCREW - 1/4" x 5/8" fl. hd. N.C. mach. (73-410) nut (25-104)

6шт.

SCREW - 1/4" x 3/4" fl. hd. N.C. mach. (73-412) nut (25-104)

8шт.

21

F11857

SUPPORT CLIP - (Replaced by F13699 when stock is exhausted)

2шт.

22

3074CSA

BALL BEARING

- front and rear shaft

4шт.

23

F62018

COLLAR

1шт.

24

F7811

LOCK STRAP - tightener

2шт.

25

F10309

SHIELD - dust, rear rake shaft

2шт.

26

F12196

SHAFT - rear conveyor rake

1шт.

27

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

2шт.

28

F10864

COVER - rear shaft

1шт.

29

F86033

SPROCKET - (7T) conveyor rake rear shaft

2шт.

PIN - 1/4" x 1-1/2" driv. loc type A-3 (135-359)

2шт.

30

F7812

BRACKET - tightener

2шт.

31

143CS

PLATE

- clutch

1шт.

32

T16665

RING - clutch

2шт.

33

F14166

SPROCKET ASSY.

SPROCKET - (52T) conveyor rake drive (Replaces F86221)

1шт.

BOLT - 5/16" x 7/8" hex. (14-514) nut (25-115)

4шт.

34

F87837

HUB AND BEARING - (Replaces F86221)

1шт.

35

F12197

BEARING

1шт.

F86221

SPROCKET - (30T) Replaced by ref. 33 and 34

1шт.

F12197

BEARING

1шт.

36

O3885A

WASHER

- (1-1/2" O.D. x 29/32" I.D. #12 ga.) inner

1шт.

37

O1090CH

SPRING

- jump clutch

1шт.

38

A26376

WASHER

- (1-9/16" O.D. x 25/32" I.D. #12 ga.) outer

1шт.

39

131-37

LOCK NUT,3/4"-16

NUT - NF Esna 3/4"-16

1шт.

F10754

CHAIN - (See chain page) Used with F86221

1шт.

F14167

CHAIN - (See chain page) Used with F14166

1шт.
