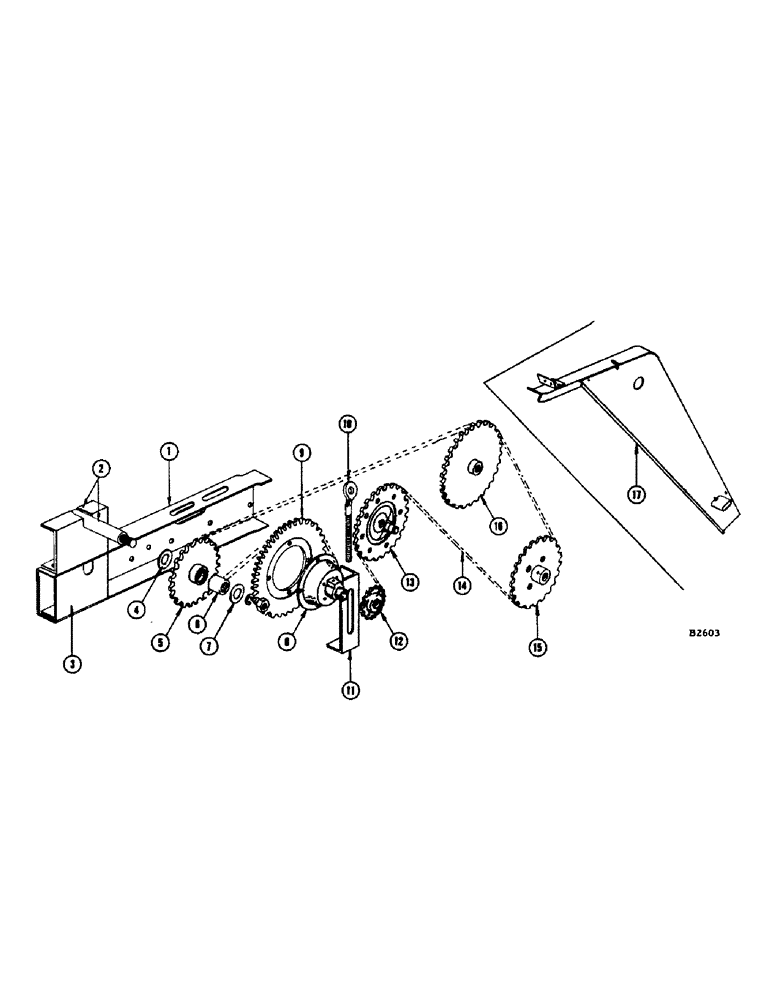

Запчасти Case IH 1060 (140) - TIGHTENER, CONVEYOR RAKE DRIVE, STRAWWALKER AND TAILINGS DRIVE, SERIAL NUMBER 8311400 AND AFTER (66) - THRESHING

1

NSS

NOT SOLD SEPARAT

BRACKET - support, rear conveyor rake, L.H.

1шт.

F14490

SHIM - between F11917 and F11918

1шт.

2

F86055

SHAFT - includes bracket

1шт.

BOLT - 7/16" x 1" N.F. hex. (14-716) nut (25-117)

2шт.

3

F11918

BRACKET

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) nut (25-118)

2шт.

4

F62073

WASHER

- tightener shaft

1шт.

5

F78411

SPROCKET ASSY.

SPROCKET - (36T) tightener

1шт.

6

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

7

O642HT

WASHER - tightener shaft

1шт.

8

F87837

HUB AND BUSHING

1шт.

F12197

BUSHING

1шт.

9

F14166

SPROCKET ASSY.

SPROCKET - (52T) conveyor rake drive

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

4шт.

10

F11923

ROD - adjusting

1шт.

11

F11922

BRACKET

- idler

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

12

F40411

COLLAR CLAMP

SPROCKET - (9T) idler

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) elastic stop nut (131-10) L.W. (92-10)

1шт.

WASHER - 5/8" std. (195-41)

2шт.

13

F86063

SPROCKET ASSY.

SPROCKET - (40T) drives strawwalker and tailings elevator

1шт.

14

F14167

CHAIN - drives conveyor rake, strawwalker and tailings auger (NSS-see chain page)

1шт.

15

F79359

SPROCKET ASSY.

SPROCKET - (40T) tailings auger

1шт.

F11042

BEARING

1шт.

16

F78413

SPROCKET - (48T) strawwalker, driven

1шт.

F88431

SPROCKET - (52T) strawwalker, driven (Sorghum special)

1шт.

17

F88425

SHIELD - chain

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (113-3)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-107)

2шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

3шт.

321-17

DECAL

PATENT - (Platform cross angle)

1шт.

321-349

DECAL

"GREASE SPLINE" - (L.H. side sheet)

1шт.

321-462

DECAL

"RICE SPECIAL" - (Front of platform)

1шт.

321-653

DECAL

NAME AND ADDRESS - (Rear of seat support)

1шт.

321-662

DECAL

SAFETY - (Platform in front of ladder)

1шт.

321-712

DECAL

FAN BELT WARNING - (R.H. side sheet near fan pulley)

1шт.

321-741

DECAL

"FOLD BACK"

1шт.

321-789

DECAL

"OIL RESERVOIR LEVEL"

1шт.

321-808

DECAL

EAGLE - (Both sides of rear hood)

2шт.

321-900

DECAL

"CASE" - (Front of grain bin)

1шт.

321-901

DECAL

"CASE" (Rear hood)

1шт.

321-925

DECAL

"SERVICE CHECK LIST" - (L.H. side of seat support)

1шт.

321-942

DECAL

"1060 COMBINE" - (Front of platform)

1шт.

321-1007

DECAL

TERMINAL BOX - cab w/out air conditioning

1шт.

321-1063

DECAL

OPERATOR'S INSTRUCTION - air conditioning

1шт.

321-1064

DECAL

TERMINAL BOX - cab w/air conditioning

1шт.

321-1251

"POWER SHAFT R.P.M." - (L.H. side sheave)

1шт.
