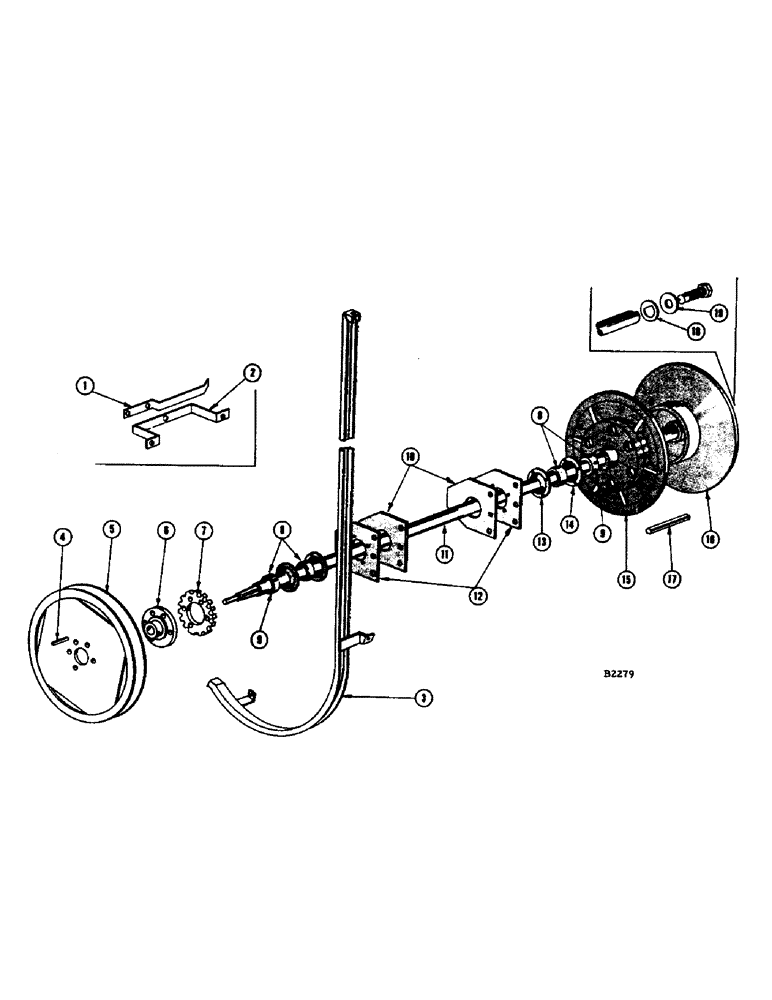

Запчасти Case IH 1060 (132) - MAIN COMBINE DRIVE SHAFT, VARIABLE SPEED CYLINDER DRIVE (66) - THRESHING

1

F11995

GUIDE - main drive belt, R.H. (Grain bin only)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)

2шт.

2

F12463

GUIDE - main combine drive belt, L.H. (Grain bin)

1шт.

3

F79750

GUIDE - main drive belt (Replaced by F87839 when stocks are depleted)

1шт.

F87839

GUIDE - main drive belt (Replaces F79750)

1шт.

4

O909CK

KEY - main drive sheave, hub

1шт.

5

F80956

SHEAVE - main combine drive

1шт.

6

F1393

HUB - main drive sheave

1шт.

NUT - 7/8" N.F. ESNA (131-17) Plain wshr. (195-49)

1шт.

7

F7849

SPROCKET - (25T)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

5шт.

8

F84032

BEARING

2шт.

9

F62107

COLLAR

1шт.

10

F8945

PLATE - cover

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (11-628) nut (25-106)

2шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (11-624) nut (25-106)

2шт.

BOLT - 3/8" x 1-1/4" hd. N.C. plow (18-620) nut (25-106)

2шт.

11

F12612

SHAFT - main drive, V.S. cylinder drive

1шт.

12

F8942

BRACKET - bearing, R.H. and L.H.

2шт.

13

F12599

FLANGE

TTE - inner

2шт.

14

F12600

FLANGETTE - outer

2шт.

BOLT - 1/2" x 1-1/4" hd. #3 N.C. plow (18-820)

4шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820)

4шт.

NUT - (25-108) L.W. (92-8)

8шт.

15

F1920

SHEAVE HALF - inner stationary, cylinder drive

1шт.

16

F1925

SHEAVE HALF - outer moveable, cylinder drive

1шт.

17

F12613

KEY - for ref. 15

1шт.

18

F12636

WASHER

- "D"

2шт.

19

F12637

WASHER

1шт.

F9935

V-BELT

"V"BELT - main combine drive (Not shown)

1шт.

F14847

V-BELT,1.25" W

Main Combine Drive, Pre-Stretched 1.25" W

1шт.
