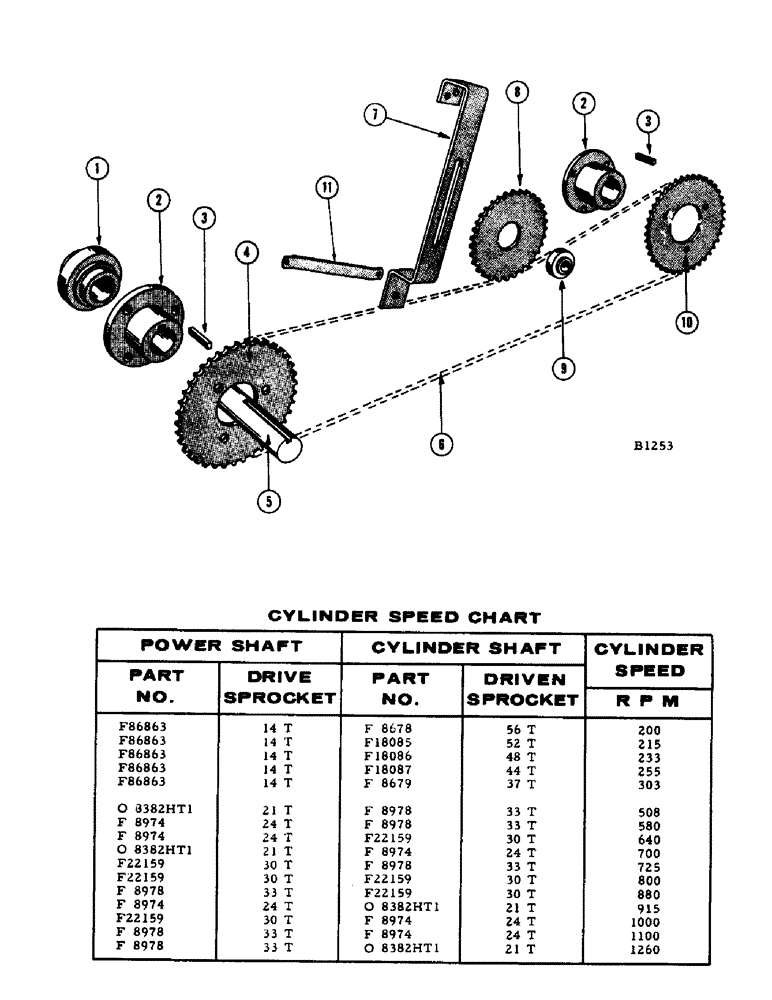

Запчасти Case IH 1060 (131A) - CYLINDER, CHAIN DRIVE ATTACHMENT (66) - THRESHING
№
Артикул
Название
Примечание
Количество
1
F84032
BEARING
- main drive shaft (Ref. only)
1шт.
F62107
COLLAR
- (Not shown)
1шт.
2
F86861
FLANGE - sprocket mounting
2шт.
BOLT - 3/8" x 1-1/2" N.F. hex. (114-203) nut (129-123)
6шт.
F12853
SPACER - (2" O.D. x 5-7/8" long) (Not shown)
2шт.
3
F12613
KEY - for ref. 2 and 5
2шт.
4
O8382HT1
SPROCKET - (21T) cylinder drive
1шт.
F8974
SPROCKET ASSY.
SPROCKET - (24T) cylinder drive
1шт.
BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)
3шт.
5
F12612
SHAFT - drive, main combine (Ref. only)
1шт.
6
F9024
X
CHAIN - cylinder drive (See chain page)
1шт.
7
F86859
BRACKET - idler (Before #8357001; Replaced by F88564 when stocks are exhausted)
1шт.
F88564
BRACKET - idler (Replaces F86859)
1шт.
BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)
2шт.
BOLT - 5/8" x 2-1/2" N.F. hex. (114-601) nut (129-127)
1шт.
WASHER - 5/8" plain (195-108)
4шт.
8
F77429
SPROCKET - (21T) idler, cylinder drive
1шт.
9
F7293
BEARING
1шт.
10
F8978
SPROCKET - (33T) cylinder drive
1шт.
F22159
SPROCKET - (30T) cylinder drive (Replaces O2918BF1)
1шт.
BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)
3шт.
11
F30001
BRACE - idler bracket (For F88564)
1шт.
BOLT - 3/8" x 1" N.F. hex (114-200) nut (129-123)
1шт.
B12509
DRAG LINK
LINK - connecting, #60 roller chain, slower speed attachment drive cylinder
1шт.
B12510
CHAIN LINK
LINK - offset, #60 roller chain, slower speed attachment drive cylinder
1шт.
F18085
SPROCKET - (52T) cylinder drive, driven, slower speed attachment chain
1шт.
F18086
SPROCKET - (48T) cylinder drive, driven, slower speed attachment chain
1шт.
F18087
SPROCKET - (44T) cylinder drive, driven, slower speed attachment chain
1шт.
F86863
SPROCKET AND HUB - (14T) cylinder drive, slower speed attachment chain
1шт.
F8678
SPROCKET - (56T) cylinder drive, driven, slower speed attachment chain
1шт.
F8679
SPROCKET - (37T) cylinder drive, driven, slower speed attachment chain
1шт.
Выбрано товаров: 31
