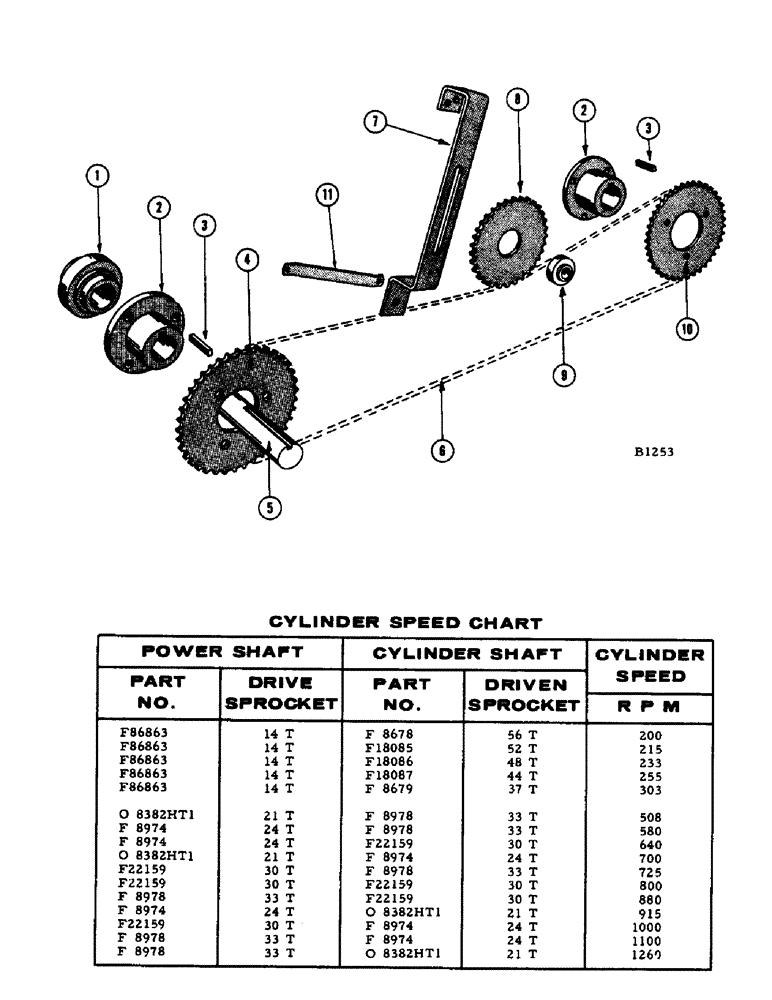

Запчасти Case IH 1060 (130) - CHAIN DRIVE CYLINDER (66) - THRESHING

1

F84032

BEARING

- main drive shaft

1шт.

F62107

COLLAR

1шт.

2

F76882

HUB - flanged, for ref. 4 and 10

2шт.

SCREW - 3/8" x 3/4" sq. hd. N.C. cup pt. set (85-612)

4шт.

NUT - 3/8" N.C. hex. jam (25-146)

4шт.

3

A26494

KEY - for ref. 2

2шт.

4

F8974

SPROCKET ASSY.

SPROCKET - (24T) Cylinder drive

1шт.

O8382HT1

SPROCKET - (21T) Cylinder drive

1шт.

5

F9859

SHAFT - main drive

1шт.

6

F9024

X

CHAIN - cylinder drive (NSS-see chain page)

1шт.

7

F86077

BRACKET - idler (Before #8357001; Replaced by F88502 when stocks are exhausted)

1шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (114-601( nut (129-127)

1шт.

WASHER - 5/8" plain (195-108)

4шт.

F88502

BRACKET - idler (Replaces F86077 when stock exh.)

1шт.

BOLT - 3/8" x 1-1/4" N.C. plow #3 hd. (18-620) nut (25-106)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (131-177)

1шт.

8

F77429

SPROCKET - (21T) Idler

1шт.

9

F7293

BEARING

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) For F7293

1шт.

WASHER - 5/8" (195-41)

5шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10)

1шт.

10

F8978

SPROCKET - (33T) Driven

1шт.

F22159

SPROCKET - (30T) Driven (Replaces O2918BF1)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

3шт.

F11693

SHAFT - cylinder, chain drive, rub bar (Not shown)

1шт.

F11692

SHAFT - cylinder, chain drive, spike tooth (Not shown)

1шт.

11

F14948

BRACE - idler bracket (For F88502)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) LW (92-6) nut (25-116)

1шт.
