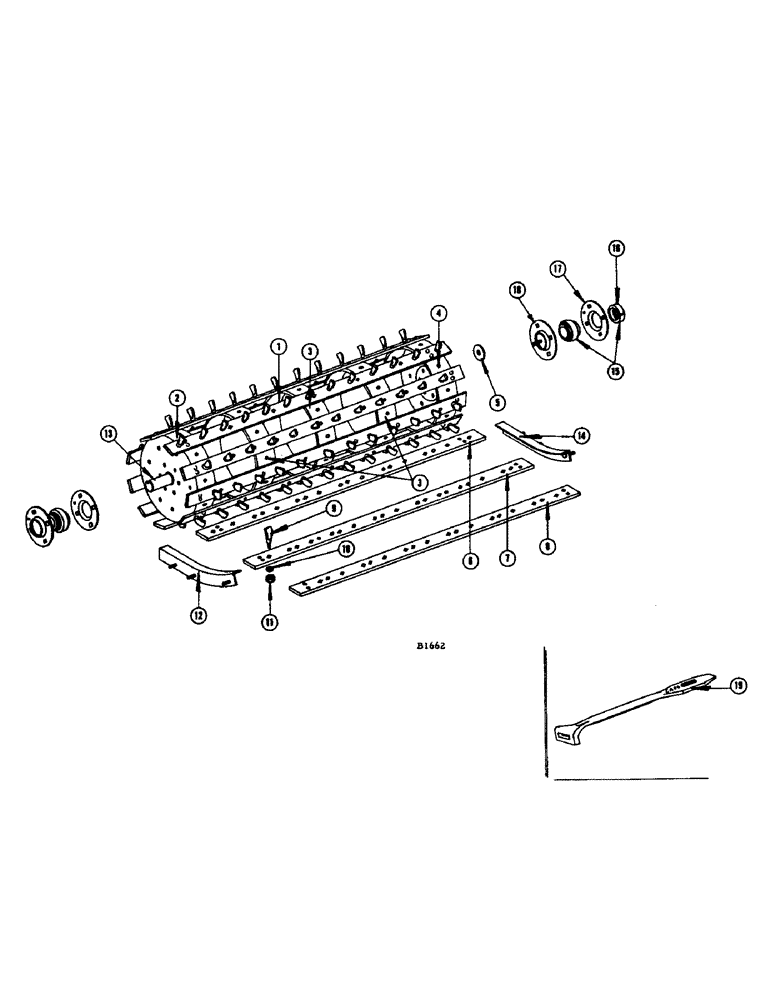

Запчасти Case IH 1060 (122) - SPIKE TOOTH CYLINDER (66) - THRESHING
№
Артикул
Название
Примечание
Количество
1
F77251
CYLINDER - spike tooth, less shaft
1шт.
2
1938CSA
HEAD - cylinder, outside, R.H. (Before #8357001) Replaced by F88775 when stocks are exh.
1шт.
F88775
HEAD - cylinder, outside R.H. (#8357001 and after)
1шт.
BOLT - 7/16" x 2-3/4" rhd. sq. nk. (111-409) nut (129-104)
1шт.
3
O3220CS
HEAD - cylinder, center (Before #8357001) Replaced by F30200 when stocks are exhausted.
3шт.
F30200
HEAD - cylinder, center (#8357001 and after)
3шт.
4
1937CSA
HEAD - cylinder, outside L.H. (Before #8357001) Replaced by F88776 when stocks are exh.
1шт.
F88776
HEAD - cylinder, outside L.H. (#8357001 and after)
1шт.
BOLT - 7/16" x 2-3/4" rhd. sq. nk. (111-409) nut (129-104)
1шт.
5
O1632TS1
WASHER - (2-1/4" O.D. x 11/32" I.D. #18 or #20 ga.) Balance
1шт.
6
F8636
BAR - cylinder, #1 less teeth (Spaces 13T)
3шт.
RIVET - 3/8" x 1-1/4" rhd. (45-620)
21шт.
7
F8637
BAR - cylinder, #2 less teeth (Spaces 14T)
3шт.
RIVET - 3/8" x 1-1/4" rhd. (45-620)
21шт.
8
F8638
BAR - cylinder, #3 less teeth (Spaces 13T)
3шт.
RIVET - 3/8" x 1-1/4" rhd. (45-620)
21шт.
9
B18066
TOOTH
- cylinder (13-F8636, 14-F8637 and 13-F8638)
120шт.
10
194-8
LOCKWASHER - for B18066
120шт.
11
25-118
NUT,1/2"-20, G5
- for B18066
120шт.
12
F77258
SHIELD - cylinder, with studs, R.H.
1шт.
NUT - 1/4" N.C. yhex. (129-101) L.W. (192-19)
3шт.
13
F12592
SHAFT - cylinder, for variable speed belt driven cylinder
1шт.
KEY - #29 Woodruff (126-48)
2шт.
F11692
SHAFT - spike tooth, used with chain driven cylinder
1шт.
KEY - #29 Woodruff (126-48)
2шт.
14
F77257
SHIELD - cylinder, with studs, L.H.
1шт.
NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)
3шт.
15
F84032
BEARING
- cylinder shaft
2шт.
16
F62107
COLLAR
1шт.
17
F12588
FLANGETTE - outer
2шт.
18
F12587
FLANGETTE - inner
2шт.
19
B18287
STRAIGHTENER - tooth
1шт.
F88499
STRIPPER - cylinder (See ref. 5, page 112)
1шт.
F88500
SHROUD - stripper (See ref. 6. page 112)
1шт.
