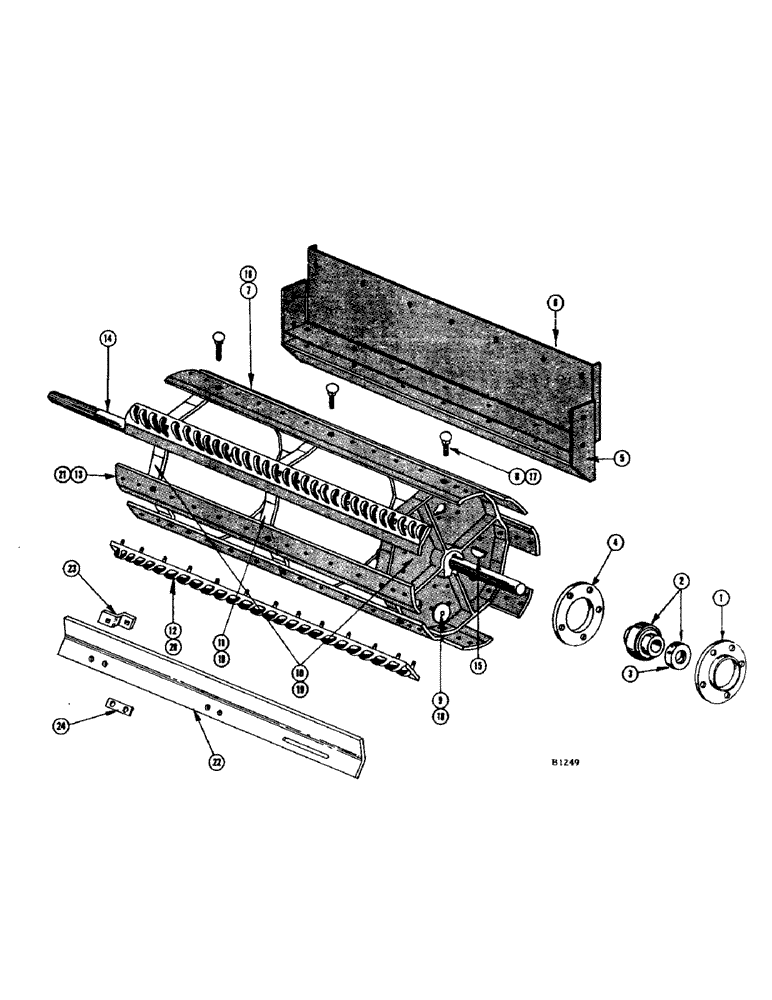

Запчасти Case IH 1060 (120) - RUB BAR CYLINDER (66) - THRESHING

1

F12588

FLANGETTE - outer

2шт.

BOLT - 1/2" x 6" N.F. hex. (14-896)

2шт.

BOLT - 1/2" x 1" N.F.(14-816)

8шт.

NUT - 1/2" (25-118) Lockwasher 1/2" SAE std. (92-8)

10шт.

2

F84032

BEARING

- for ref. 9

2шт.

3

F62107

COLLAR

1шт.

4

F12587

FLANGETTE - inner

2шт.

5

F88499

STRIPPER - cylinder (Replaces F76934)

1шт.

F76934

STRIPPER - cylinder (Replaced by F88499 when stock is exh.)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

7шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Gripco nut (131-365)

4шт.

6

F88500

SHROUD - stripper (Replaces F77579)

1шт.

F77579

SHROUD - stripper (Replaces by F88500 when stock is exh.)

1шт.

7

F78257

CYLINDER - rub bar, less shaft (Before #8334601)

1шт.

8

F5340

BOLT - rub bar support

24шт.

NUT - 5/8" N.F. hex. (25-1110) Lockwasher (92-10)

24шт.

9

O1632TS1

WASHER - (2-1/4" O.D. x 11/32" I.D. #18 ga.) Balance

1шт.

SCREW - 5/16" x 1-1/4" N.C. mach (75-520) nut (25-105)

2шт.

10

F79128

HEAD - cylinder, R.H. and L.H. (Before #8334601)

2шт.

SCREW - 5/16" x 1-1/4" N.C. mach. (75-520) nut (25-105)

4шт.

BOLT - 7/16" x 3" N.F. hex. (114-306) nut (129-124)

4шт.

11

F79128

HEAD - cylinder, center (Before #8334601)

1шт.

12

F77651

SET OF CYLINDER RUB BARS - (4-R.H. and 4-L.H. with 96 (25-107) nut and 96 (92-7) Lockwashers

1шт.

13

F7690

SUPPORT - rub bar

8шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6) Pl. wshr. (195-25)

24шт.

14

F12591

SHAFT - cylinder V.S. drive (Rub bar)

1шт.

F11693

SHAFT - rub bar, used with chain driven cylinder

1шт.

KEY - #29 Woodruff (126-48)

2шт.

15

F10717

KEY - for ref. 14

2шт.

16

F88176

CYLINDER - rub bar, less shaft (#8334601 and after)

1шт.

17

F5340

BOLT - rub bar support

24шт.

NUT - 5/8" N.F. hex. (25-1110) Lockwasher (92-10)

24шт.

18

O1632TS1

WASHER - (2-1/4" O.D. x 11/32" I.D. #18 ga.) Balance

1шт.

SCREW - 5/16" x 1-1/4" N.C. mach. (75-520) nut (25-105)

8шт.

19

F88182

HEAD - cylinder, R.H., L.H. and center (#8334601 and after)

3шт.

20

F88185

SET OF CYLINDER RUB BARS (4-R.H. and 4-L.H.) With 96 (25-107) nut and 96 (92-7) Lockwashers

1шт.

21

F7690

SUPPORT - rub bar

8шт.

NUT - 3/8" N.F. hex. (25-116) L.W. (92-6) Pl. wshr. (195-25)

24шт.

22

F10676

PLATE - filler (For use with cornhead)

8шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103), filler plates

24шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (111-330) nut (129-103), filler plates

24шт.

LOCKWASHER - 3/8" (192-21), filler plates

48шт.

23

F10677

CLAMP - filler plate

24шт.

24

F10678

STRAP - washer, filler plate

8шт.
