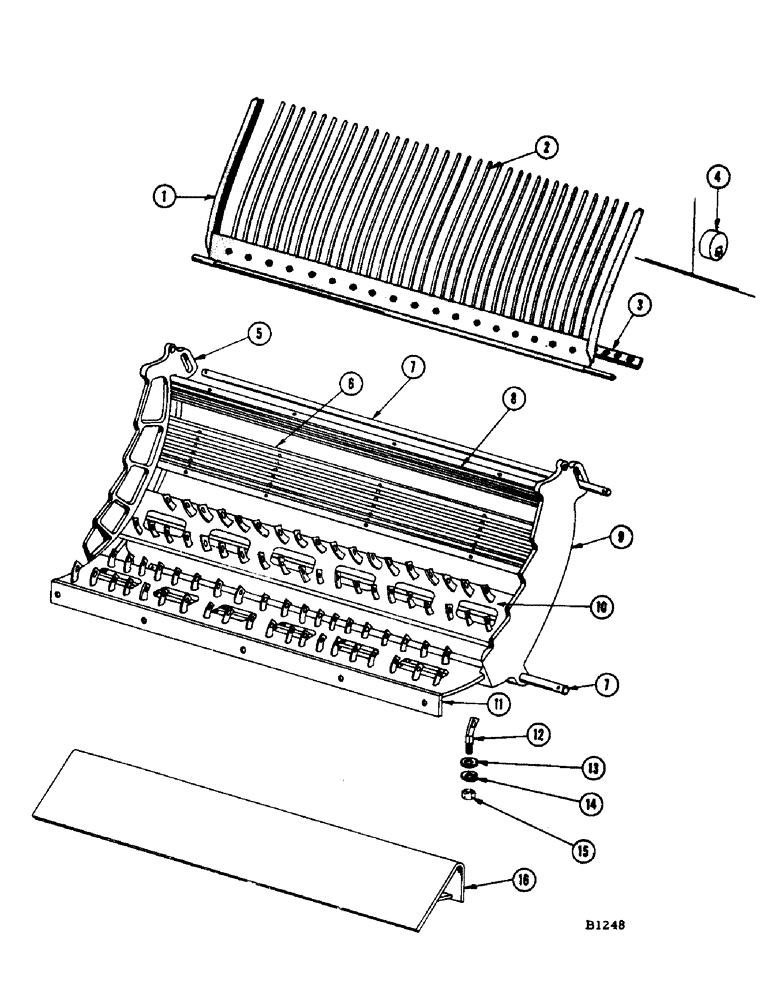

Запчасти Case IH 1060 (118) - SPIKE TOOTH CYLINDER, CONCAVES, TINES AND REMOVABLE FEED PLATE (66) - THRESHING

F88505

TINE ASSEMBLY - (#8357001 and after)

1шт.

F13740

TINE

- grate (#8357001 and after)

26шт.

F14954

STRIP - bolting (#8357001 and after)

1шт.

1

F79348

TINE ASSEMBLY - (Before #8357001)

1шт.

2

F11067

TINE - grate (Before #8357001)

26шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104) And washer (195-18)

26шт.

3

F7687

STRIP - bolting (Before #8357001)

1шт.

4

F1327

ECCENTRIC - tine assembly guide

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (11-628) nut (25-106)

2шт.

5

F1394

CIRCLE - concave, R.H.

1шт.

6

F77264

CONCAVE - open grate (2 used on rice machines) See ref. 8

1шт.

7

F11028

SHAFT - front and rear

2шт.

8

F86546

CONCAVE - open grate, rear (See ref. 6)

1шт.

9

F1395

CIRCLE - concave, L.H.

1шт.

10

F86547

CONCAVE

1шт.

TOOTH - concave (See ref. 12)

39шт.

195-33

WASHER,1/2"

- plain, for B18066 (See ref. 13) 1/2"

39шт.

194-8

LOCKWASHER - for B18066 (See ref. 14)

39шт.

25-118

NUT,1/2"-20, G5

- for B18066 (See ref. 15)

39шт.

11

F86552

CONCAVE

- front

1шт.

12

B18066

TOOTH

- concave

39шт.

13

195-33

WASHER,1/2"

- plain 1/2"

39шт.

14

194-8

LOCKWASHER - for B18066

39шт.

15

25-118

NUT,1/2"-20, G5

- for B18066

39шт.

16

F86219

PLATE - feed (Regular)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

5шт.

F8648

CONCAVE - rear, less teeth (See F77266), clover and alfalfa for spike cylinder

1шт.

F8649

CONCAVE - blank, clover and alfalfa for spike tooth cylinder

1шт.

F77266

CONCAVE - rear, with 4 rows of teeth, clover and alfalfa for spike cylinder

1шт.

F77267

CONCAVE - front, with 4 rows of teeth, clover and alfalfa for spike cylinder

1шт.

F77268

CONCAVE - front, less teeth (See F77267), clover and alfalfa for spike cylinder

1шт.

25-118

NUT,1/2"-20, G5

- tooth (78-F77266 and 78-F77267), clover and alfalfa concaves for spike tooth cylinder

1шт.

194-8

LOCKWASHER - tooth (78-F77266 and F77267), clover and alfalfa concaves for spike cylinder

156шт.

B18068

TOOTH - concave (78-F77266 and F77267), clover and alfalfa for spike cylinder

156шт.
