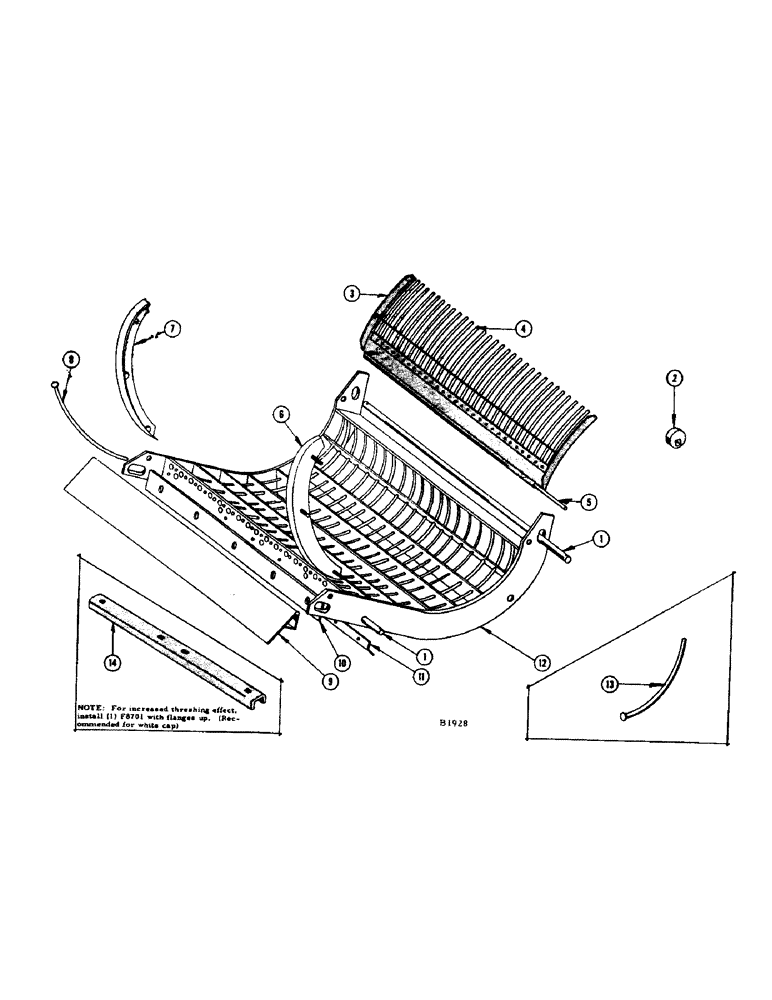

Запчасти Case IH 1060 (116) - RUB BAR CYLINDER, CONCAVE, TINES AND REMOVABLE FEED PLATE (66) - THRESHING

1

F11028

SHAFT - front and rear

2шт.

2

F1327

ECCENTRIC - tine assembly guide

2шт.

BOLT - 3/8" x 1-3/4" rhd. sq. nk. (11-628) nut (25-106)

2шт.

F88505

TINE ASSEMBLY - (8357001 and after)

1шт.

F13740

TINE

- grate (#8357001 and after)

26шт.

3

F79348

TINE ASSEMBLY - (Before #8357001)

1шт.

4

F11067

TINE - grate (Before #8357001)

26шт.

BOLT - 1/4" x 3/4" N.C. rhd. sq. nk. (11-412) nut (25-104)

26шт.

WASHER - 1/4" plain (195-18)

26шт.

5

F7687

STRIP - bolting (Before #8357001)

1шт.

6

F76889

SHIELD - cylinder, with studs, L.H. (Before #8334601)

1шт.

NUT - 1/4" N.C. hex. (25-104) Lockwasher (92-4)

3шт.

7

F76890

SHIELD - cylinder, with studs, R.H. (Before #8334601)

1шт.

NUT - 1/4" N.C. hex. (25-104) Lockwasher (92-4)

3шт.

F13677

SCREW

SHIELD - cylinder, R.H. and L.H. without studs (#8334601 and after)

2шт.

SCREW - 1/4" x 5/8" tr. hd. N.C. mach. (77-410)

6шт.

NUT - 1/4" N.C. hex. (25-104) Lockwasher (92-4)

6шт.

8

F10164

ROD

- concave (Before #8357001)

25шт.

F14063

ROD - concave (#8357001 and after)

25шт.

9

F79888

PLATE - feed (Regular)

1шт.

10

F7677

WEAR PLATE

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) Flex loc nut (131-528)

5шт.

WASHER - 3/8" plain (195-25)

5шт.

11

F86038

EXTENSION - concave deflector

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Lockwasher (92-5)

5шт.

12

F86037

CONCAVE - rub bar cylinder (Before #8357001)

1шт.

F88507

CONCAVE - rub bar cylinder (#8357001 and after)

1шт.

13

F10246

ROD - short concave, attachment

25шт.

14

F8701

PLATE - concave filler (Special for beans), short rod attachment

4шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (11-520) nut (25-105), short concave rod attachment

16шт.

F62051

WASHER

- (1-1/2" O.D. x 13/32" I.D. #10 or #12 ga.) For bolts of F8701 plate (Not shown), short concave rod attachment

16шт.

F91848

RASP BAR - concave filler (Magnetic)

3шт.

F54309

COVER - tine, grate attachment before, Start Serial: 8357001

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115), grate tine cover attachment before, Start Serial: 8357001

2шт.

F30148

COVER - tine, grate attachment 83570001 and, Start Serial: after

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-342), grate tine cover attachment 83570001 and, Start Serial: after

2шт.

NUT - 3/8" N.C. ESNA #21NE-066 (131-52), grate tine cover attachment 83570001 and, Start Serial: after

2шт.

WASHER - 3/8" SAE std., grate tine cover attachment 83570001 and, Start Serial: after

2шт.
