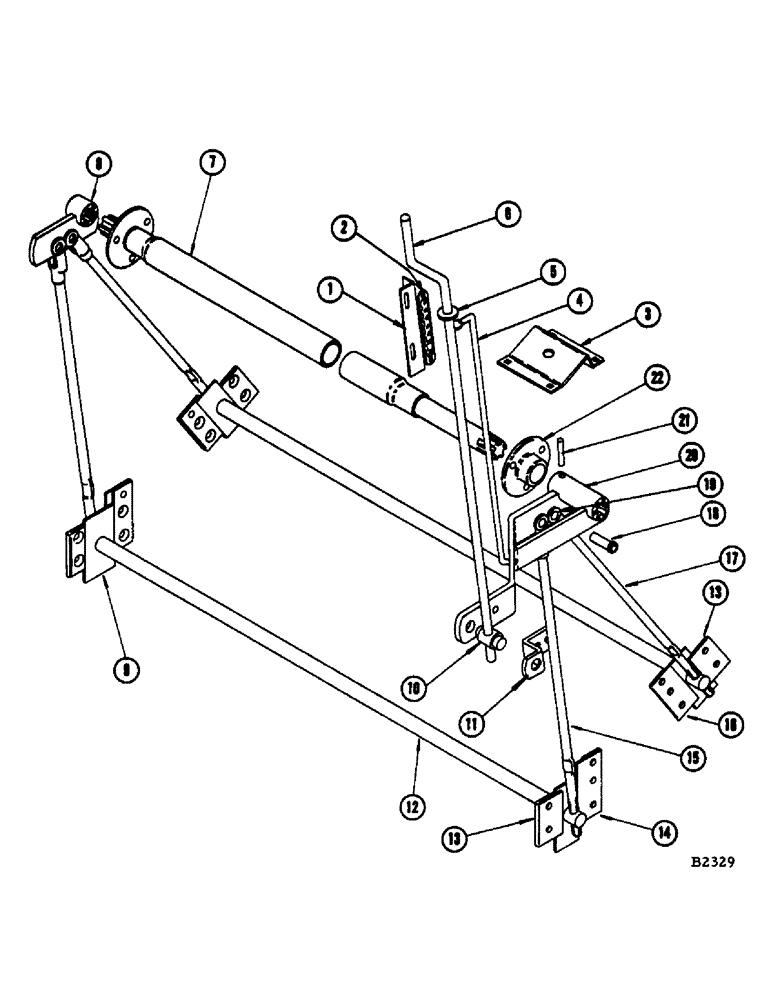

Запчасти Case IH 1060 (112) - CONCAVE ADJUSTING LEVER AND LINKAGE (66) - THRESHING

1

F13038

BRACKET - concave gauge plate

1шт.

2

F12119

GAUGE - concave clearance

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201)

2шт.

NUT - 1/4"-20 Tinnerman (131-120) nut (129-101) And L.W. (192-19) Plain wshr. (195-518)

1шт.

3

F13032

BEARING - concave adjusting crank

1шт.

BOLT - 1/4" x 5/8" rhd. short sq. nk. (12-410) nut (25-104)

4шт.

4

F13034

INDICATOR - concave adjustment

1шт.

PIN - 1/8" x 1/2" cotter (132-44)

2шт.

5

B18080

WASHER

- (1-1/4" O.D. x 21/32" I.D.) For ref. 6

1шт.

6

F13062

SCREW

CRANK - concave adjusting

1шт.

HAIRPIN - 1/4" x 1" cotter (136-160)

2шт.

7

F76933

SHAFT - pivot, concave adjusting

1шт.

8

F76944

ARM - R.H. concave adjusting (Replaces by F87813)

1шт.

F87813

ARM - R.H. concave adjusting (Replaces F76944 when stocks are exhausted)

1шт.

ROLL PIN - 1/4" x 1-1/2" (138-138)

1шт.

9

O3780CS

SHIELD - concave slot

4шт.

10

F6428

BLOCK - lower pivot

1шт.

PIN - 1/4" x 1" cotter (132-146)

1шт.

11

F6429

BRACKET - supports, concave adjusting

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-620) nut (25-116)

2шт.

12

F11028

SHAFT - front and rear

2шт.

13

O3772CS

GUIDE - shield, concave shaft

4шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

8шт.

14

F8218

GUIDE - shield, front concave shaft (Rub bar cylinder)

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

O3770CS

GUIDE - shield, front concave shaft (Spike tooth cylinder) See F8218

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

SCREW - 7/16" x 1-1/2" N.C. sq. hd. oval pt. set (181-461) And jam nut (25-147)

4шт.

15

F11032

ROD - (25-1/2") front concave adjusting

2шт.

NUT - 1/2" N.F. hex. (25-118)

2шт.

NUT - 1/2" N.F. hex. jam (25-158)

6шт.

16

F8217

GUIDE - shield, rear concave shaft (Rub bar cylinder)

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

O3771CS

GUIDE - shield, rear concave shaft (Spike tooth cylinder) See F8217

2шт.

BOLT - 3/8" x 1" #3 hd. N.C. plow (18-616) nut (25-106)

4шт.

SCREW - 7/16" x 1-1/2" N.C. sq. hd. oval pt. set (181-461) and jam nut (25-147)

4шт.

17

F11033

ROD - (24") Rear concave adjusting

2шт.

NUT - 1/2" N.F. hex. (25-118)

2шт.

NUT - 1/2" N.F. HEX. JAM (25-158)

6шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, concave adjusting rods

4шт.

PIN - 1/8" x 3/4" cotter (132-46)

4шт.

19

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - concave adjusting rods

4шт.

20

F87003

ARM - L.H. concave adjusting

1шт.

21

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

22

245CS

BEARING - pivot shaft, concave adjusting

2шт.

FITTING - 1/8" str. (219-1)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

6шт.
