(110[2]) - TIGHTENER, LOWER ROLLER SHAFT

Запчасти Case IH 1060 (110[2]) - TIGHTENER, LOWER ROLLER SHAFT (60) - PRODUCT FEEDING

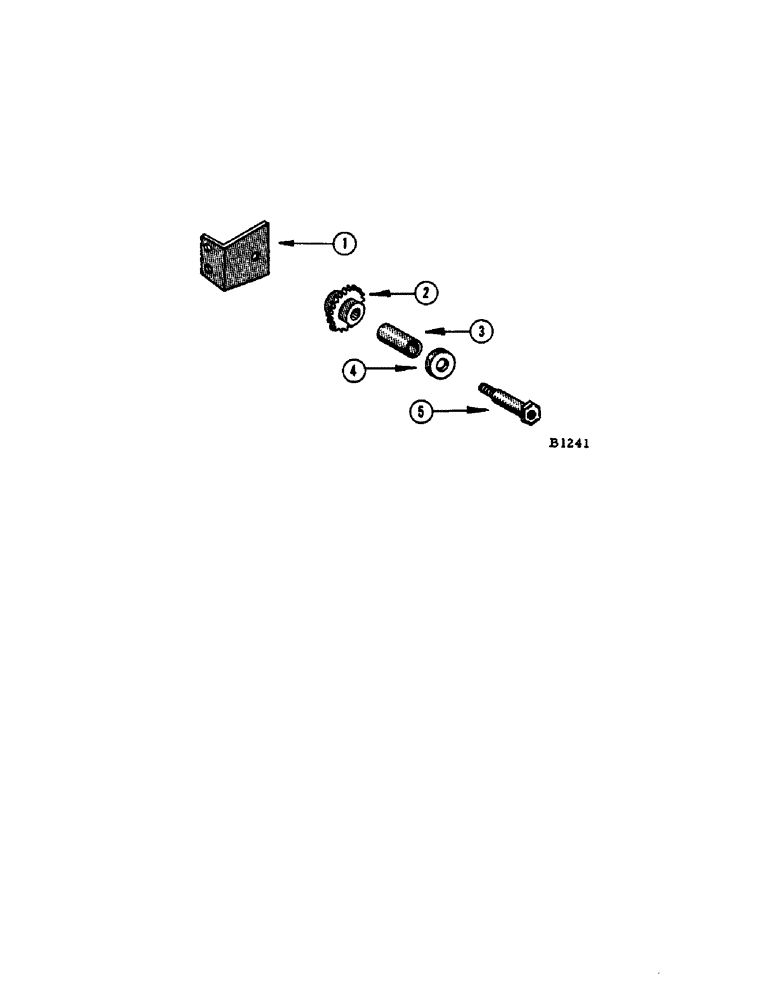

Схема запчастей Case IH 1060 - (110[2]) - TIGHTENER, LOWER ROLLER SHAFT (60) - PRODUCT FEEDING
5
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F12289

BRACKET - tightener, lower roller drive chain

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) nut (129-123)

2шт.

2

F91595

SPROCKET - (14T) Tightener

1шт.

3

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

4

O236CH

WASHER - (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) For tightener stud

2шт.

FITTING - 1/8" str. (219-1)

1шт.

NUT - 5/8" N.F. hex. (129-127) L.W. (192-25)

2шт.

Выбрано товаров: 7
