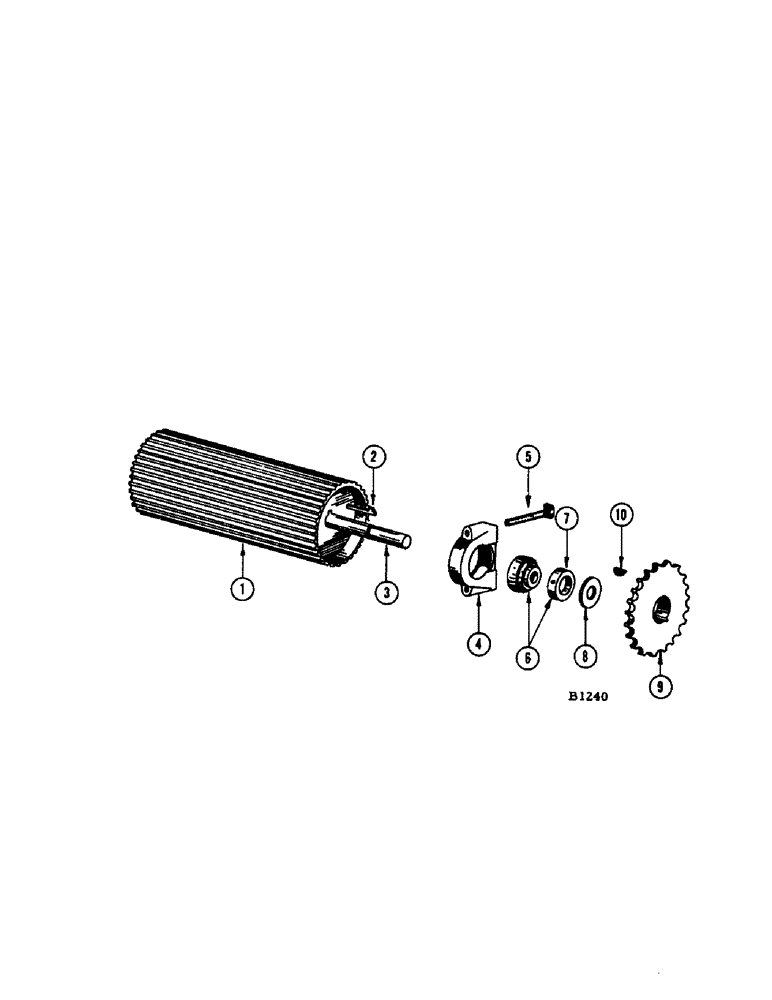

Запчасти Case IH 1060 (110[1]) - LOWER ROLLER (60) - PRODUCT FEEDING

1

F77121

ROLLER- lower, grooved

1шт.

2

1125CSA

KEY - gib, roller to lower shaft

2шт.

3

F8427

SHAFT - (49-1/8" long) lower roller

1шт.

PIN - 1/4" x 2" cotter (132-154)

1шт.

4

F6826

HOUSING - for ref. 6

2шт.

NUT - (25-108) L.W. (92-8)

4шт.

5

18-824

BOLT - 1/2" x 1-1/2" #3 N.C. plow

4шт.

6

3073BA

BEARING - lower shaft

2шт.

7

O4524B

COLLAR

1шт.

8

T25644

WASHER

- 2" O.D. x 1-13/32" I.D. #12 ga. (Lower shaft)

1шт.

9

F79008

SPROCKET - (30T) Lower roll drive

1шт.

PIN - 1/2" x 2-1/2" cotter (132-157)

1шт.

10

129-29

KEY - "C" Woodruff

1шт.

F8458

X

CHAIN - extension, lower roll drive (See chain page)

1шт.
