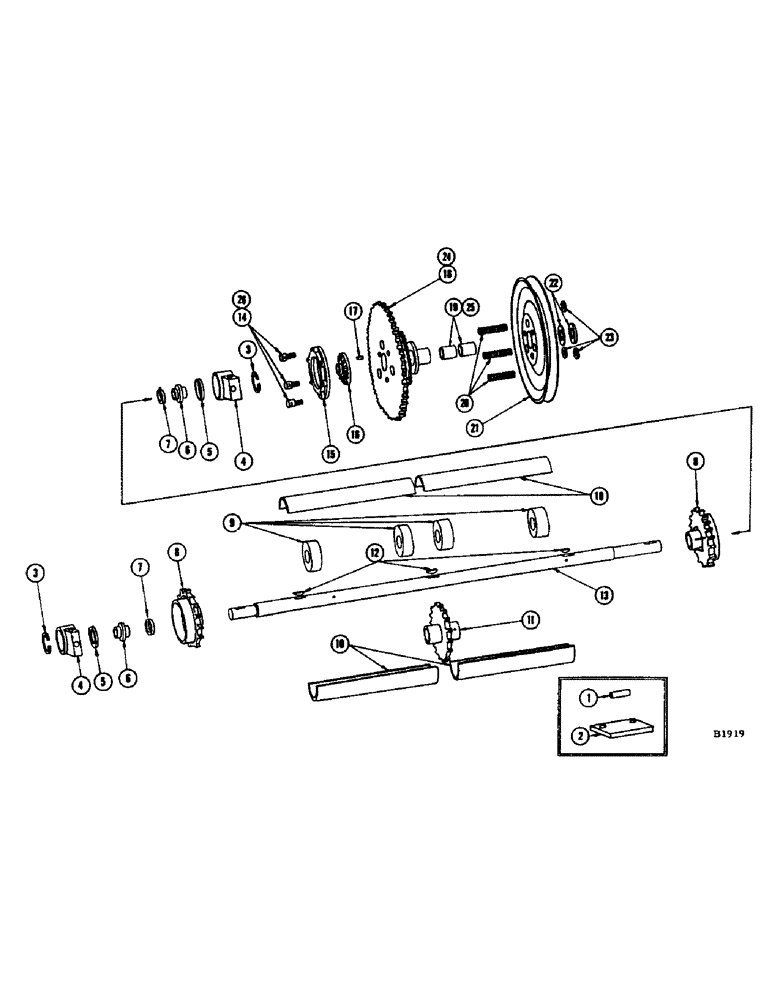

Запчасти Case IH 1060 (104) - FEED RAKE UPPER SHAFT (60) - PRODUCT FEEDING

1

O101CW

SPACER - for bolts of ref. 2

6шт.

2

F11495

SHIELD - upper feed rake chain

3шт.

BOLT - 3/8" x 1-3/4" N.F. hex. (14-628) nut (25-116)

6шт.

WASHER - 3/8" plain (95-6) L.W. (92-6)

6шт.

3

F11296

SNAP RING,#300, Ext

Ring, Snap, , for ref. 4 #300, Ext

2шт.

4

F86049

GUIDE

BLOCK - header pivot (Exhaust then use F88589)

2шт.

F88589

GUIDE

BLOCK - header pivot (Replaces F86049)

2шт.

FITTING - grease (219-36)

2шт.

5

F12425

SEAL - grease

2шт.

6

F86574

BEARING

2шт.

7

O4524B

COLLAR

1шт.

8

F1347

SPROCKET ASSY.

SPROCKET - (15T) outer

2шт.

PIN - 3/16" x 2-3/4" cotter (132-103)

2шт.

9

F4081

SUPPORT - shield

4шт.

SCREW - #12 x 1" rhd. slotted wood (186-71)

8шт.

10

F11802

SHIELD - anti-wrap

4шт.

11

F1346

SPROCKET ASSY.

SPROCKET - (15T) center

1шт.

SCREW - 5/16" x 5/8" N.C. cup pt. sq. hd. set (85-510)

1шт.

12

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

For ref. 8 and 11 #C, 5/16" x 1 1/8"

3шт.

13

F12424

SHAFT - upper feeder rake

1шт.

PIN - 3/16" x 3" cotter (132-104)

2шт.

14

F12707

PIN - jumper clutch drive (Replaced by F13388 when stock is exh.)

3шт.

NUT - 1/2" N.F. Huglock (131-710)

3шт.

15

F3148

RING - jump clutch

1шт.

16

F3130

HUB - jump clutch

1шт.

BOLT - 3/8" x 5-1/2" N.F. (114-223) Locknut (131-5)

3шт.

WASHER - 7/16" plain (95-7)

3шт.

17

F11313

KEY

1шт.

18

F79728

SPROCKET - (34T and 65T dbl.) Drives feed rake and auger drive jackshaft (Replaced by F88258 when stock is exhausted)

1шт.

19

F11810

BUSHING

2шт.

21

F79569

SHEAVE - sickle drive

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (14-836) nut (25-118)

3шт.

22

F10767

WASHER - (2-1/2" O.D. x 1-5/16" I.D. # 16 ga.)

1шт.

23

F62050

WASHER

3шт.

24

F88258

SPROCKET - (34T and 65T dbl.) Replaces F79728, ref. 18

1шт.

25

F11810

BUSHING

2шт.

26

F13388

PIN - jump clutch drive (Replaces F12707, ref. 14)

3шт.

NUT - 1/2" N.F. huglock (131-710) Washer (195-33)

3шт.

F6588

X

CHAIN - drives upper feed rake shaft (See chain page)

1шт.
