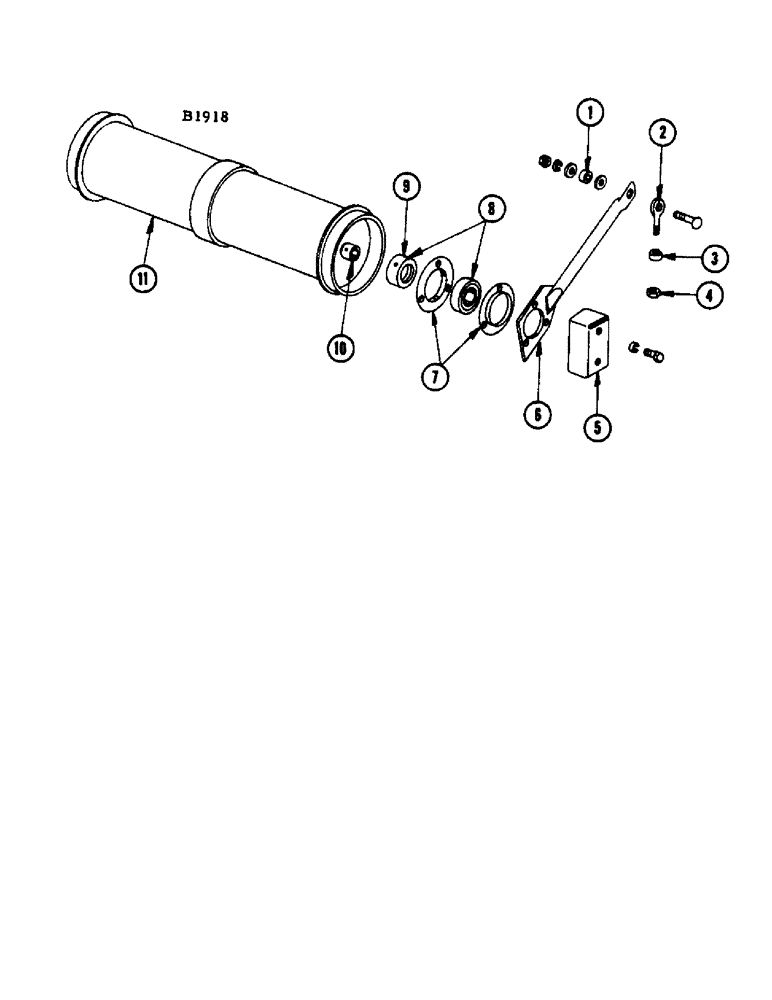

Запчасти Case IH 1060 (102) - FEED RAKE LOWER SHAFT (60) - PRODUCT FEEDING

1

T31088

SPACER,3/8" Pipe x 1/2"

For Ref. 2 3/8" Pipe x 1/2"

2шт.

2

F8326

EYEBOLT - feed rake chain tightener

2шт.

BOLT - 7/16" x 2" rhd. sq. nk. (11-732) nut (25-107)

2шт.

WASHER - 7/16" plain (95-7) L.W. (92-7)

2шт.

3

O4673TF

WASHER - (7/16" std. sheared) For ref. 2

2шт.

4

131-7

LOCK NUT,7/16"-20

NUT - 7/16" elastic, stop for ref. 2

2шт.

5

F79151

SHIELD - stop, R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) L.W. (92-6)

2шт.

F79152

SHIELD - stop, L.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) L.W. (92-6)

2шт.

6

F78636

ARM - support, feeder rake chain

1шт.

7

F62225

FLANGE

- for ref. 8

4шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) L.W. (92-6)

6шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - lower feeder rake shaft

2шт.

9

F62226

COLLAR

1шт.

10

F11292

SHAFT - lower feed rake

1шт.

11

F79559

DRUM - lower feed rake shaft (Replaced by F88162 when stocks are exhausted)

1шт.

PIN - 5/16" x 2-1/4" cotter (132-184)

1шт.

F88162

DRUM - lower feed rake shaft (Replaces F79559)

1шт.
