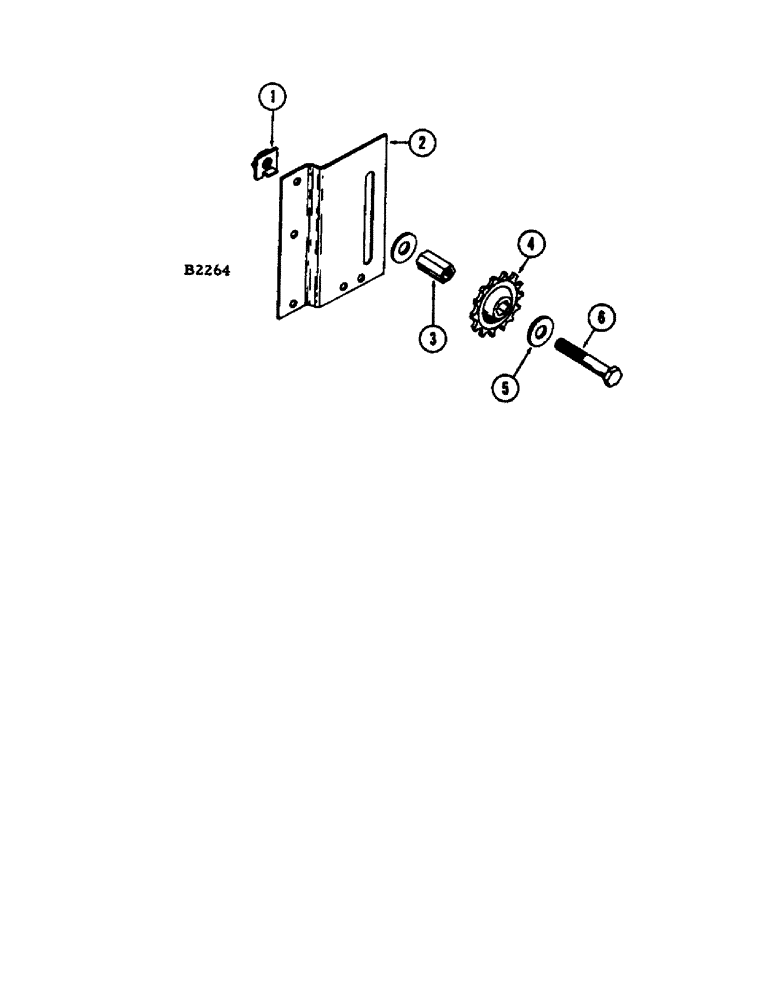

Запчасти Case IH 1060 (102[1]) - FEED RAKE DRIVE TIGHTENER (60) - PRODUCT FEEDING

1

F75313

LOCKNUT - for idler stud (F12623)

1шт.

2

F12168

BRACKET - tightener, feeder rake drive

1шт.

RIVET - 5/16" x 7/8" rhd. (45-514)

3шт.

3

F12623

STUD - idler

1шт.

4

F12640

SPROCKET ASSY.

SPROCKET - idler

1шт.

5

195-41

WASHER,5/8"

- standard 5/8"

1шт.

6

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.F. hex.

1шт.
