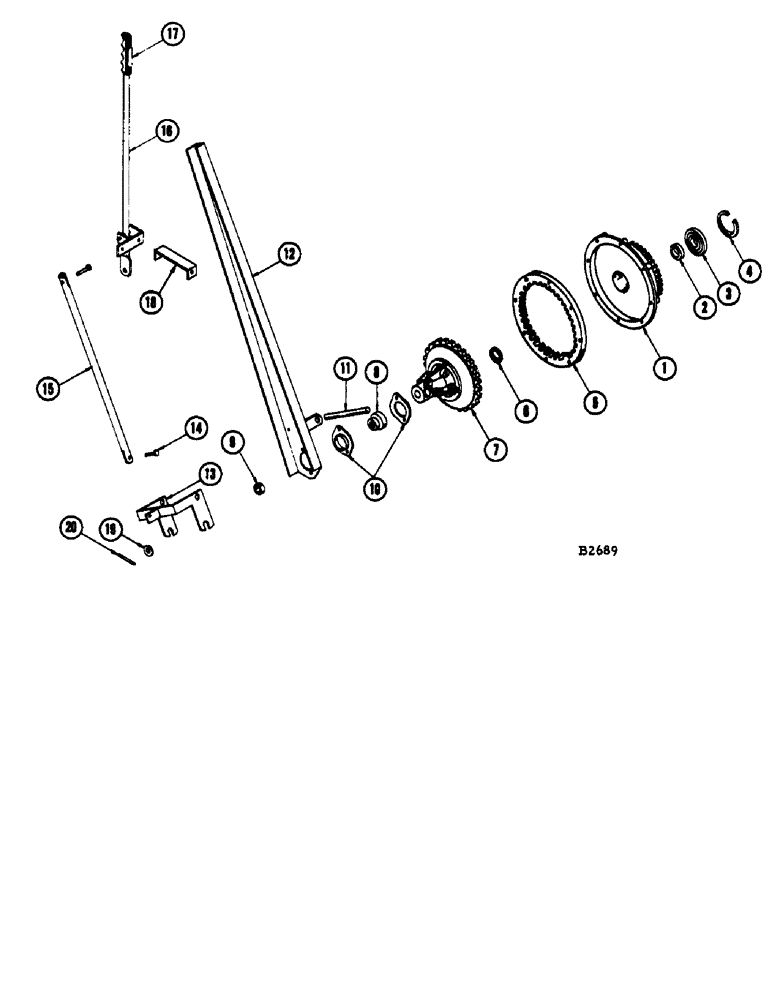

Запчасти Case IH 1060 (090) - OVER CENTER CLUTCH, HEADER DRIVE, SERIAL NUMBER 8311400 AND AFTER (60) - PRODUCT FEEDING

1

F86069

HUB - inner, with welded 27T sprocket

1шт.

2

F8467

SPACER

1шт.

3

F62200

BEARING

2шт.

4

A30091

RING, SNAP

SNAP RING

1шт.

5

O3730CS

RING - clutch, outer

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) L.W. (92-5)

8шт.

6

F12380

SPACER - inner hub and clutch back plate

1шт.

7

F86068

CLUTCH - beater shaft (Before #8357001) See P. 88

1шт.

FITTING - 1/8" (219-1)

1шт.

F88503

CLUTCH - beater shaft (#8357001 & after)

1шт.

8

F90306

BEARING ASSY

BEARING

1шт.

9

O4222CS

COLLAR

1шт.

10

F9417

FLANGE

- for ref. 8

2шт.

11

F12090

PIVOT - yoke, clutch

1шт.

PIN - 3/16" x 1-1/4" cotter (132-93)

2шт.

12

F87283

STRUT - yoke clutch

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

1шт.

WASHER - 5/16" std. (195-521) L.W. (192-20)

1шт.

13

F87284

YOKE

1шт.

14

O731CW

PIN - header

2шт.

PIN - 1/8" x 3/4" cotter (132-46) washer 3/8" (195-525)

2шт.

15

F13091

LINK -, Serial Range: crank-yoke

1шт.

16

F87045

LEVER - hand

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) nut (129-121)

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

17

F13012

SCREW

GRIP - hand lever

1шт.

18

F13795

STIFFENER - for ref. 16

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

1шт.

19

195-110

WASHER,7/8"

- U.S. std. flat (F86068) 7/8"

1шт.

20

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, (F86068) 1/4" x 1 1/2", Slotted

1шт.
