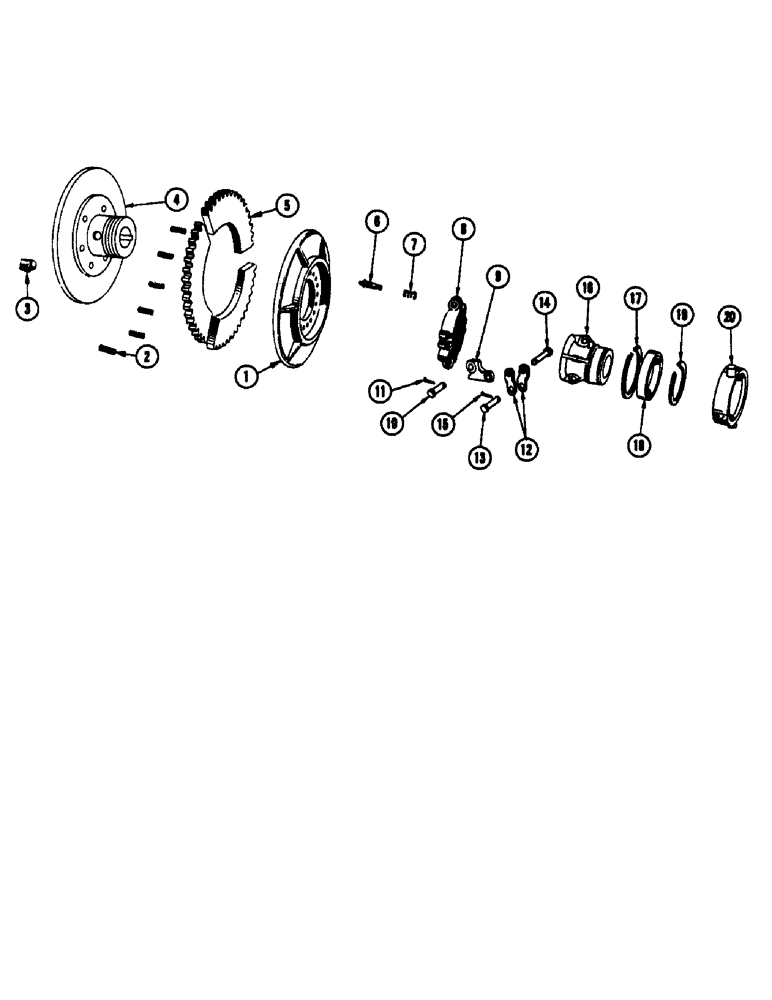

Запчасти Case IH 1060 (090[1]) - CLUTCH (60) - PRODUCT FEEDING

F88503

CLUTCH ASSEMBLY, clutch

1шт.

1

O3722CS

PLATE - floating, clutch

1шт.

2

O3721CS

SPRING

- release, clutch

6шт.

3

O623AB

PIN - square, clutch

1шт.

4

F11935

HUB AND BACK PLATE, clutch

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - driving (3 segments) Order F87670, clutch

1шт.

6

O3726CS

PIN

- lock, adjusting, clutch

1шт.

7

A26944

VALVE SPRING

SPRING - adjusting lock pin, clutch

1шт.

8

O3729CS

FORK

YOKE - adjusting, clutch

1шт.

9

O3727CS

LEVER

- toggle, clutch

4шт.

10

O3724CS

PIN

- headed, for ref. 8 and 9, clutch

4шт.

11

132-44

COTTER PIN,1/8" x 1/2"

PIN - cotter, 5/32" x 5/8" (for ref. 10), clutch

4шт.

F88432

SLIDING SLEEVE AND COLLAR ASSEMBLY, clutch

1шт.

12

F11937

DRAG LINK

LINK - lever, clutch

8шт.

13

F11938

AXLE PIN

PIN - lever link (Short), clutch

4шт.

14

O3800AB

PIN

- lever link (Long), clutch

4шт.

15

132-44

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), (For ref. 13 and 14), Clutch 1/8" x 1/2"

8шт.

16

F14918

SLEEVE - sliding, clutch

1шт.

17

NLS

NO LONGER SERVICED

3.156", Int, #315, collar, clutch

1шт.

18

FHO50500

BEARING - for F14919 (Ref. 20), clutch

1шт.

19

100-11196

SNAP RING,#196, Ext

Ring, Snap, , bearing, clutch, CLAMP - P-type, 1/4 inch ID, use engine mounting hardware #196, Ext

1шт.

20

F14919

COLLAR, clutch

1шт.

F87670

PLATE - drive (3 segments) Heavy duty (See ref. 5), clutch

1шт.
