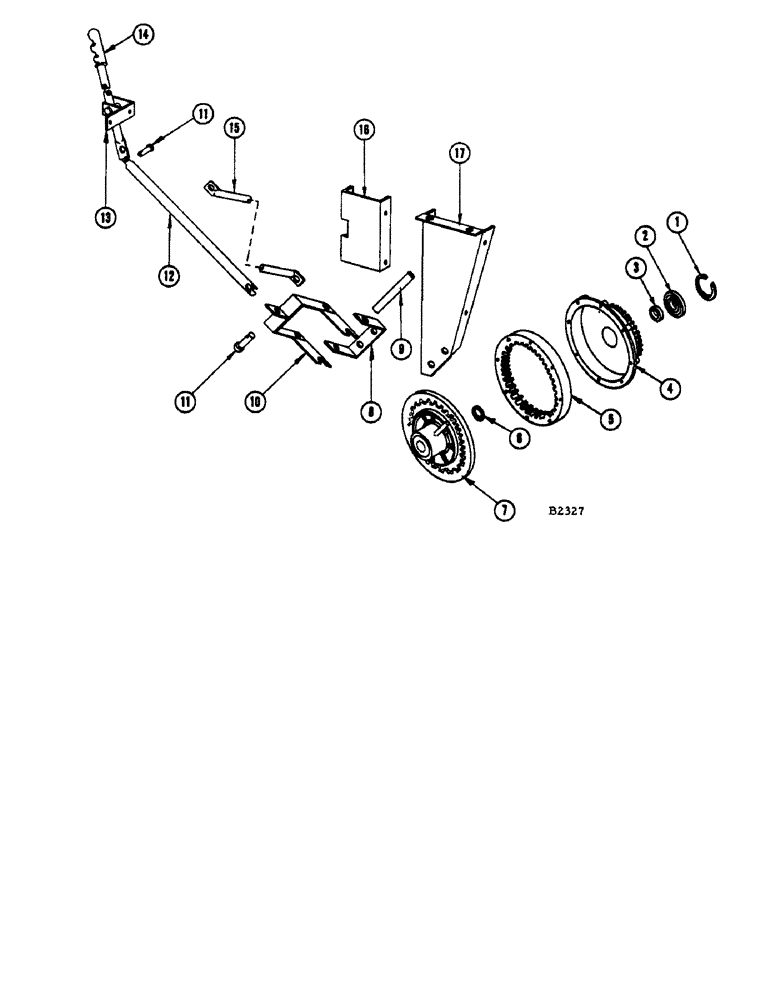

Запчасти Case IH 1060 (088) - OVER CENTER CLUTCH, HEADER DRIVE, BEFORE SERIAL NUMBER 8311400 (60) - PRODUCT FEEDING

1

A30091

RING, SNAP

SNAP RING - for ref. 2

1шт.

2

F62200

BEARING

- for ref. 4

2шт.

3

F8467

SPACER - (1-7/16" O.D. #11 ga.) For ref. 2

1шт.

4

F86069

HUB - inner, with welded 27T sprocket

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) L.W. (92-5)

8шт.

5

O3730CS

OUTER RING - clutch

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (13-520) L.W. (92-5)

8шт.

6

F12380

SPACER - inner hub and clutch back plate

1шт.

7

F86068

CLUTCH - beater shaft

1шт.

FITTING - 1/8" (219-1)

1шт.

8

F13087

BRACKET - pivot

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)

1шт.

9

F12090

PIVOT - yoke, clutch

1шт.

PIN - 3/16" x 1-1/4" cotter (132-93)

2шт.

10

F87044

FORK

YOKE

1шт.

11

O731CW

PIN - header

2шт.

PIN - 1/8" x 3/4" cotter (132-46) Washer 3/8" (19-525)

2шт.

12

F13091

LINK -, Serial Range: crank-yoke

1шт.

13

F87045

LEVER - hand

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

14

F13012

SCREW

GRIP - hand lever

1шт.

15

F13088

BRACE - pipe

1шт.

16

F13085

BRACE - hanger bracket

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

4шт.

17

F13086

BRACKET - hanger

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.
