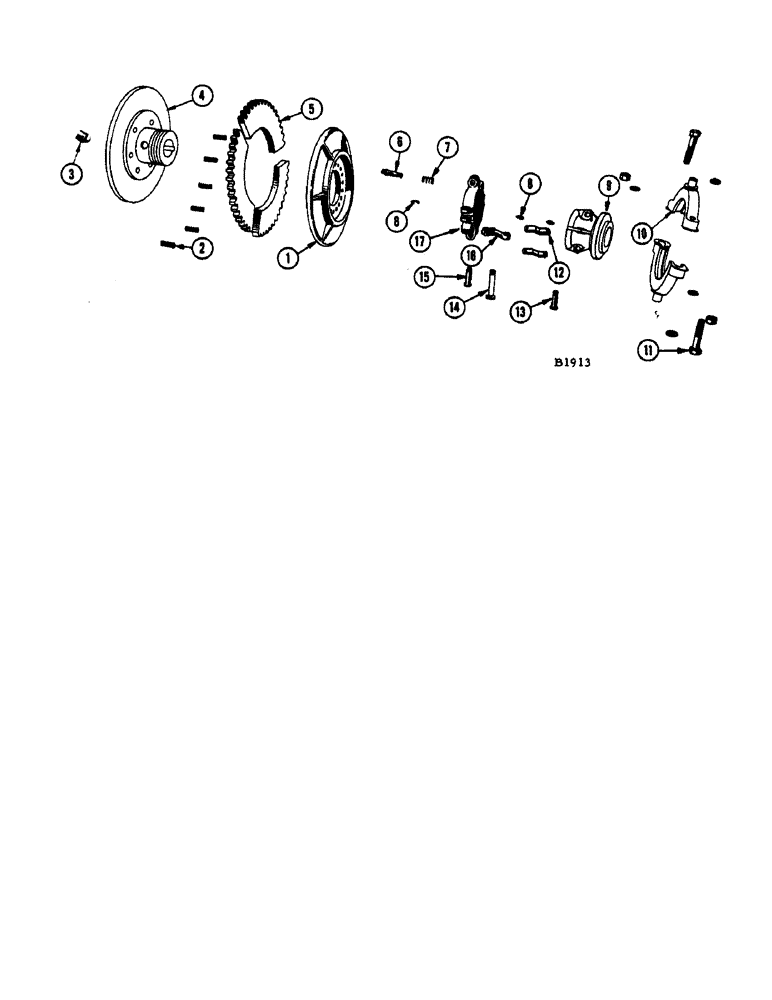

Запчасти Case IH 1060 (088[1]) - CLUTCH (60) - PRODUCT FEEDING

F86068

CLUTCH - (see note)

1шт.

1

O3722CS

PLATE - floating

1шт.

2

O3721CS

SPRING

- release

6шт.

3

O623AB

PIN

1шт.

4

F11935

PLATE - hub and back

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - drive (3 segment) Order F87670

1шт.

6

O3726CS

PIN

LOCK PIN - adjusting

1шт.

7

A26944

VALVE SPRING

SPRING

1шт.

8

132-44

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

12шт.

9

F11934

SLEEVE - sliding

1шт.

10

F11936

X

COLLAR - (Liner type not furnished - use A31140)

1шт.

A31140

COLLAR

- (Solid brass)

1шт.

11

O7129A

BOLT

2шт.

12

F11937

DRAG LINK

LINK - offset

8шт.

13

O3800AB

PIN

4шт.

14

F11938

AXLE PIN

PIN

4шт.

15

O3724CS

PIN

- finger

4шт.

16

O3727CS

LEVER

FINGER

4шт.

17

O3729CS

FORK

YOKE - adjusting

1шт.

F87670

PLATE - drive (3 segment) Heavy duty (See ref. 5)

1шт.

F88432

SLEEVE AND COLLAR ASSEMBLY - (Corn and rice)

1шт.

NOTE: Use in place of F11934 and A31140. Also, includes ref. 12, 13, and 14 and cotter pins (8) 132-44.

1шт.
