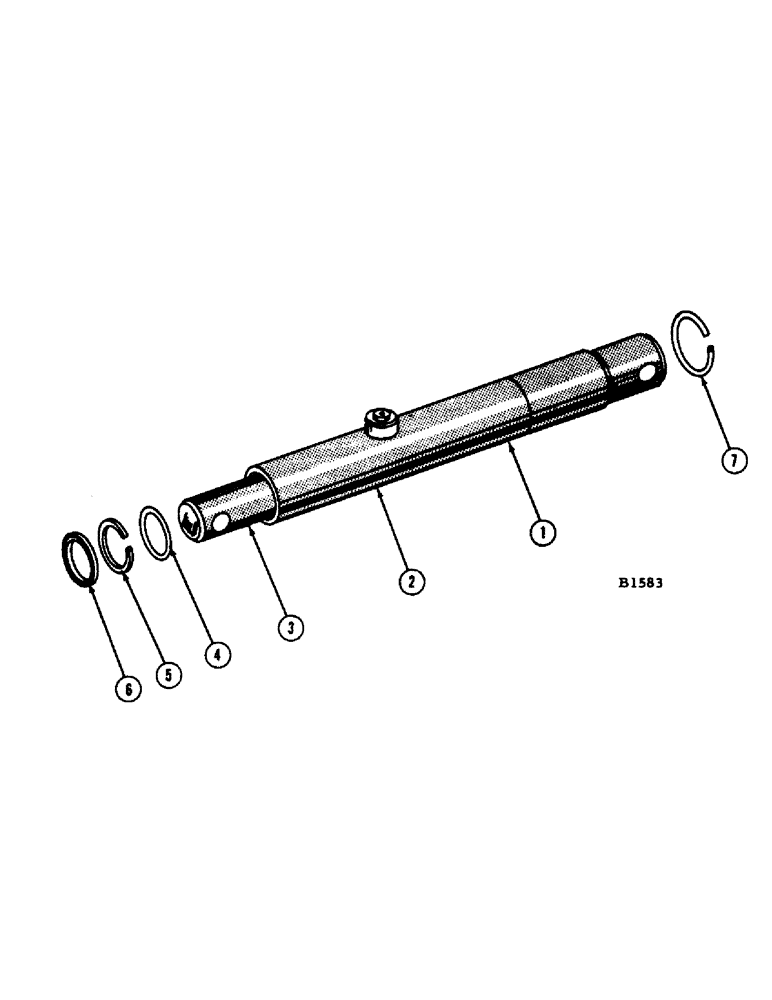

Запчасти Case IH 1060 (086) - HEADER LIFT CYLINDER, BEFORE SERIAL NUMBER 8334601 (58) - ATTACHMENTS/HEADERS

1

F87112

CYLINDER - header lift

2шт.

2

F87131

BARREL

1шт.

3

F10651

ROD - piston

1шт.

F86294

CYLINDER

REPAIR KIT

1шт.

4

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING - (3/16" x 1-7/8" I.D.)

1шт.

5

F8084

WASHER

- (3/16" x 2-3/8" O.D.) back up

1шт.

6

F10649

OIL SEAL

OIL SEAL

1шт.

7

F10650

RING, SNAP

SNAP RING - (1-7/8" rd. open) Piston rod

1шт.

1

F88199

CYLINDER - header lift 8334601 and, Start Serial: after

2шт.

2

NSS

NOT SOLD SEPARAT

BARREL, header lift cylinder 8334601 and, Start Serial: after

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, header lift cylinder 8334601 and, Start Serial: after

1шт.

F86294

CYLINDER

REPAIR KIT, header lift cylinder 8334601 and, Start Serial: after

1шт.

4

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O" RING - (3/16" x 1-7/8" I.D.), header lift cylinder 8334601 and, Start Serial: after

1шт.

5

F8084

WASHER

- (3/16" x 2-3/8" O.D.) Back up, header lift cylinder 8334601 and, Start Serial: after

1шт.

6

F10649

OIL SEAL

OIL SEAL, header lift cylinder 8334601 and, Start Serial: after

1шт.

7

F10650

RING, SNAP

SNAP RING - (1-7/8" rd. open) Piston rod, header lift cylinder 8334601 and, Start Serial: after

1шт.
