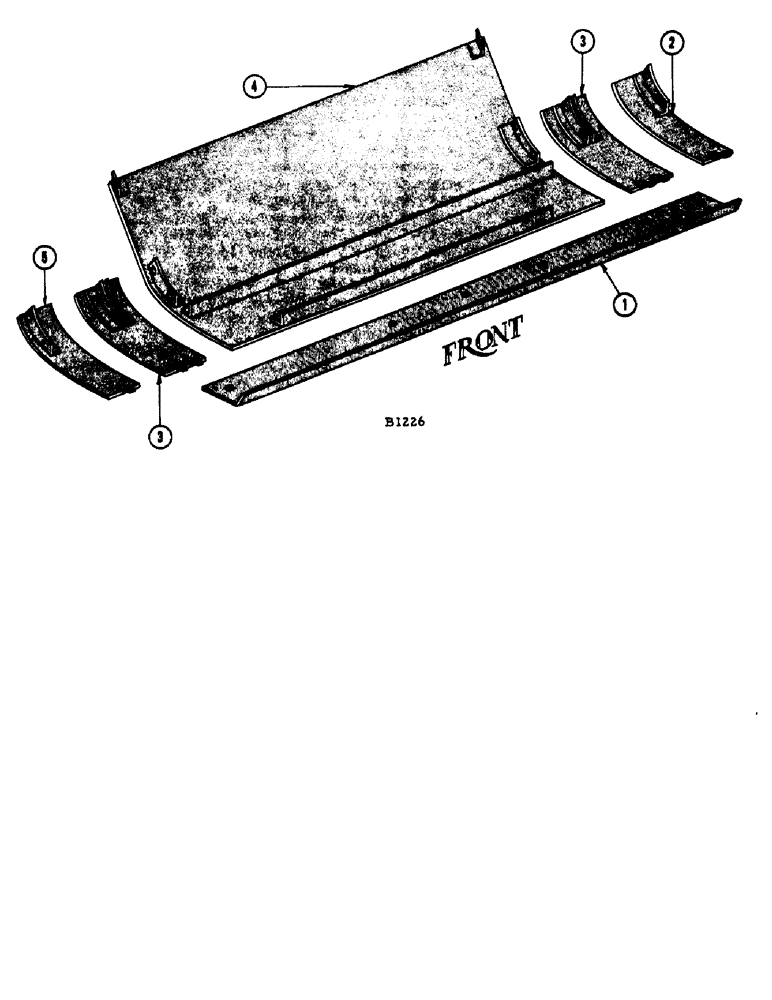

Запчасти Case IH 1060 (082) - HEADER FLOTATION SHOE AND GUARD ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F9603

RETAINER - guard

1шт.

2

F77659

SHOE - outer, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

WASHER - 5/16" plain (195-103)

6шт.

3

F77657

SHOE - inner, R.H. and L.H.

2шт.

BOLT - 5/16" x 7/8" N.C. hex. (113-113) L.W. (192-20)

4шт.

4

F77656

GUARD - header

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

NUT - Tinnerman speed #C-7935-5618-27 (131-105)

4шт.

5

F77658

SHOE - outer R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

2шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

6шт.
