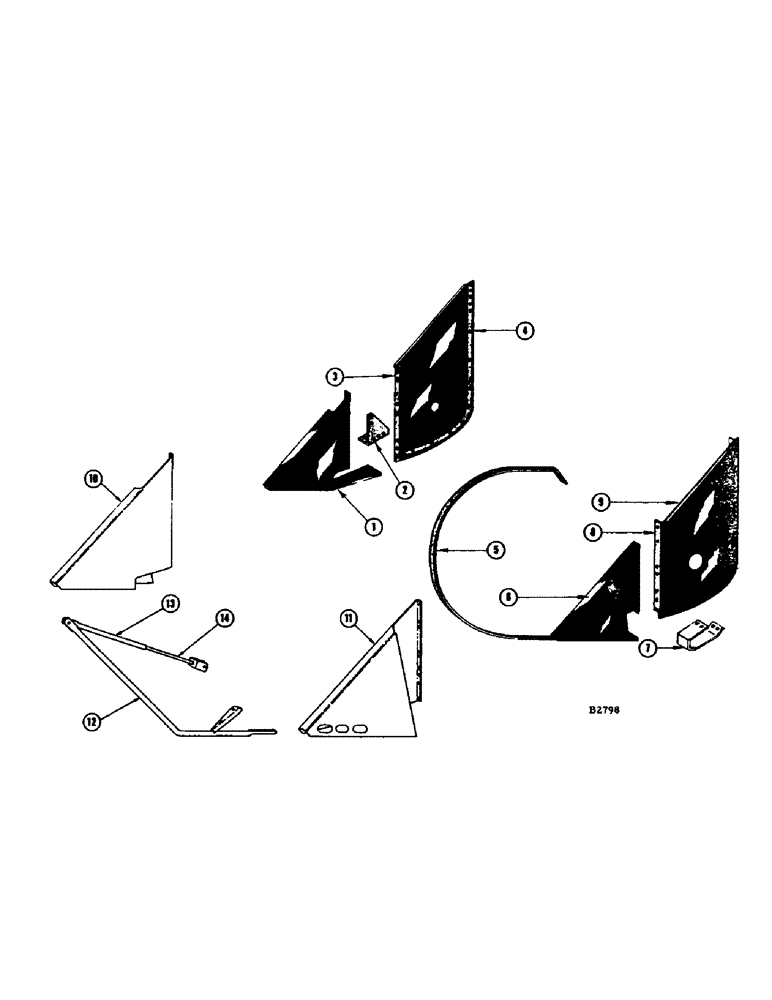

Запчасти Case IH 1060 (080) - AUGER TROUGH HEADS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F86801
X
DIVIDER - R.H. (Before #8357001)
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
WASHER - 1/4" plain (195-102)
4шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
4шт.
F86275
DIVIDER - R.H. (Extended cutter bar)
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
3шт.
WASHER - 1/4" plain (195-518)
3шт.
BOLT - 5/16" x 1-5/8" rhd. sq. nk. (111-209) nut (129-102)
2шт.
WASHER - 5/16" plain (195-521)
2шт.
2
F8282
GUSSET - auger trough, end sheet R.H.
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
3шт.
F9390
GUSSET - end sheet, L.H. (Not shown)
1шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
2шт.
3
F8300
POST - divider, R.H. (Replaced by F13482 when stock is exh.)
1шт.
F13482
POST - divider, R.H. (Replaces F8300)
1шт.
4
F77066
HEAD - auger trough, R.H.
1шт.
5
F86804
STRAP - divider (All std. hdrs.) Before #8357001
2шт.
F86494
LOOP - divider (13-14' hvy. dty. hdrs.) Before #8357001
2шт.
BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101)
4шт.
BOLT - 5/16" x 7/8" rhd. sq. nk. (111-220) Gripco nut (131-351)
4шт.
6
F86800
POINT
DIVIDER - L.H. (Before #8357001)
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
WASHER - 1/4" plain (195-102)
4шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
3шт.
F86274
DIVIDER - L.H. (Extended cutter bar)
1шт.
BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)
3шт.
WASHER - 1/4" plain washer (195-518)
3шт.
BOLT - 5/16" x 1-5/8" rhd. sq. nk. (111-209) nut (129-102)
2шт.
WASHER - 5/16" plain (195-521)
2шт.
7
F8305
BRACE - divider shoe
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
4шт.
8
F8303
POST - divider, L.H. (Replaced by F13485 when stock is exh.)
1шт.
F13485
SCREW
POST - divider, L.H. (Replaces F8303)
1шт.
9
F77065
SCREW
HEAD - auger trough, L.H.
1шт.
10
F88613
POINT
DIVIDER - R.H. (#8357001 & after)
1шт.
BOLT - 1/4" x 5/8: N.F. hex. (114-3) nut (129-121)
4шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
4шт.
11
F88614
POINT
DIVIDER - L.H. (#8357001 and after)
1шт.
BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)
4шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
3шт.
12
F88603
LOOM
LOOP - divider (#8357001 and after)
2шт.
BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)
2шт.
BOLT - 5/16" x 3/4" N.C. hex. (111-215) nut (129-102)
4шт.
13
F21001
PIPE
LINK - (#8357001 and after)
2шт.
BOLT - 5/16" x 1" N.C. hex. (113-103) ESNA nut (131-69)
2шт.
14
F83942
YOKE AND ROD - (#8357001 & after)
2шт.
BOLT - 5/16" x 2-1/2" N.C. hex. (113-111) ESNA nut (131-69)
2шт.
Выбрано товаров: 48
