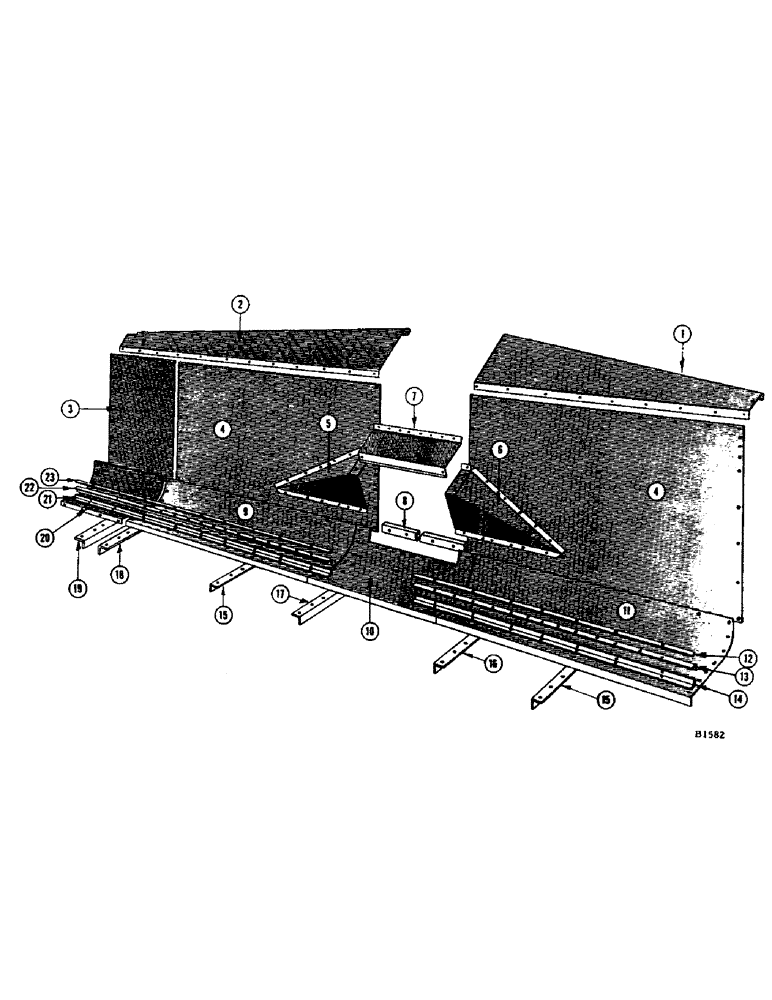

Запчасти Case IH 1060 (078) - HEADER AUGER TROUGH, 16 FOOT AND 18 FOOT (58) - ATTACHMENTS/HEADERS

1

F8581

COVER - L.H., torque tube

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

3шт.

2

F8582

COVER - R.H., torque tube (16 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

3шт.

F10327

COVER - R.H., torque tube (18 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

5шт.

3

F10319

BACK SHEET - auger trough extension (18 ft.)

1шт.

RIVET - 1/4" x 9/16" rhd. (45-49)

4шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

2шт.

4

F8570

BACK SHEET - auger trough, R.H. and L.H.

2шт.

RIVET - 1/4" x 5/8" W.B. hd. (49-410)

3шт.

5

F8286

SHIELD - feed rake, R.H.

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

5шт.

6

F8285

SHIELD - feed rake, L.H.

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

5шт.

BOLT - 1/4" x 3/8" N.F. hex. (14-46) nut (25-114)

3шт.

7

F8342

SHIELD - feed rake chain

1шт.

BOLT - 1/4" x 3/8" N.F. hex. (14-46) nut (25-114)

6шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

2шт.

8

F11806

STRIP - filler, feeder spout floor

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

9шт.

9

F11811

FLOOR - auger trough, R.H.

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

10

F11805

FLOOR - auger trough, center

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

35шт.

11

F11812

FLOOR - auger trough, L.H.

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

12шт.

12

F8579

STRIPPER - adjustable (R.H. and L.H. for 16 ft.) (L.H. only for 18 ft.) See ref. 23

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) 14 for 16 ft. and 7 for 18 ft.

1шт.

13

F8573

ANGLE - stripper, upper L.H.

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

4шт.

14

F8575

ANGLE - stripper, lower L.H.

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

15

F10794

HOOK RAIL - auger trough, R.H. and L.H.

2шт.

RIVET - 1/4" x 5/8" ctsk. hd. (46-410)

6шт.

16

F8289

HOOK RAIL - feeder spout, L.H.

1шт.

RIVET - 5/16" x 7/16" rhd. (45-58)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-512)

3шт.

17

F8288

HOOK RAIL - feeder spout, R.H.

1шт.

RIVET - 5/16" x 7/16" rhd. (45-48)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-512)

3шт.

18

F10318

HOOK RAIL - for auger trough floor extension, L.H. (18 ft.)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

8шт.

19

F10317

HOOK RAIL - for auger trough floor extension, R.H. (18 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

BOLT -5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

8шт.

20

F10311

EXTENSION - auger trough floor (18 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

14шт.

21

F8574

ANGLE - stripper, lower R.H. (16 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

F10323

ANGLE - stripper, lower R.H. (18 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

3шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

5шт.

22

F8572

ANGLE - stripper, upper R.H. (16 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

13шт.

F10321

ANGLE - stripper, R.H. (18 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

9шт.

23

F10322

STRIPPER - adjustable, R.H. (18 ft.) See ref. 12

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

9шт.
