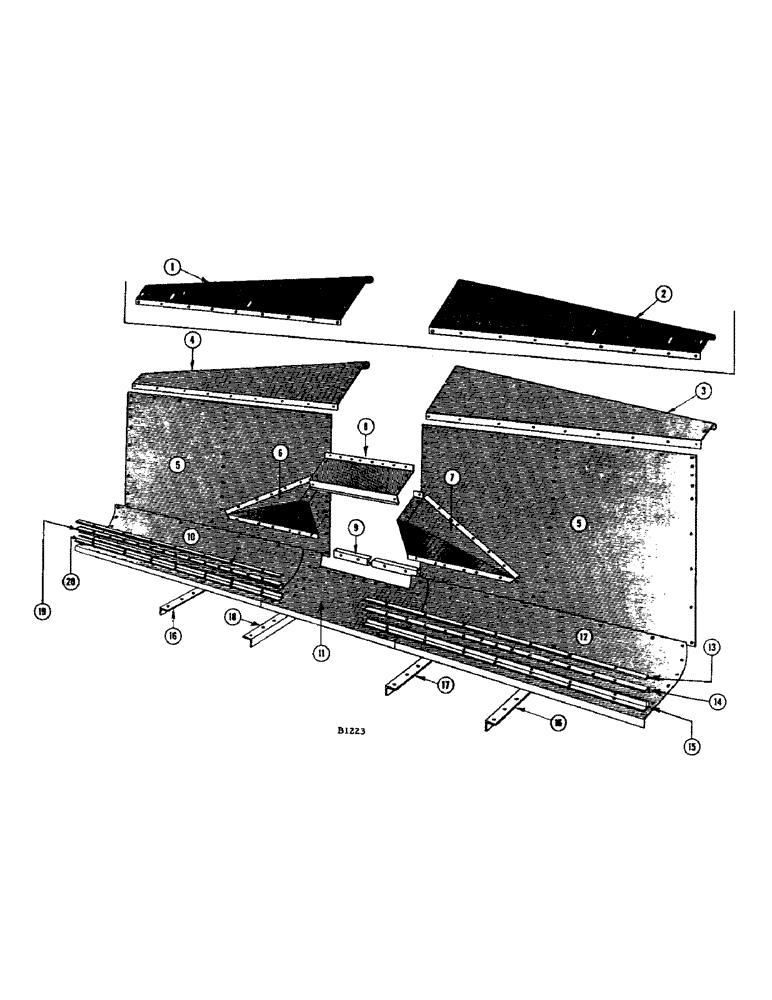

Запчасти Case IH 1060 (074) - HEADER AUGER TROUGH, 12 FOOT, 13 FOOT, 14 FOOT HEADERS (58) - ATTACHMENTS/HEADERS

1

F11909

COVER - R.H., torque tube (Extended cutter bar) See ref. 4

1шт.

2

F11910

COVER - L.H., torque tube (Extended cutter bar) See ref. 3

1шт.

3

F9583

COVER - L.H., torque tube (12 ft.) See ref. 2

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

3шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

1шт.

WASHER - 1/4" plain (95-4)

1шт.

F15757

COVER - L.H. torque tube (13 ft.)

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414(

3шт.

F8339

COVER - L.H., torque tube (14 ft.) See ref. 2

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

3шт.

4

F9582

COVER - R.H., torque tube (12 ft.) See ref. 1

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

3шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

1шт.

WASHER - 1/4" plain (95-4)

1шт.

F12756

COVER - R.H. torque tube (13 ft.)

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

3шт.

F8340

COVER - R.H., torque tube (14 ft.) See ref. 1

1шт.

RIVET - 1/4" x 7/8" rhd. (45-414)

3шт.

5

F9574

BACK SHEET - auger trough, R.H. and L.H. (12 ft.)

2шт.

RIVET - 1/4" x 5/8" W.B. hd. (49-410)

14шт.

F12748

BACK SHEET - auger trough, R.H. and L.H. (13 ft.)

2шт.

RIVET - 1/4" x 5/8" W.B. hd. (49-410)

14шт.

F8280

BACK SHEET - auger trough, R.H. and L.H. (14 ft.)

2шт.

RIVET - 1/4" x 5/8" W.B. hd. (49-410)

14шт.

6

F8286

SHIELD - feed rake, R.H.

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

5шт.

WASHER - 1/4" plain (95-4)

10шт.

7

F8285

SHIELD - feed rake, L.H.

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

5шт.

BOLT - 1/4" x 3/8" N.F. hex. (14-46) nut (25-114)

3шт.

WASHER - 1/4" plain (95-4)

10шт.

8

F8342

SHIELD - feed rake chain

1шт.

BOLT - 1/4" x 3/8" N.F. hex. (14-46) nut (25-114)

6шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

2шт.

9

F11806

STRIP - filler, feeder spout floor

1шт.

RIVET - 1/4" x 5/8" rhd. (46-410)

9шт.

10

F11798

FLOOR - auger trough, R.H. (12 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

F12746

FLOOR - auger trough R.H. (13 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

F11808

FLOOR - auger trough, R.H. (14 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

11

F11805

FLOOR - auger trough, center

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

35шт.

12

F11799

FLOOR - auger trough, L.H. (12 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

12шт.

F12747

FLOOR - auger trough, L.H. (13 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

F11809

FLOOR - auger trough, L.H. (14 ft.)

1шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

14шт.

13

F9581

STIPPER - adjustable, R.H. and L.H. (12 ft.)

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

14шт.

WASHER - 1/4" plain (95-4)

14шт.

F12751

STRIPPER - adjustable, R.H. and L.H. (13 ft.)

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

14шт.

WASHER - 1/4" plain (95-4)

14шт.

F8299

STRIPPER - adjustable, R.H. and L.H. (14 ft.)

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

14шт.

WASHER - 1/4" plain (95-4)

14шт.

14

F9578

ANGLE - stripper, upper L.H. (12 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

F12750

ANGLE - stripper, upper L.H. (13 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

F8292

ANGLE - stripper, upper L.H. (14 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

15

F9579

ANGLE - stripper, lower L.H. (12 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

F12753

ANGLE - stripper, lower L.H. (13 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

F8294

ANGLE - stripper, lower L.H. (14 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

16

F10794

HOOK RAIL - auger trough, R.H. and L.H.

2шт.

RIVET - 1/4" x 5/8" ctsk. hd. (46-410)

6шт.

17

F8289

HOOK RAIL - feeder spout, L.H.

1шт.

RIVET - 5/16" x 7/16" rhd. (45-58)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-512)

3шт.

18

F8288

HOOK RAIL - feeder spout, R.H.

1шт.

RIVET - 5/16" x 1-1/2" rhd. (45-524)

1шт.

RIVET - 5/16" x 3/4" rhd. (45-512)

3шт.

19

F9576

ANGLE - stripper, upper R.H. (12 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

F12754

ANGLE - stripper, upper R.H. (13 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

F8290

ANGLE - stripper, upper R.H. (14 ft.)

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)

7шт.

WASHER - 1/4" plain (95-4)

7шт.

20

F9577

ANGLE - stripper, lower R.H. (12 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

F12755

ANGLE - stripper, lower R.H. (13 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.

F8291

ANGLE - stripper, lower R.H. (14 ft.)

1шт.

RIVET - 1/4" x 5/8" rhd. (45-410)

7шт.
