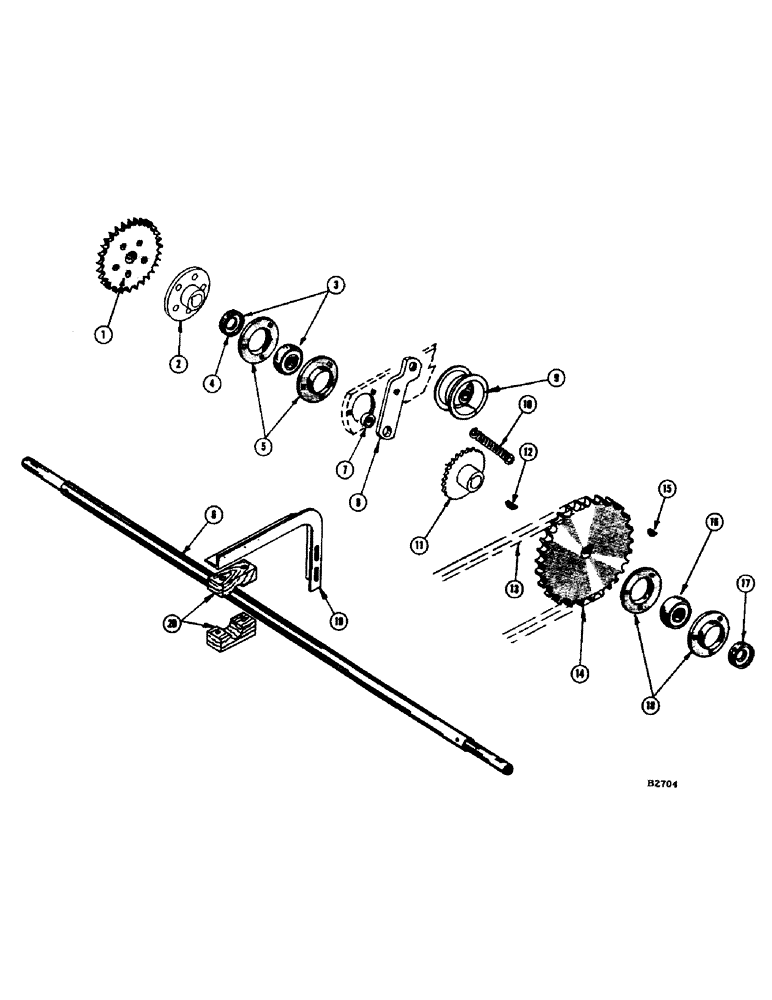

Запчасти Case IH 1060 (072) - MAIN HEADER DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F5530

SPROCKET - (30T) Auger drive (120 RPM) See O4929CS and O4930CS

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (14-620) nut (25-116)

5шт.

O4929CS

SPROCKET - (25T) Auger drive (100 RPM)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

5шт.

O4930CS

SPROCKET - (37T) Auger drive (150 RPM)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

55шт.

2

F79868

PLATE - reel drive jackshaft sprocket, with hub

1шт.

KEY - "C" Woodruff (126-29)

1шт.

SCREW - 3/8" x 3/8" N.C. socket hd. set (83-66)

1шт.

3

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - jackshaft, L.H.

1шт.

4

F6226

COLLAR

1шт.

5

F62225

FLANGE

- for ref. 3

2шт.

BP:T - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

1шт.

6

F11667

JACKSHAFT - main header drive (12 ft. header)

1шт.

F12760

JACKSHAFT - main header drive (13 ft. heavy duty header)

1шт.

F11672

JACKSHAFT - main header drive (14 ft. header)

1шт.

F11675

JACKSHAFT - main header drive (16 ft. and 18 ft. headers)

1шт.

7

O736N

SPACER - (3/8" x 9/32" long) Tightener strap

1шт.

8

F13514

STRAP - tightener

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (14-624) nut (25-116)

1шт.

WASHER - 3/8" plain (95-6)

1шт.

9

O3511CS

PULLEY

1шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118)

1шт.

10

O4522B

SPRING

- tightener strap

1шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) Dbl. hex. nut (25-106)

1шт.

11

F79867

SPROCKET - (23T) Drives reel drive jackshaft

1шт.

SCREW - 3/8" x 3/8" N.C. socket hd. cup pt. set (83-66)

1шт.

12

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

For ref. 11 #C, 5/16" x 1 1/8"

1шт.

13

F8392

CHAIN - main header drive (See chain page)

1шт.

14

F77097

SPROCKET - (50T) Drives main header jackshaft

1шт.

PIN - 5/16" x 1-3/4" type A3 driv-loc (135-368)

1шт.

15

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

16

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - jackshaft, R.H.

1шт.

17

F62226

COLLAR

1шт.

18

F62225

FLANGE

- for ref. 16

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

3шт.

19

F14122

BRACKET - bearing support (13' and 14' headers)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) L.W. (92-5)

1шт.

WASHER - 5/16" std. (95-5) nut (25-115)

1шт.

BOLT - 7/16" x 1-3/4" N.F. hex. (14-728) L.W. (92-7)

1шт.

WASHER - 7/16" std. (95-7) nut (25-117)

1шт.

20

F4117

BEARING - center (13' and 14' headers) Replaces F4348

2шт.

BOLT - 3/8" x 3-1/4" N.F. hex. (14-652) nut (25-116)

2шт.

WASHER - 3/8" std. (95-6)

4шт.
