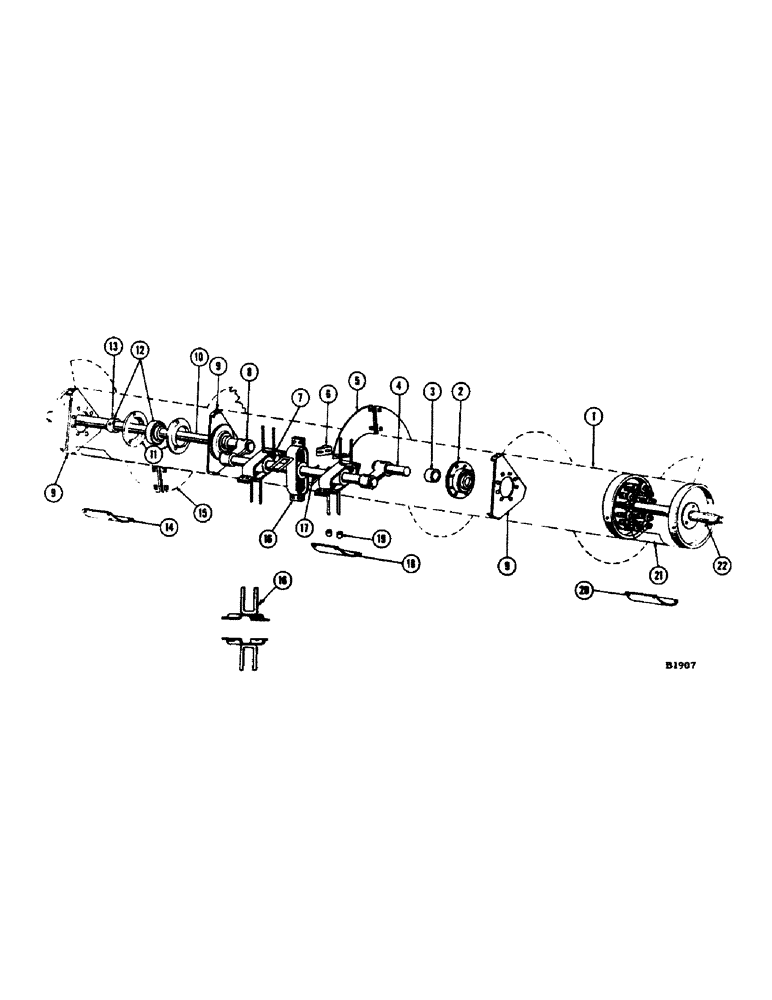

Запчасти Case IH 1060 (070) - AUGER FOR PICKUP HEADERS (58) - ATTACHMENTS/HEADERS

1

F79329M

AUGER - header, 12 ft. (Mchy. item)

1шт.

F88779M

AUGER - header, 13 ft. (Mchy. item)

1шт.

F79746M

AUGER - header, 14 ft. (Mchy. item)

1шт.

F79745M

AUGER - header, 16 ft. (Mchy. item)

1шт.

F88557M

AUGER - header, 18 ft. (Mchy. item)

1шт.

2

N5077

FLANGED BEARING

BEARING - flange type, center mounting plate

2шт.

3

F52076

COLLAR

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

6шт.

4

O4241CS

SHAFT - stub, pivot (For ref. 16)

1шт.

5

F11522

EXTENSION - flight, L.H. spiral

1шт.

Flight extension attachment (F79739) parts.

1шт.

BOLT - 5/16" x 1/2" rhd. sq. nk. (111-222) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

6

F11521

CLIP - mounting, flight extension

2шт.

Flight extension attachment (F79739) parts.

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

7

F11606

BUSHING

SPOOL - retractable finger

5шт.

8

F7473

ARM

- crank, finger pivot

4шт.

BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)

4шт.

9

O5114CS

PLATE - inner, auger tube support

3шт.

SCREW - 3/8" x 3/4" N.F. rhd. mach. (76-612) nut (25-116)

9шт.

10

F10955

SHAFT - control (12 ft. header)

1шт.

F30204

SHAFT - control (13 ft. header)

1шт.

F11534

SHAFT - control (14 ft. header)

1шт.

F11533

SHAFT - control (16 ft. header)

1шт.

F14998

SHAFT - control (18 ft. header)

1шт.

11

B18282

FLANGE

- for ref. 12

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

12

2950CSA

HOUSING ASSY.

BEARING - R.H. mounting plate

1шт.

13

O4233CS

COLLAR

1шт.

14

F11520

PLATE - cover

2шт.

Flight extension attachment (F79739) parts.

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

15

F11523

EXTENSION - flight, R.H. spiral

1шт.

Flight extension attachment (F79739) parts.

1шт.

BOLT - 5/16" x 1/2" rhd. sq. nk. (111-222) nut (129-102)

2шт.

WASHER - 5/16" plain (195-103)

2шт.

16

F86287

FINGER

ASSEMBLY

10шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

20шт.

17

F10956

SHAFT - (32-7/8" long) Roller

1шт.

18

F76158

LARGE PLATE

COVER - finger guide

10шт.

19

F6658

BUSHING

- (7/8" O.D. x 1/2" I.D. x 5/8") Finger

2шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348) nut (131-136)

40шт.

20

F9225

DOOR - inspection

2шт.

Flight extension attachment (F79739) parts.

1шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348) nut (131-136)

8шт.

21

F9225

DOOR - inspection

2шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348) nut (131-136)

8шт.

22

F10375

SHAFT - auger drive

1шт.

NUT - 3/4"-16 Gripco hex. jam (131-152) Pl. wshr. (95-12)

1шт.
