Запчасти Case IH 1060 (068) - RETRACTABLE FINGER TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS

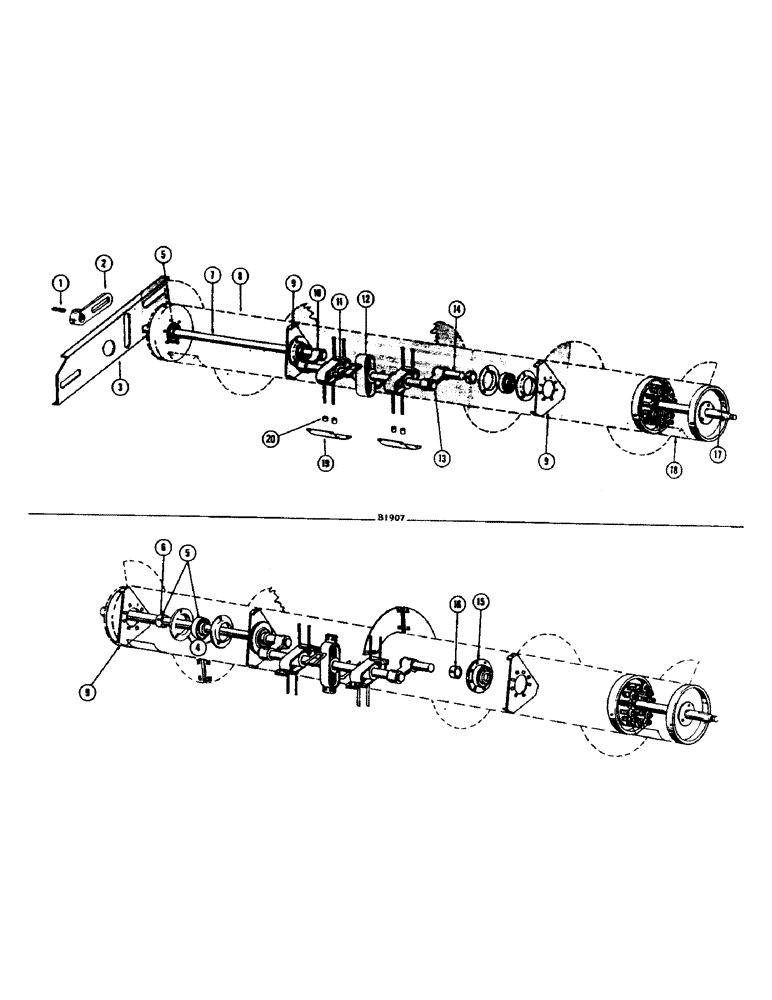

Схема запчастей Case IH 1060 - (068) - RETRACTABLE FINGER TYPE HEADER AUGER (58) - ATTACHMENTS/HEADERS
1
8
5
2
13
14
16
7
17
20
12
3
5
18
9
9
15
9
11
6
10
19

Артикул

Название

Примечание

Количество

1

F62223

KEY

- (3/16" x 1") For ref. 2

1шт.

2

F1232

FITTING

ARM - finger control

1шт.

BOLT - 1/2" x 1-1/4" rhd. sq. nk. (11-820) nut (25-108)

1шт.

WASHER - 1/2" plain (95-8)

1шт.

SCREW - 5/16" x 1/2" N.C. socket hd. cup pt. set (83-58)

1шт.

3

F77080

SUPPORT - R.H., auger bearing

1шт.

B18239

SPACER,3/4" Pipe x 3/4"

BUSHING

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

WASHER - 3/8" plain (95-6)

2шт.

4

B18282

FLANGE

- for ref. 5

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

5

2950CSA

HOUSING ASSY.

BEARING - R.H. mounting plate

1шт.

6

O4233CS

COLLAR

1шт.

7

F9605

SHAFT - (64-7/32") Finger control (12 ft. header)

1шт.

F12773

SHAFT - finger control (13 ft. heavy duty)

1шт.

F8489

SHAFT - (76-7/32") Finger control (14 ft. header)

1шт.

F8587

SHAFT - (88-7/32") Finger control (16 ft. header)

1шт.

F10330

SHAFT - (111-13/16") Finger control (18 ft. header)

1шт.

8

F78698M

AUGER - header, 12 ft. (Mchy. item)

1шт.

F86794M

AUGER - header, 13 ft. heavy duty (Mchy. item)

1шт.

F78701M

AUGER - header, 14 ft. standard (Mchy. item)

1шт.

F86678M

AUGER - header, 14 ft. heavy duty (Mchy. item)

1шт.

F78704M

AUGER - header, 16 ft. (Mchy. item)

1шт.

F78707M

AUGER - header, 18 ft. (Mchy. item)

1шт.

9

O5114CS

PLATE - inner, auger tube support

3шт.

SCREW - 3/8" x 3/4" N.F. rhd. mach. (76-612) nut (25-116)

9шт.

10

F7473

ARM

- crank, finger pivot

4шт.

BOLT - 5/16" x 2" N.F. hex. (14-532) nut (25-115)

4шт.

11

F11606

BUSHING

SPOOL - retractable finger

3шт.

12

F86287

FINGER

ASSEMBLY

6шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

12шт.

13

F6281

SHAFT

- (21" long) Finger assembly

1шт.

14

O4241CS

SHAFT - stub, pivot (For ref. 12)

1шт.

15

N5077

FLANGED BEARING

BEARING - flange type, center mounting plate

2шт.

16

F52076

COLLAR

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

6шт.

17

F10375

SHAFT - auger drive

1шт.

NUT - 3/4"-16 Gripco hex. jam (131-152) Pl. wshr. (95-12)

1шт.

18

F9225

DOOR - inspection

2шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348)

8шт.

19

F76158

LARGE PLATE

COVER - finger guide

6шт.

20

F6658

BUSHING

- (7/8" O.D. x 1/2" I.D. x 5/8") Finger

2шт.

SCREW - #14 x 5/8" pan hd. tapping (187-348)

24шт.

Выбрано товаров: 43
