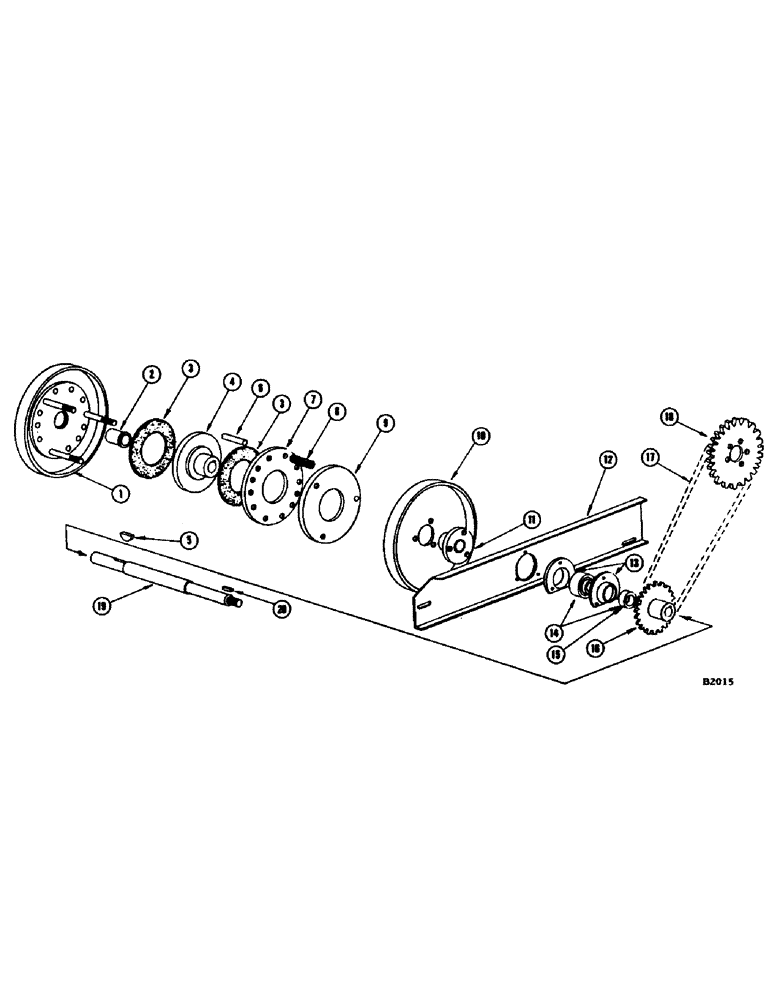

Запчасти Case IH 1060 (066) - HEADER AUGER DRIVE (58) - ATTACHMENTS/HEADERS

1

F79725

CLUTCH PLATE - inner

1шт.

2

F10372

BUSHING

1шт.

NUT - 7/16" N.F. hex. (25-117) Jam nut (25-157)

3шт.

3

F95518

KIT

FACING - clutch, set of 2

1шт.

4

F1303

PLATE - drive

1шт.

5

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

For ref. 4 #G, 3/8" x 1 1/2"

1шт.

6

F11488

PIN - spring locator

9шт.

7

F10374

CLUTCH PLATE - outer

1шт.

8

F60482

SPRING

- clutch plate

12шт.

9

F11489

PLATE - inner mounting

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) nut (25-116)

3шт.

10

F10376

PLATE - outer mounting

1шт.

BOLT - 3/8" x 5/8" N.F. hex. (14-610) nut (25-116)

3шт.

11

F78658

HUB - outer

1шт.

F10372

BUSHING

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

3шт.

12

F8347

SUPPORT - auger, L.H. end

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

3шт.

WASHER - 3/8" plain (95-6)

3шт.

13

O4210CS

FLANGE - for ref. 14

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

3шт.

14

N3382

BALL BEARING

BEARING - for F10375 shaft, L.H. end

1шт.

15

N3384

COLLAR CLAMP

COLLAR

1шт.

16

F77153

SPROCKET - (21T) Auger drive, driven

1шт.

17

F11689

X

CHAIN - auger drive (See chain page)

1шт.

18

F5530

SPROCKET - (30T) Auger drive (120 RPM) See O4929CS and O4930CS

1шт.

O4929CS

SPROCKET - (25T) Auger drive (100 RPM)

1шт.

O4930CS

SPROCKET - (37T) Auger drive (150 RPM)

1шт.

19

F10375

SHAFT - auger drive

1шт.

NUT - 3/4"-16 Gripco hex. jam (131-152) Pl. wshr. (95-12)

1шт.

20

O2237HT

KEY - F77153 sprocket to F10375 shaft

1шт.
