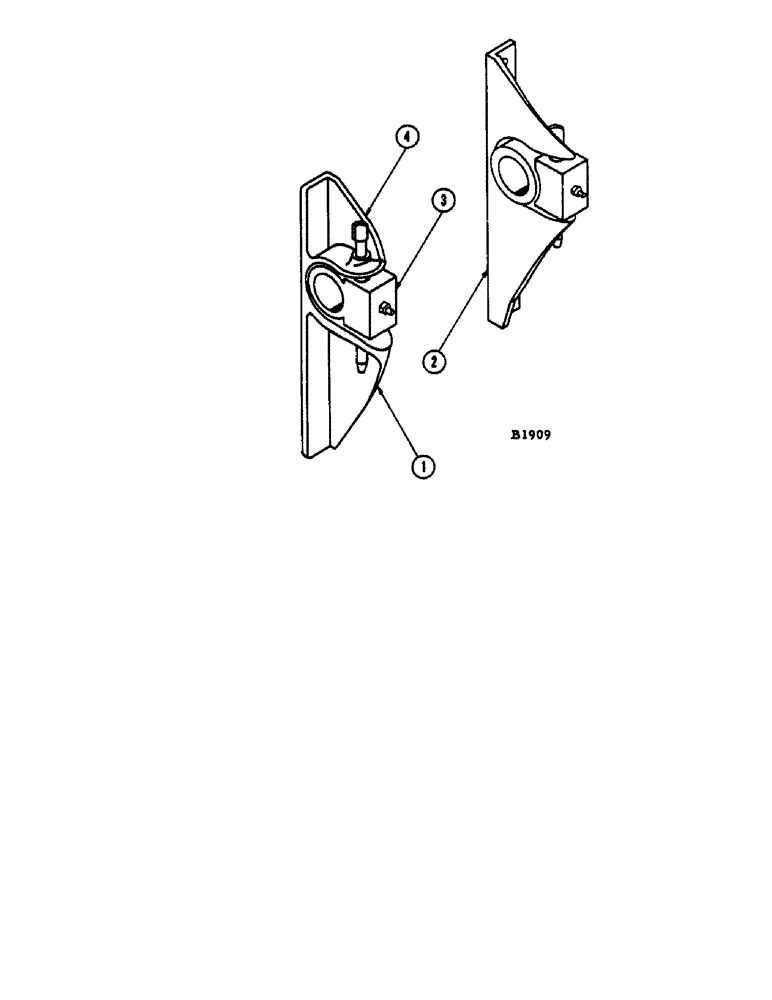

Запчасти Case IH 1060 (064) - HEADER PIVOT BRACKETS (58) - ATTACHMENTS/HEADERS

1

F1337

BRACKET - header pivot, R.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

2

F1338

BRACKET - header pivot, L.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

4шт.

3

F86049

GUIDE

BLOCK - header pivot bearing (Exh. then use F88589)

2шт.

F88589

GUIDE

BLOCK - header pivot bearing (Replaces F86049)

2шт.

FITTING - grease (219-36)

2шт.

4

F6266

PIN - locking

2шт.

A29054

HAIR PIN COTTER

COTTER - hair pin, for F6266 locking pin (Not shown)

2шт.
