(064[1]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE

Запчасти Case IH 1060 (064[1]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE (58) - ATTACHMENTS/HEADERS

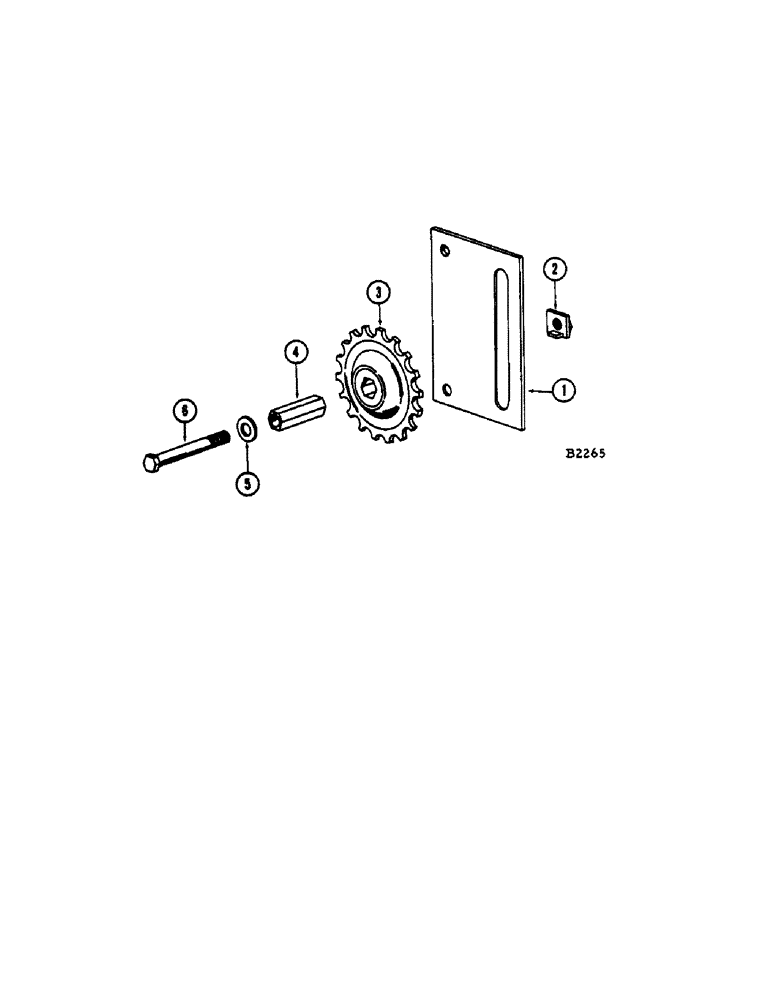

Схема запчастей Case IH 1060 - (064[1]) - TIGHTENER, AUGER AND MAIN HEADER DRIVE (58) - ATTACHMENTS/HEADERS
3
6
1
2
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F8346

BRACKET - tightener (Auger drive tightener only)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

2шт.

2

F75313

LOCKNUT - for ref. 5

2шт.

3

F12640

SPROCKET ASSY.

SPROCKET - idler

2шт.

4

F14551

STUD - (Replaces F12623)

2шт.

5

95-10

WASHER,5/8"

1шт.

6

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.F. hex.

2шт.
