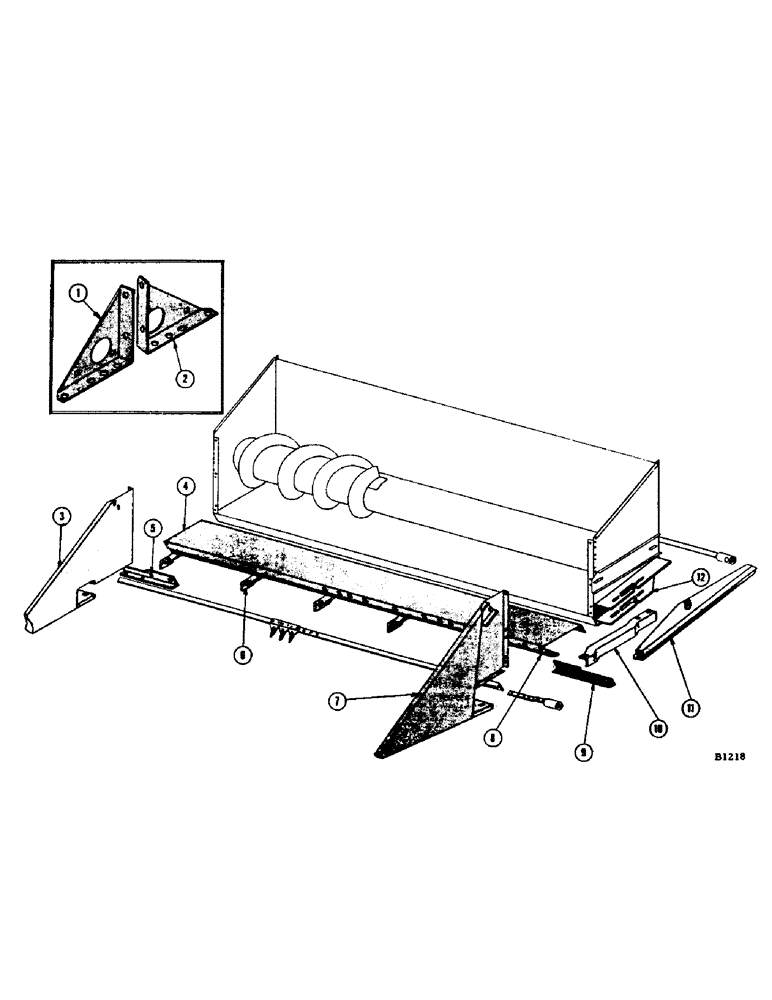

Запчасти Case IH 1060 (060) - SORGHUM GRAIN ATTACHMENT (58) - ATTACHMENTS/HEADERS

F8355

SHIM - (#20 ga.) Sickle hold down clip (Not shown) See sickle and cutter bar (Before 8334601)

33шт.

F8356

CLIP

- sickle hold down (Not shown) See sickle and cutter bar (Before #8334601)

16шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (111-322) nut (129-123)

32шт.

F13511

CLIP

- sickle hold-down (Not shown) #8334601 and after

16шт.

F8372

BEARING

CUP - bearing, swaybar (Not shown) See sickle drive

2шт.

F9392

SHIM - (#18 ga.) Sickle hold down clip (Not shown) See sickle and cutter bar (Before #8834601)

16шт.

F10241

GUSSET - support, for auger trough L.H. head (Not shown)

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (114-107) nut (129-122)

3шт.

WASHER - 5/16" plain (195-103)

3шт.

1

F9388

PLATE - cutter bar reinforcement, R.H. (Standard on all headers)

5шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" plain (195-103)

8шт.

2

F9389

PLATE - cutter bar reinforcement, L.H. (Standard on all headers)

5шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" plain (195-103)

8шт.

3

F77148

POINT - divider, R.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

3шт.

4

F9929

EXTENSION - auger trough floor (12 ft. header)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

26шт.

F12857

EXTENSION - auger trough floor (13 ft. header)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

26шт.

F8472

EXTENSION - auger trough floor (14 ft. header)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

26шт.

F9947

EXTENSION - auger trough floor (16 ft. header)

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

26шт.

5

F8484

SUPPORT - R.H., divider point shoe

1шт.

BOLT - 1/4" 5/8" rhd. sq. nk. (111-102) nut (129-101)

4шт.

6

F8482

ANGLE - R.H., auger trough floor extension support

5шт.

7

F77149

POINT - divider, L.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

3шт.

F86804

STRAP - divider (13 ft. header) See P. 80

2шт.

8

F9397

REINFORCEMENT - cutter bar rail (12 ft. header)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

10шт.

F12758

REINFORCEMENT - cutter bar rail (13 ft. header)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

10шт.

WASHER - 7/16" plain (195-105)

10шт.

F9391

REINFORCEMENT - cutter bar rail (14 ft. header)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

10шт.

WASHER - 7/16" plain (195-105)

10шт.

F9396

REINFORCEMENT - cutter bar rail (16 ft. header)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)

10шт.

WASHER - 7/16" plain (195-105)

10шт.

9

F8485

SUPPORT - L.H., divider point shoe

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

4шт.

10

F8483

ANGLE - L.H., auger trough floor extension support

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-317) nut (129-103)

2шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) nut (129-103)

2шт.

WASHER - 7/16" plain (195-105)

2шт.

11

F86816

SWAYBAR

1шт.

F18852

RUBBER BUSHING

PIVOT

2шт.

F8370

BALL

2шт.

12

F86817

SUPPORT - swaybar

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-215) nut (129-102)

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (114-107) nut (129-122)

2шт.

WASHER - 5/16" plain (195-103)

3шт.
