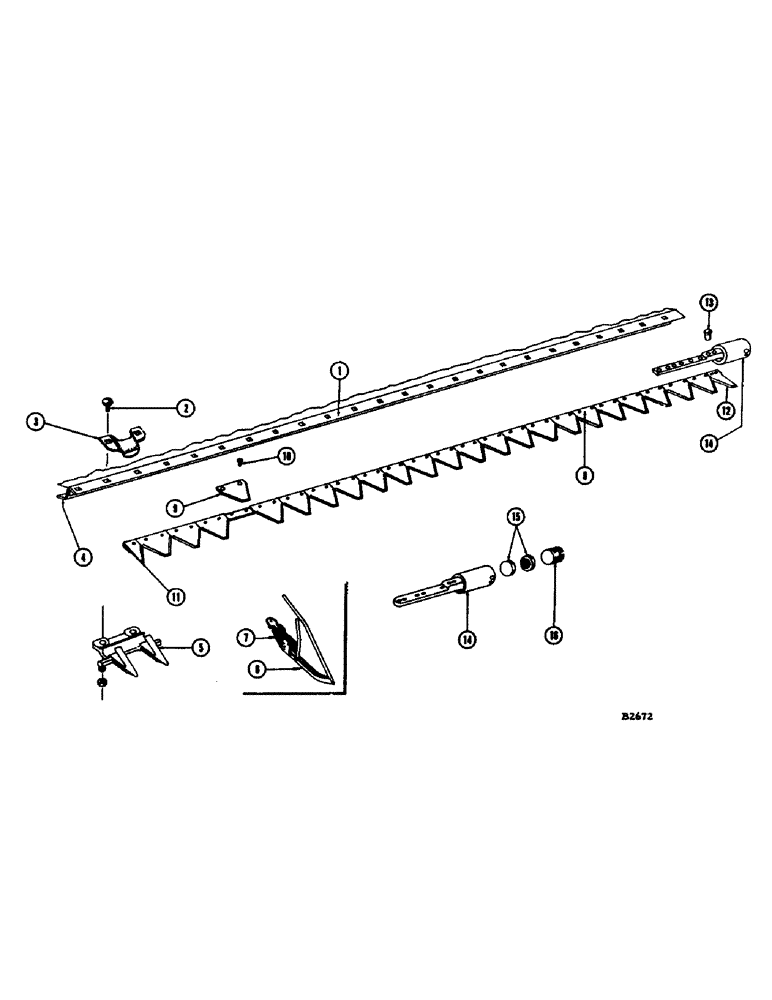

Запчасти Case IH 1060 (059A) - SICKLE AND CUTTER BAR, 16 FOOT, 18 FOOT, SERIAL NUMBER 8334601 AND AFTER (58) - ATTACHMENTS/HEADERS

1

F8583

RAIL - cutter bar, 16 ft. header

1шт.

F10325

RAIL - cutter bar, 18 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

16шт.

2

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. (Gr. 5) Sickle guard 32-16 ft., and 36-18 ft.

1шт.

111-343

BOLT

- 3/8" x 1" N.F. rhd. sq. nk. (Gr. 5) Sickle guard 32-16 ft. and 36-18 ft.

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. and lockwasher (92-6)

1шт.

3

F13511

CLIP

- sickle hold down (16-16 ft. and 18-18 ft. header)

1шт.

4

F9396

REINFORCEMENT - for 16 ft. cutter bar rail, F8583

1шт.

F10324

REINFORCEMENT - for 18 ft. cutter bar rail, F10325

1шт.

5

F3154

GUARD

- sickle, 31-16 ft. and 35-18 ft.

1шт.

F3153

GUARD - sickle, L.H. end

1шт.

6

F84171

GUARD - pickup, grain saving (Special)

1шт.

7

A30455

SPRING

1шт.

8

F92619

KNIFE ASSY

SICKLE - 16 ft. (w/63-MT944S sections) See F96334 & F92618

1шт.

9

MT944S

KNIFE SECTION

SECTION - under serrated (Std.)

1шт.

10

Z1690

RIVET

- (#5-1/2" x 9/16" rhd.) Sections to bar (1 lb. pkg.)

1шт.

11

F22513

CUTTER BAR

HALF SECTION - smooth (See F59129)

1шт.

12

F13701

PLATE - filler

1шт.

13

Z1716

RIVET

- (#5-1/2" x 1" rhd.) For riveting sections to sickle head (1 lb. pkg.)

1шт.

14

F77330

HEAD

- sickle

1шт.

15

A26629

BEARING

- pitman socket (1 each side of head)

2шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. (For F77330 head)

1шт.

F92618

TOOL

SICKLE - 16 ft. (w/63-T13010 sections)

1шт.

T13010

KNIFE SECTION

SECTION - under serrated (Chrome plated)

63шт.

Also includes ref. 10, 11, 12, 13 and 14

1шт.

F96334

SICKLE - 16 ft. (With 63-O14295S sections)

1шт.

F88171

KNIFE ASSY

SICKLE - 18 ft. (With 71-O14295S sections)

1шт.

O14295S

KNIFE SECTION

SECTION - top serrated (See F59106)

1шт.

Also includes ref. 10, 11, 12, 13, and 14

1шт.

F59106

KNIFE SECTION

SECTION - top serrated (Chrome plated) Special

1шт.

T13009

KNIFE SECTION

SECTION - smooth (Chrome plated) Special

1шт.

F59129

HALF SECTION - smooth (Chrome plated) Special

1шт.

T13489

RIVET

- (#5-1/2 x 9/16" rhd. zinc plated) Sections to bar (1 lb. pkg.)

1шт.
