Запчасти Case IH 1060 (057A) - SICKLE AND CUTTER BAR, 12 FOOT, 13 FOOT, 14 FOOT, SERIAL NUMBER 8334601 AND AFTER (58) - ATTACHMENTS/HEADERS

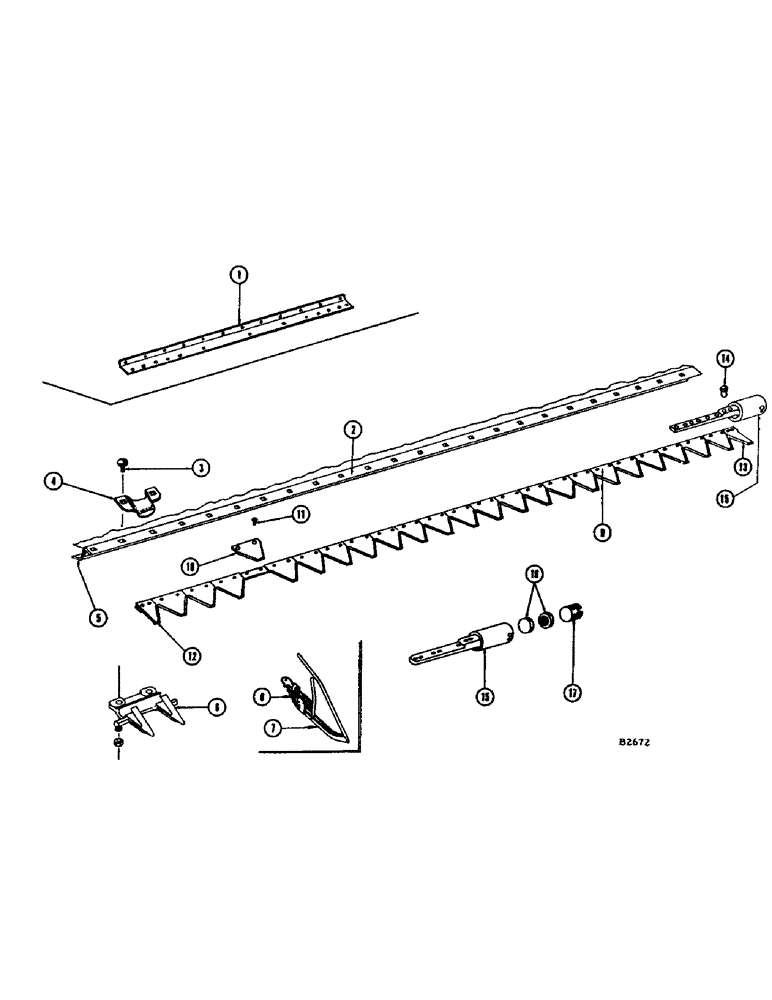

Схема запчастей Case IH 1060 - (057A) - SICKLE AND CUTTER BAR, 12 FOOT, 13 FOOT, 14 FOOT, SERIAL NUMBER 8334601 AND AFTER (58) - ATTACHMENTS/HEADERS
9
2
14
1
11
15
17
1
4
6
15
8
12
7
5
13
16
10

Артикул

Название

Примечание

Количество

1

F14136

ANGLE - finger wiper (12 ft. pickup header)

2шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103)

12шт.

2

F9069

RAIL - cutter bar, 12 ft. header

1шт.

F12759

RAIL - cutter bar, 13 ft. header

1шт.

F8352

RAIL - cutter bar, 14 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

12шт.

F11926

RAIL - cutter bar (Special for extended cutter bar 14 ft.)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

26шт.

3

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. (Gr. 5) sickle guard 24-12 ft., 26-13 ft., and 28-14 ft. header

1шт.

111-343

BOLT

- 3/8" x 1" N.F. rhd. sq. nk. (Gr. 5) sickle guard 24-12 ft. 26-13 ft., and 28-14 ft. header

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. and lockwasher (92-6)

1шт.

4

F13511

CLIP

- sickle hold down (12-12 ft., 13-13 ft. and 14-14 ft. hdr.)

1шт.

5

F9397

REINFORCEMENT - for 12 ft. cutter bar rail F9069

1шт.

F12758

REINFORCEMENT - for 13 ft. cutter bar rail F12759

1шт.

F9391

REINFORCEMENT - for 14 ft. cutter bar rail F8352

1шт.

6

F3154

GUARD

- sickle, 23-12 ft., 25-13 ft., and 27-14 ft.)

1шт.

F3153

GUARD - sickle, L.H. end

1шт.

7

F84171

GUARD - pickup, grain saving (Special)

1шт.

8

A30455

SPRING

1шт.

9

F92613

SICKLE - 12 ft. (w/47-MT944S sections) See F88170 & F92612

1шт.

F92615

KNIFE ASSY

SICKLE - 13 ft. (w/51-MT944S sections) See F96332 & F92614

1шт.

F92617

KNIFE ASSY

SICKLE - 14 ft. (w/55-MT944S sections) See F96333 & F92616

1шт.

10

MT944S

KNIFE SECTION

SECTION - underserrated (Std.)

1шт.

11

Z1690

RIVET

- (#5-1/2" x 9/16" rhd.) sections to bar (1 lb. pkg.)

1шт.

12

F22513

CUTTER BAR

HALF SECTION - smooth (See F59129)

1шт.

13

F13701

PLATE - filler

1шт.

47-418

RIVET - 1/4" x 1-1/8" fl. hd.

2шт.

14

Z1716

RIVET

- (#5-1/2" x 1" rhd.) for riveting sections to sickle head (1 lb. pkg.)

1шт.

15

F77330

HEAD

- sickle

1шт.

16

A26629

BEARING

- Pitman socket (1 each side of head)

2шт.

17

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting, Pitman

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str. (For F77330 head)

1шт.

F92612

SICKLE - 12 ft. (w/47-T13010 sections)

1шт.

F92614

KNIFE ASSY

SICKLE - 13 ft. (w/51-T13010 sections)

1шт.

F92616

SICKLE - 14 ft. (w/55-T13010 sections)

1шт.

T13010

KNIFE SECTION

SECTION - under serrated (Chrome plated) Also includes ref. 11, 12, 13, 14 and 15

1шт.

F88170

SICKLE - 12 ft. (w/47-O14295S sections)

1шт.

F96332

SICKLE - 13 ft. (w/51-O14295S sections)

1шт.

F96333

SICKLE - 14 ft. (w/55-O14295S sections)

1шт.

O14295S

KNIFE SECTION

SECTION - top serrated (See F59106) Also includes ref. 11, 12, 13, 14 and 15

1шт.

F59106

KNIFE SECTION

SECTION - top serrated (Chrome plated) special

1шт.

T13009

KNIFE SECTION

SECTION - smooth (Chrome plated) special

1шт.

F59129

HALF SECTION - smooth, (Chrome plated) special

1шт.

T13489

RIVET

- #5-1/2" x 9/16" rhd. plated (1 lb. pkg.) chrome sections

1шт.

Выбрано товаров: 45
