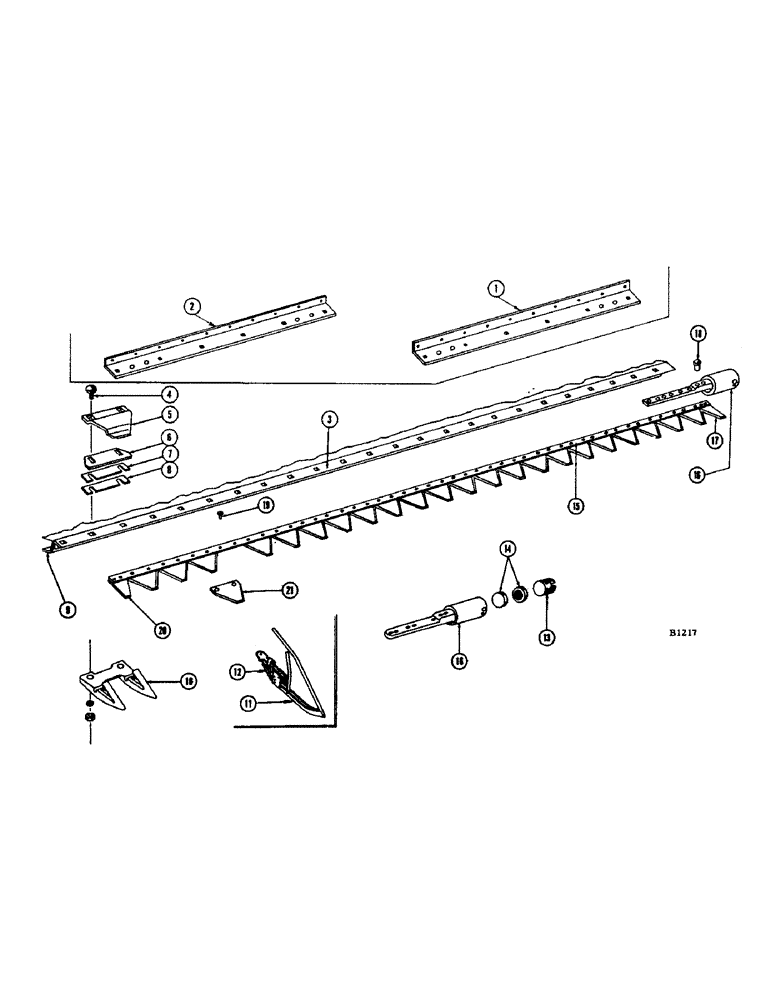

Запчасти Case IH 1060 (056) - SICKLE AND CUTTER BAR, 12 FOOT, 13 FOOT, 14 FOOT, BEFORE SERIAL NUMBER 8334601 (58) - ATTACHMENTS/HEADERS

1

F10951

PLATE - filler, L.H. (12 ft. pickup header) See F14136

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

10шт.

2

F10952

PLATE - filler, R.H. (12 ft. pickup header) See F14136

1шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk. and nut (129-103)

10шт.

F14136

ANGLE - finger wiper (12' pickup hdr.) Replaces F10951 and F10952

2шт.

3

F9069

RAIL - cutter bar, 12 ft. header

1шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

12шт.

F12759

RAIL - cutter bar, 13 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

12шт.

F8352

RAIL - cutter bar, 14 ft. header

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

6шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 1", G2

12шт.

F11926

RAIL - cutter bar (Special for extended cutter bar) See F8352

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , and nut (25-105) Short NK, 5/16"-18 x 3/4", G2

26шт.

4

111-321

SQUARE BOLT,Short Nk, 3/8" - 24 x 1 1/4", Gr 5

BOLT - 3/8" x 1-1/4" N.F. rhd. sq. nk. (Gr. 5) Sickle guard, 44-12 ft., 48-13 ft. and 52-14 ft. header

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. and L.W. (92-6)

1шт.

5

F8356

CLIP

- sickle hold down (12-12 ft., 13-13 ft. and 14-14 ft. header)

1шт.

6

F7098

LARGE PLATE

PLATE - chaffing (12-12 ft., 13-13 ft. and 14-14 ft. header)

1шт.

7

F8355

SHIM - (24-12 ft., 26-13 ft. and 28-14 ft. header)

1шт.

8

F9392

SHIM - (12-12 ft., 13-13 ft. and 14-14 ft. header)

1шт.

9

F9397

REINFORCEMENT - for 12 ft. cutter bar rail F9069

1шт.

F12758

REINFORCEMENT - for 13 ft. cutter bar rail F12759

1шт.

F9391

REINFORCEMENT - for 14 ft. cutter bar rail F8352

1шт.

10

F3146

GUARD

- sickle (Replaces F3132) 23-12 ft., 25-13 ft. and 27-14 ft.

1шт.

F3147

GUARD

- sickle, L.H. end (Replaces F3133)

1шт.

11

F84171

GUARD - pickup, grain saving (Special)

1шт.

12

A30455

SPRING

1шт.

13

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

- adjusting

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" str., for head

1шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , For head 3/32" x 1/2"

2шт.

14

A26629

BEARING

2шт.

15

F79565

SICKLE - 12 ft. (w/F11304 sections) See F88038

1шт.

F86793

KNIFE ASSY

SICKLE - 13 ft. (w/F11304 sections) See F88039

1шт.

F79574

X

SICKLE - 14 ft. (w/F11304 sections) See F88040

1шт.

16

F77330

HEAD

- sickle

1шт.

17

F9956

PLATE

- filler, L.H. end of sickle

1шт.

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- (1/4" x 1-1/8" rhd.) Sickle head

2шт.

18

Z1691

RIVET

- (#5-1/2" x 7/8" rhd.) Sickle head to bar (1 lb. pkg.)

5шт.

19

Z1690

RIVET

- (#5-1/2" x 9/16" rhd.) Sections to bar (1 lb. pkg.)

1шт.

20

F9955

LARGE PLATE

PLATE - filler, R.H. end of sickle

1шт.

21

F11304

KNIFE SECTION

SECTION - under serrated (47-12 ft., 52-13 ft., 56-14 ft.)

1шт.

F12506

SECTION - top serrated

1шт.

F88038

SICKLE - 12 ft. (w/F14437 sections)

1шт.

F88039

SICKLE - 13 ft. (w/F14437 sections)

1шт.

F88040

SICKLE - 14 ft. (w/F14437 sections)

1шт.

F14437

KNIFE SECTION

SECTION - underserrated, chrome plated also includes ref. 15, 18, 19, 20 and 21

1шт.

F14477

KNIFE SECTION

SECTION - top serrated, chrome plated

1шт.

T13492

RIVET

- #5-1/2 x 7/8" rhd. plated (1 lb. pkg.) Chrome sections

1шт.

T13489

RIVET

- #5-1/2 x 9/16" rhd. plated (1 lb. pkg.) Chrome sections

1шт.
