Запчасти Case IH 1060 (052) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS

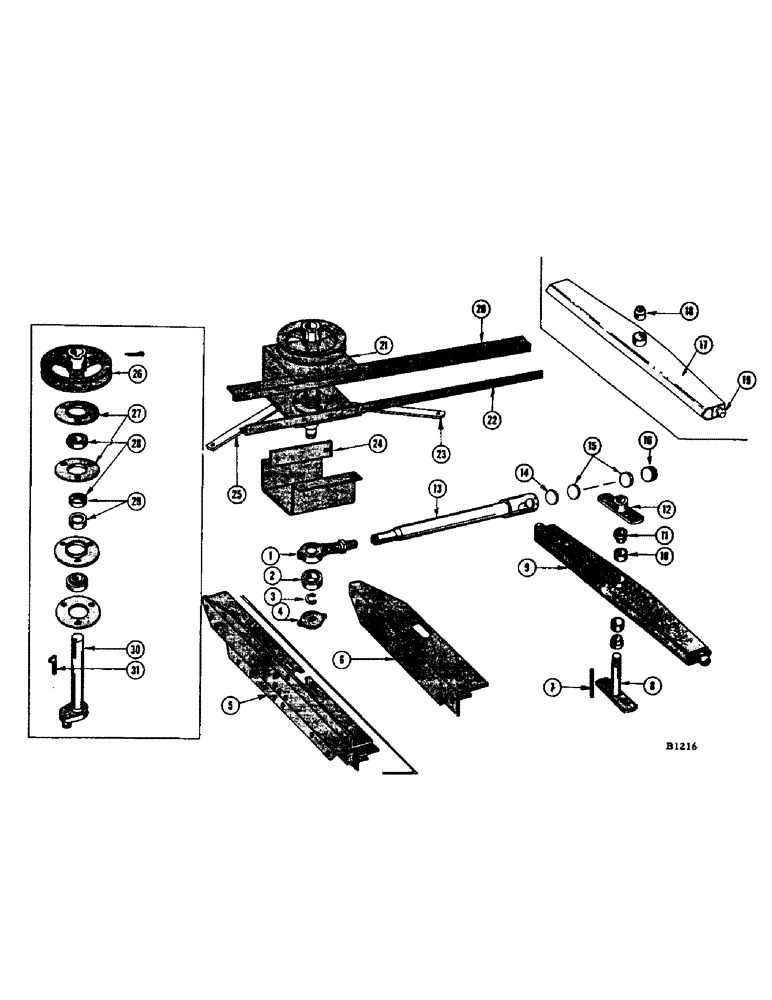

Схема запчастей Case IH 1060 - (052) - SICKLE DRIVE (58) - ATTACHMENTS/HEADERS
1
24
19
22
29
25
13
8
27
9
4
26
3
18
2
15
5
11
28
6
21
12
7
23
26
18
17
31
16
30
14

Артикул

Название

Примечание

Количество

1

F3087

SPARE PART Pitman

1шт.

FITTING - 1/8" str. (219-1)

1шт.

NUT - 3/4" N.F. hex. jam (25-1512)

1шт.

2

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

Pitman

1шт.

3

O6563AB

X

SNAP RING - Pitman bearing

1шт.

4

O2400B

SPARE PART Pitman bearing

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) L.W. (92-5)

2шт.

5

F86073

SPARE PART PLATE - support, sway bar (Extended cutter bar) See ref. 6

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

2шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5)

3шт.

6

F86798

SPARE PART PLATE, swaybar

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516)

4шт.

BOLT - 5/16" x 1-1/8" N.F. hex. (14-518)

3шт.

NUT - (25-115) L.W. (92-5) plain wshr. (95-5)

7шт.

7

F10665

SPARE PART For ref. 8 and 11

1шт.

8

F78922

SHAFT

Pivot, swaybar (For extended cutter bar)

1шт.

NUT - 7/8" N.F. hex. (25-1114) jam nut (25-1514)

1шт.

O906AB

SPARE PART (1-1/8" O.D. x 1-1/32" I.D. x 12 ga.) pivot shaft not shown

1шт.

9

F78896

SPARE PART SWAYBAR - sickle drive (Extended cutter bar)

1шт.

10

F8372

BEARING

Bearing, sway bar

2шт.

FITTING - 1/8" (219-5)

1шт.

11

F8373

CONE

Bearing, sway bar

2шт.

12

F78483

BUSHING

PLATE - adjustment (Extended cutter bar)

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

4шт.

WASHER - 1/2" plain (95-8)

8шт.

13

F77087

PITMAN

Sickle drive

1шт.

PIN - 3/32" x 1/2" cotter (132-24)

2шт.

14

F9513

BLANK-OFF PLUG

Pitman (To prevent grease from entering tube)

1шт.

15

A26629

BEARING

Pitman socket (Set of 2 each side of head)

4шт.

16

F8360

ADJUSTMENT SCREW,1 5/16" - 18 x 3/4"

Adjusting, Pitman

1шт.

FITTING - 1/8" str. (219-1)

1шт.

17

F86796

SPARE PART SWAYBAR - sickle drive (Replaced by F88370 when stock is exhausted)

1шт.

F88370

SPARE PART SWAYBAR - sickle drive (Replaces F86796)

1шт.

18

F18852

RUBBER BUSHING

PIVOT

2шт.

19

F8370

BALL

2шт.

F12763

SPARE PART (Not shown)

1шт.

A31186

BOOT

(Not shown)

2шт.

BOLT - 7/8" x 6" N.F. hex. (14-1496) jam nut (25-1514) and nut (25-114)

1шт.

WASHER - plain (95-14)

2шт.

O3885A

WASHER

For ref. 17, not shown

2шт.

20

F9055

ANGLE - sickle drive support, upper (12' header)

1шт.

F12749

ANGLE - sickle drive support, upper (13' header)

1шт.

F8295

ANGLE - sickle drive support, upper (14' header)

1шт.

F8577

ANGLE - sickle drive support, upper (16' and 18' headers)

1шт.

21

F10808

SPARE PART Bearing, sickle drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

8шт.

22

F11485

ANGLE - sickle drive support, lower (12' header)

1шт.

F12752

ANGLE - sickle drive support, lower (13' header)

1шт.

F10809

SPARE PART ANGLE - sickle drive support, lower (14' header)

1шт.

F10810

SPARE PART ANGLE - sickle drive support, lower (16' and 18' headers)

1шт.

23

F12277

SPARE PART BRACE - sickle drive shield (12' and 13' headers)

1шт.

23

F12277

SPARE PART BRACE - sickle drive shield (12' and 13' headers)

1шт.

BOLT - LH sickle drive shield (See feeder spout braces illustration)

1шт.

BOLT - 3/8" x 7/8" hex. (14-614) nut (25-116)

2шт.

24

F8366

SHIELD - sickle drive

1шт.

BOLT - 1/4" x 5/8" N. F. hex. (14-410) nut (25-114

4шт.

F10367

SHIELD - sickle drive (Heavy duty headers)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-116)

4шт.

25

F10786

SPARE PART RH sickle drive shield (See feeder spout braces)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

2шт.

26

F1260

SPARE PART (6-3/4" O.D. sickle drive (12', 13', 14', and 16' headers)

1шт.

PIN-1/4" x 2-1/2" cotter (132-157)

1шт.

F1302

SHEAVE

(7-1/2" O.D.) sickle drive (18 ft. headers)

1шт.

PIN - 1/4 x 2-1/2" cotter (132-157)

1шт.

27

F19270

FLANGE

(Replaces F62225)

4шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

6шт.

28

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

Drive shaft

2шт.

29

F62226

COLLAR

1шт.

30

F77084

SPARE PART Crank, sickle drive

1шт.

31

O164CU

SPARE PART GIB - (2-316" long) sickle drive sheaves to F77084 shaft

1шт.

F9587

SPARE PART Sickle drive (12' header) Not shown

1шт.

F12765

V-BELT

Sickle drive (13' header) Not shown

1шт.

F8398

V-BELT

Sickle drive (14' header) Not shown

1шт.

F8819

V-BELT

Sickle drive (16' and 18' headers) Not shown

1шт.
