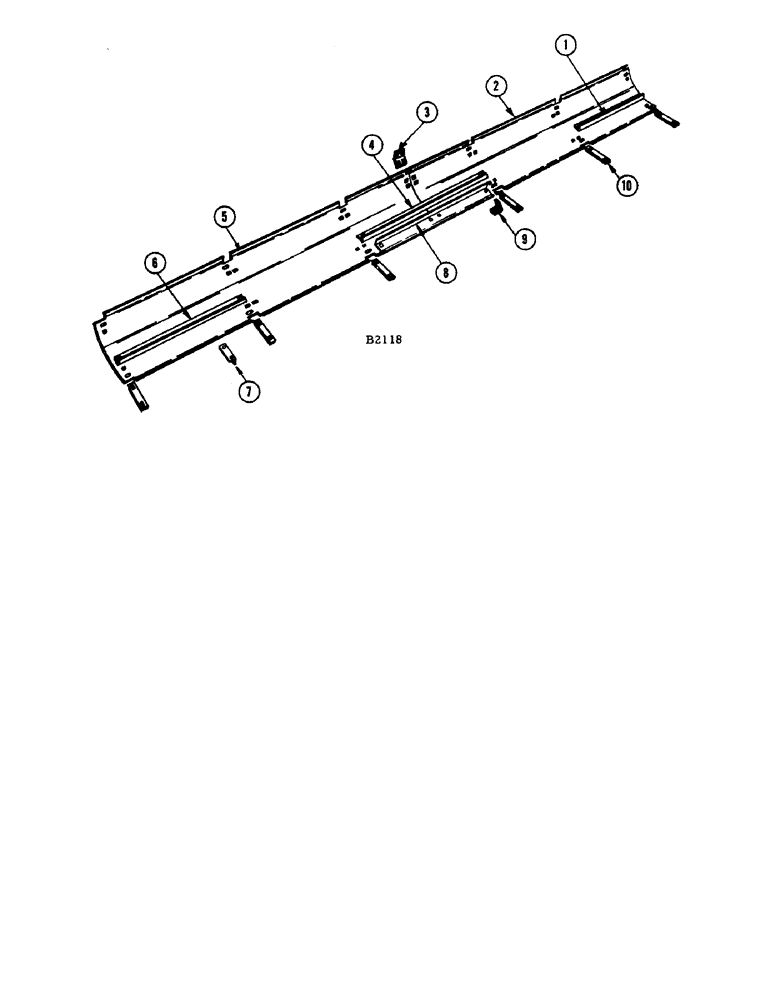

Запчасти Case IH 1060 (050) - 13 FOOT AND 14 FOOT HEADER SKID ATTACHMENT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F12834
REINFORCEMENT - outer L.H. (13' header)
1шт.
F12407
REINFORCEMENT - outer, L.H. (14' header)
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
2шт.
2
F12832
PLATE - skid, L.H. (13' header)
1шт.
F12405
PLATE - skid, L.H. (14' header)
1шт.
3
F19989
SPLICE - skid plate
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
4шт.
4
F12408
REINFORCEMENT - inner
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
4шт.
5
F12833
PLATE - skid, R.H. (13' header)
1шт.
F12406
PLATE - skid, R.H. (14' header)
1шт.
6
F12835
REINFORCEMENT - outer, R.H. (13' header)
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
2шт.
F12413
REINFORCEMENT - outer, R.H. (14' header)
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
2шт.
7
F12412
SUPPORT
1шт.
BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)
2шт.
8
F12409
PLATE - splice
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
8шт.
9
F12411
CLIP - rear
6шт.
BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)
4шт.
BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122)
2шт.
BOLT - 3/8" x 7/8" N.F. hex. (114-218) L.W. (192-21) And plain washer (195-104)
6шт.
10
F12410
CLIP - front
6шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (111-302) nut (129-103)
12шт.
Выбрано товаров: 25
