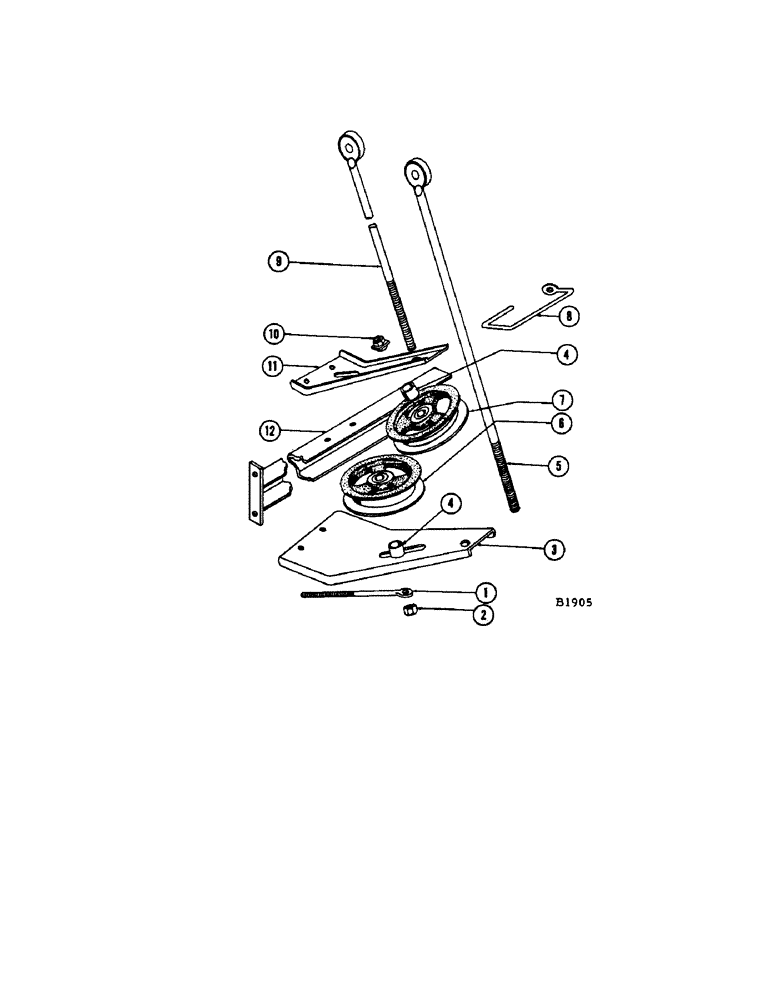

Запчасти Case IH 1060 (050[1]) - SICKLE DRIVE IDLER AND TIGHTENER (58) - ATTACHMENTS/HEADERS

1

F9585

EYEBOLT - sickle drive belt tightener

1шт.

NUT - 5/8" N.C. hex. (25-1010)

2шт.

2

25-1010

NUT,5/8"-11, G5

2шт.

3

F79674

BRACKET

- lower idler

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

4

F10566

SPACER - (7/8" O.D. x 2-1/32" long) For ref. 6 and 7

2шт.

WASHER - 5/8" std. (195-41)

2шт.

5

F11434

EYEBOLT - lower bracket

1шт.

NUT - 7/16" N.F. hex. jam (25-157)

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

6

F86210

SHEAVE - lower idler, sickle drives

1шт.

F16246

BEARING, BALL

BEARING

1шт.

O3338BF

SNAP RING

1шт.

BOLT - 5/8" x 3" N.F. hex. (14-1048) nut (25-1110)

1шт.

7

F86211

SHEAVE - upper idler, sickle drive

1шт.

F16246

BEARING, BALL

BEARING

1шт.

O3338BF

SNAP RING

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex. (14-1036) L.W. (92-10)

1шт.

8

F11539

GUIDE - sickle drive belt

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

1шт.

9

F11433

EYEBOLT - upper bracket

1шт.

NUT - 7/16" N.F. hex. jam (25-157)

2шт.

BOLT -3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

10

F75313

LOCKNUT - for bolt of F86211 sheave (See ref. 7)

1шт.

11

F11431

BRACKET - upper idler

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

12

F79673

CHANNEL - support (12 ft. header)

1шт.

F79520

CHANNEL - support (13 ft. and 14 ft. headers)

1шт.

F79682

CHANNEL - support (16 ft. and 18 ft. headers)

1шт.
