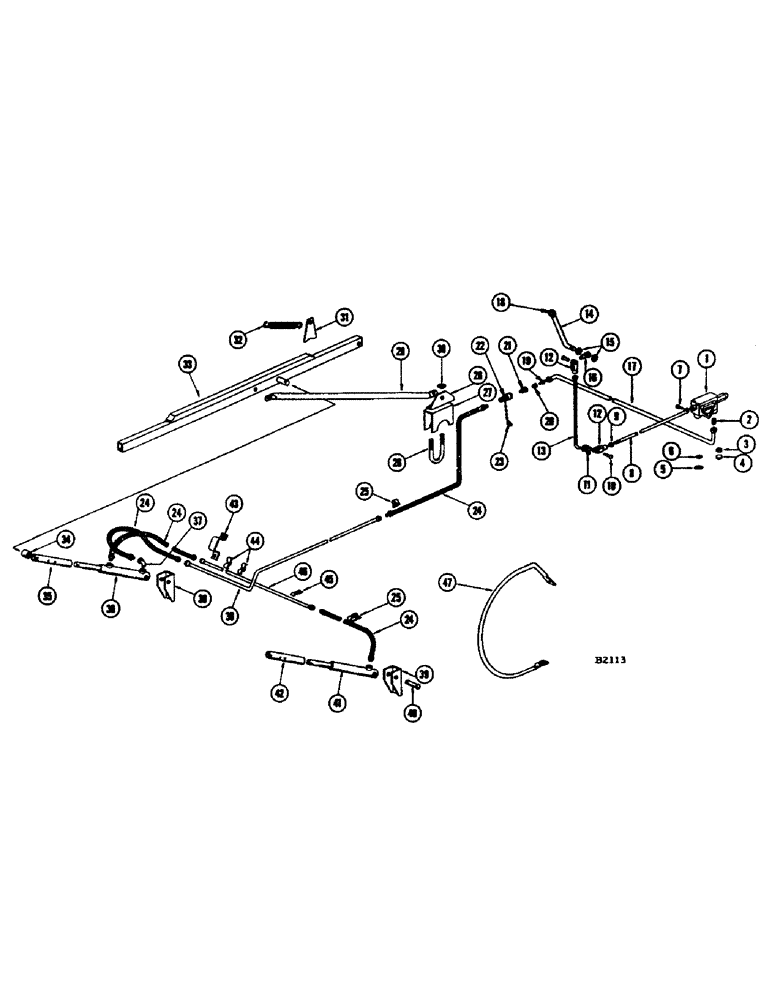

Запчасти Case IH 1060 (046) - HYDRAULIC REEL LIFT ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F77045

VALVE - (See F87262 page 258 - also, F87181 page 260)

1шт.

BOLT - 5/16" x 6-1/2" N.C. hex. (13-5104) L.W. (92-5)

3шт.

2

222-3001

CONNECTOR - 3/8" tube, Lenz #100-6-6 male

1шт.

3

F12260

ORIFICE - valve

1шт.

4

F8245

RETAINER - orifice, valve

1шт.

5

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - (3/32" x 1-1/2" I.D.) Valve body

1шт.

6

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING - (1/16" x 3/4" I.D. - 90 durometer) Valve body

10шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

1шт.

PIN - 3/32" x 3/4" cotter (132-26)

1шт.

8

F12435

ROD - bellcrank, valve

1шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" - 24 N.F. hex. jam

1шт.

10

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod 3/8" x 1.060"

2шт.

PIN - 3/32" x 3/4" cotter (132-26)

2шт.

11

F1082

BELLCRANK

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS

2шт.

13

F12381

ROD - bellcrank, steering column

1шт.

NUT - 3/8" N.F. jam (25-156)

1шт.

14

F13172

LEVER - control

1шт.

PIN - 1/8" x 3/4" cotter (132-46)

1шт.

15

195-29

WASHER,7/16"

- plain 7/16"

2шт.

16

F86484

ARM - lever (Replaced by F91843 when exh.)

1шт.

F91843

ARM - lever (Replaces F86484 when exh.)

1шт.

PIN - driv-loc (135-54)

1шт.

17

F13218

SCREW

LINE - hydraulic, Serial Range: valve-coupling

1шт.

18

F21683

KNOB

- lever control

1шт.

19

222-3000

CONNECTOR - 3/8" tube, Lenz #100-6, male

1шт.

20

F13219

SCREW

GROMMET

1шт.

21

F87147

NIPPLE - quick connect, Pioneer #4010-2

1шт.

22

F87146

COUPLER - quick connect, Pioneer #4050-2

1шт.

23

F87149

PLUG - dust, Pioneer #4005-2

1шт.

24

F12397

HOSE - hydraulic

4шт.

25

F12398

CLAMP - hose

3шт.

SCREW - 1/4" x 3/4" N.C. rhd. mach. (175-403) nut (129-101)

2шт.

WASHER - 1/4" plain (195-518) Lockwasher (192-19)

2шт.

26

F8341

"U"BOLT

2шт.

NUT - 3/8" N.F. hex. (129-123) L.W. (192-21)

4шт.

27

F8298

SUPPORT - torque tube

2шт.

28

F10558

BRACKET - brace anchor

2шт.

29

F86482

BRACE

2шт.

BOLT - 7/16" x 1-3/4" N.F. hex. (114-307)

2шт.

BOLT - 5/8" x 2-3/4" N.F. hex. (114-604) nut (129-127)

1шт.

BOLT - 5/8" x 6" N.F. hex. (114-617) nut (129-127)

1шт.

30

195-529

WASHER,7/16", SAE

- 7/16" flat

6шт.

31

F8314

SUPPORT - reel arm

2шт.

32

F12391

SPRING - reel idler

1шт.

33

F86480

ARM - L.H., reel support (Before #8357001, replaced by F88758 when stocks are exhausted)

1шт.

F88758

ARM - L.H., reel support (#8357001 and after) Replaces F86480

1шт.

F86481

ARM - R.H., reel support (Before #8357001; Replaced by F88759 when stocks are exhausted)

1шт.

F88759

ARM - R.H., reel support (#8357001 and after) Replaces F86481

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

BOLT - 7/16" x 2-3/4" N.F. hex. (114-305)

1шт.

NUT - (129-124)

2шт.

34

O727HT

SPACER - (Before #9311400)

2шт.

35

F12403

EXTENSION - ram, R.H. (Before #8334601)

1шт.

F14824

EXTENSION - ram, R.H. (#8334601 and after)

1шт.

F88631

CYLINDER ASSY.

RAM - R.H., reel lift (Replaces F584728)

1шт.

36

F84728

PUSH ROD

RAM - R.H., reel lift (Replaced by F88631 when exhausted)

1шт.

F88626

COUPLING - restricted

1шт.

37

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Parker

1шт.

38

F86487

LINE - hydraulic, feeder spout (12' header)

1шт.

F86838

LINE - hydraulic, feeder spout (13' header)

1шт.

F86489

LINE - hydraulic, feeder spout (14' header)

1шт.

F86491

LINE - hydraulic, feeder spout (16' header)

1шт.

F86493

LINE - hydraulic, feeder spout (18' header)

1шт.

39

F12401

BRACKET - ram mounting

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

4шт.

WASHER - 3/8" plain (195-525) L.W. (192-21)

4шт.

40

MT2854S

PIN

2шт.

PIN - 1/16" x 1" cotter (132-91)

2шт.

41

F86479

RAM - L.H., reel lift

1шт.

42

F12402

EXTENSION - ram, L.H. (Before #8334601)

1шт.

F14825

EXTENSION - ram, L.H. (#8334601 and after)

1шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (114-411) And locknut - 1/2" Gripco (131-168)

1шт.

43

F12399

CLAMP - double hose

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

44

F12067

CLIP - double, hydraulic line

3шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) nut (129-121)

3шт.

45

A27033

CLIP - hydraulic line

2шт.

46

F86486

LINE - hydraulic, auger trough (12' header)

1шт.

F86837

LINE - hydraulic, auger trough (13' header)

1шт.

F86488

LINE - hydraulic, auger trough (14' header)

1шт.

F86490

LINE - hydraulic, auger trough (16' header)

1шт.

F86492

LINE - hydraulic, auger trough (18' header)

1шт.

47

F86494

LOOP - divider (Use with pickup reels)

2шт.

F87180

SEAL

KIT - seal, for ref. 36 (Includes 1 backup washer, 1 seal washer, 1 piston ring and 4 "O" rings) Not shown

1шт.

F86628

KIT

- seal, for ref. 41 (Includes 1 backup washer, 1 "O" ring, 1 seal, 1 lock ring, 1 seal washer and 1 screw) Not shown

1шт.
