Запчасти Case IH 1060 (045A) - SICKLE DRIVE MUD SHIELD ATTACHMENT, SERIAL NUMBER 8311400 AND AFTER (58) - ATTACHMENTS/HEADERS

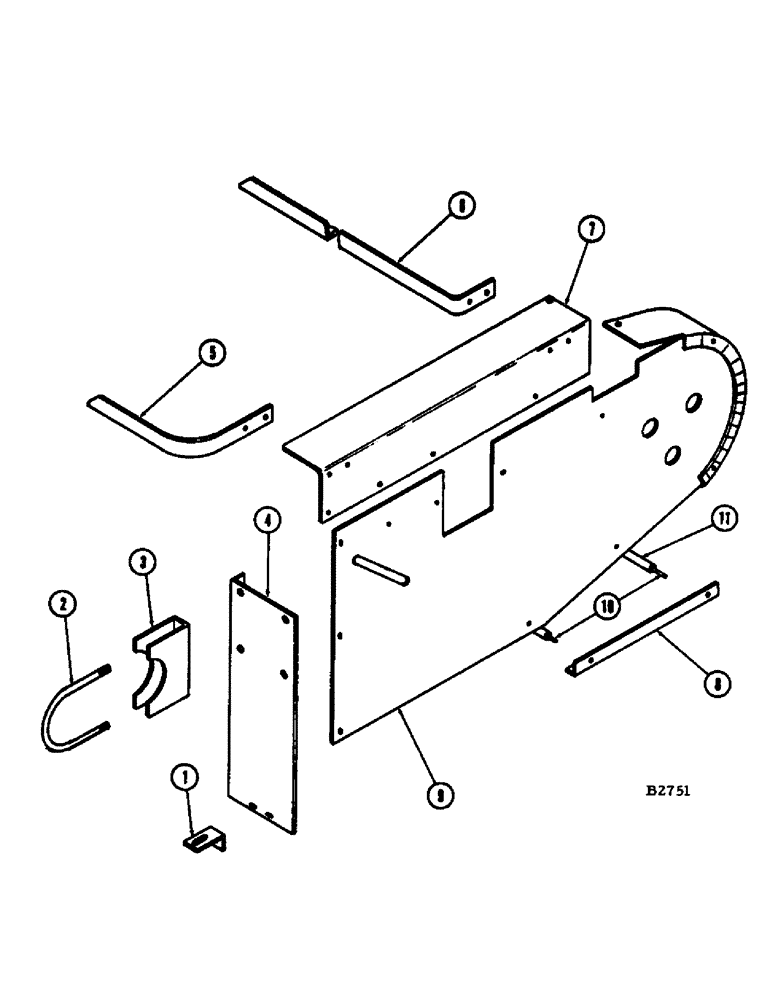

Схема запчастей Case IH 1060 - (045A) - SICKLE DRIVE MUD SHIELD ATTACHMENT, SERIAL NUMBER 8311400 AND AFTER (58) - ATTACHMENTS/HEADERS
10
9
8
2
3
1
11
8
4
7
5

Артикул

Название

Примечание

Количество

1

F11586

BRACE - front shield

1шт.

2

F8341

"U"BOLT - torque tube support to front section

2шт.

NUT - 3/8" N.F. hex. (192-123) Lockwasher (192-21)

4шт.

3

F8298

SUPPORT - torque tube

2шт.

4

F11585

FRONT SECTION - shield

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

1шт.

WASHER - 1/4" U.S. std. (195-102) Lockwasher (192-19)

1шт.

5

F11578

SUPPORT - front, top section shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102)

1шт.

NUT - 5/16" N.F. hex. (129-122) Lockwasher (192-20)

1шт.

6

F11579

SUPPORT - rear, top section shield

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102)

3шт.

NUT - 5/16" N.F. hex. (129-122) Lockwasher (192-20)

3шт.

7

F14921

TOP SECTION - shield

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105)

4шт.

NUT - 5/16" N.F. hex. (129-122) Lockwasher (192-20)

4шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (111-112) nut (129-101) Lockwasher (192-19)

1шт.

8

F14924

STIFFENER - side section

1шт.

9

F88438

SIDE SECTION - shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2)

7шт.

NUT - N.F. hex. (129-121) Lockwasher (192-19)

7шт.

10

F12169

ROD - side shield spacer

2шт.

NUT - 5/16" N.F. hex. (129-122) Lockwasher (192-20)

4шт.

11

F14925

SPACER - side shield

2шт.

Выбрано товаров: 24
