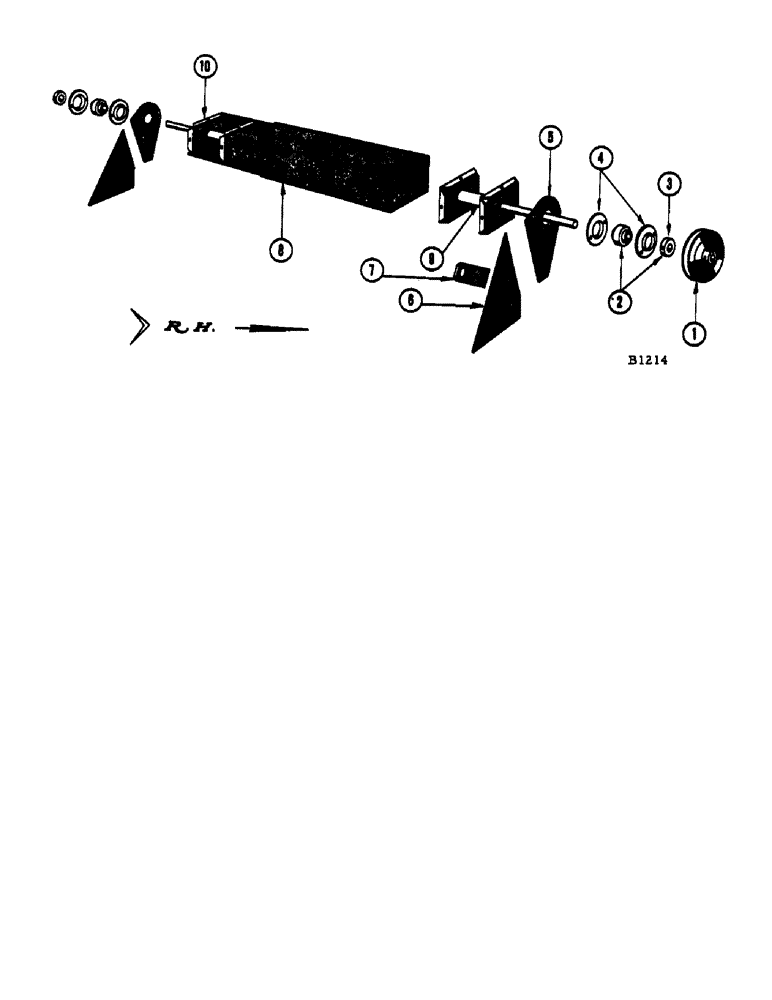

Запчасти Case IH 1060 (044) - FEEDER ROLL ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

F1265

SHEAVE - (4-5/8" O.D.) Beater drive, driven

2шт.

PIN - 1/4" x 1-1/2" driv-loc (135-359)

2шт.

F9640

"V"BELT - beater drive (Not shown)

1шт.

2

3074CSA

BALL BEARING

- beater shaft

2шт.

3

F62108

COLLAR

1шт.

4

F9417

FLANGE

- for ref. 2

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

5

F9632

ARM - upper, beater support

2шт.

6

F9631

BRACKET - beater support

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" plain (195-103)

8шт.

7

F9633

BRACKET - windguard pipe (See F9981)

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

4шт.

8

F77696

BEATER

1шт.

9

F77698

SHAFT - (13" long) Stub, R.H. assembly

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.

10

F77697

SHAFT - (9-5/16" long) Stub, L.H. assembly

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

4шт.
