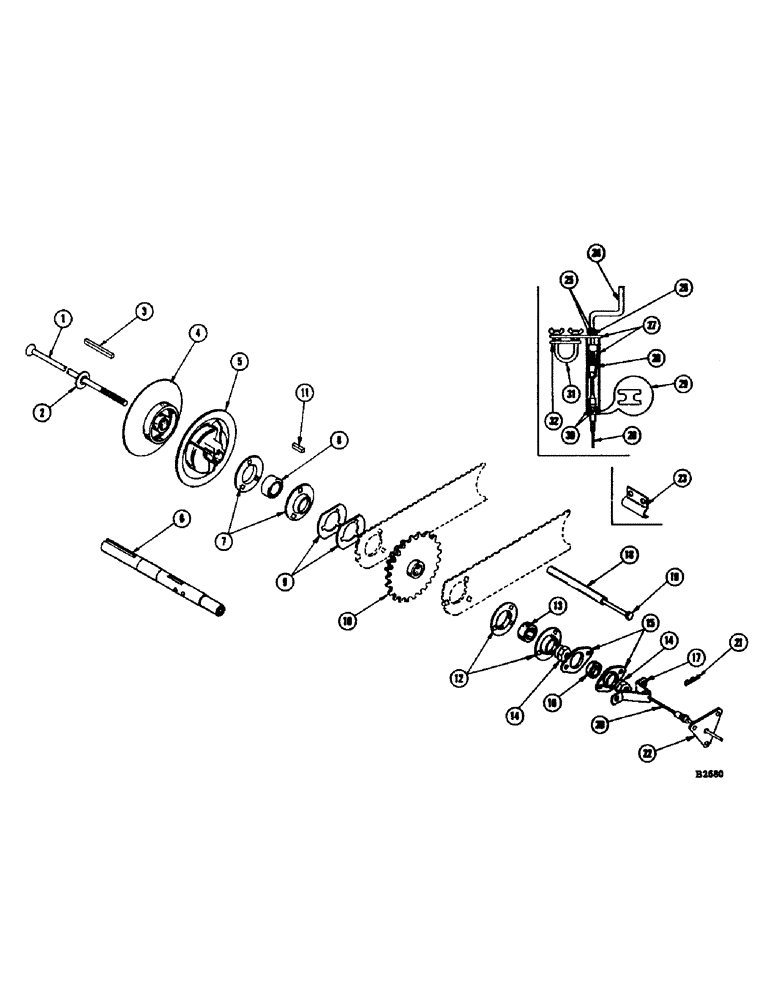

Запчасти Case IH 1060 (040) - REMOTE CONTROLLED VARIABLE SPEED DRIVE, FOR STANDARD REELS AND CASE DRAPER PICKUPS (58) - ATTACHMENTS/HEADERS

1

F13524

SCREW

SHAFT - for ref. 6

1шт.

2

F13523

SCREW

WASHER - thrust

1шт.

3

O818B

KEY

- 5/16" x 5/16" x 3-3/4", for ref. 4, 5 and 6

1шт.

4

F1971

SHEAVE HALF - movable

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" grease

1шт.

5

F1970

SHEAVE HALF - stationary

1шт.

6

F14130

JACKSHAFT - reel

1шт.

7

F62225

FLANGE

- bearing

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-320) nut (129-103)

3шт.

8

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - used w/o collar

1шт.

9

F10879

SPACER

2шт.

F8393

CHAIN - drives reel drive jackshaft (See chain page)

1шт.

10

F87397

SPROCKET ASSY.

SPROCKET - (24T and 38T) Reel drive

1шт.

SCREW - 1/4" x 3/4" sq. hd. cup pt. N.C. set (181-809)

1шт.

F78368

SPROCKET - (15T) For Case Draper Pickups

1шт.

11

O2237HT

KEY - 5/16" x 5/16" x 1" for ref. 6 and 10

1шт.

12

B18282

FLANGE

- bearing

2шт.

13

F82057

BEARING

- used w/o collar

1шт.

14

F13525

SCREW

NUT - adjusting, for ref. 1

2шт.

15

F13526

FLANGED BEARING

FLANGETTE - for ref. 16

2шт.

16

K3380

BEARING

1шт.

17

F13527

SCREW

BRACKET - cable

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-102) nut (129-101)

2шт.

18

O30958HT

SPACER - for ref. 12 and 22

3шт.

19

113-134

BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5

- 5/16" x 7-1/2" N.C. hex.

3шт.

NUT - 5/16" N.C. hex. (129-102) L.W. (192-20)

3шт.

20

F14127

CABLE - control, 12' header

1шт.

F13530

CABLE - control, 13' header

1шт.

F14128

CABLE - control, 14' header

1шт.

F14129

CABLE - control, 16' and 18' headers

1шт.

21

136-6

HAIRPIN - cotter, for ref. 20

1шт.

22

F13528

SCREW

PLATE - mounting

1шт.

23

F13539

CLAMP - cable

1шт.

BOLT - 1/4" x 5/8" N.C. hex. (113-2) nut (129-101)

2шт.

24

F87370

CRANK - w/washer

1шт.

25

D26421

WASHER

2шт.

26

F13537

THRUST BEARING

BEARING - thrust

1шт.

27

F87372

HOUSING - crank

1шт.

28

F87371

CLEVIS AND NUT

1шт.

29

F13538

SPACER

2шт.

30

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

2шт.

31

F14109

"U"BOLT

1шт.

NUT - 5/16" N.C. wing (129-419) L.W. (192-20)

2шт.

NUT - 5/16" N.C. hex. (129-102) L.W. (192-20)

2шт.

WASHER - 5/16" flat (195-521)

2шт.

32

F14110

PLATE - "U"bolt

1шт.
