Запчасти Case IH 1060 (038) - DRAPER PICKUP, PICKUP DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS

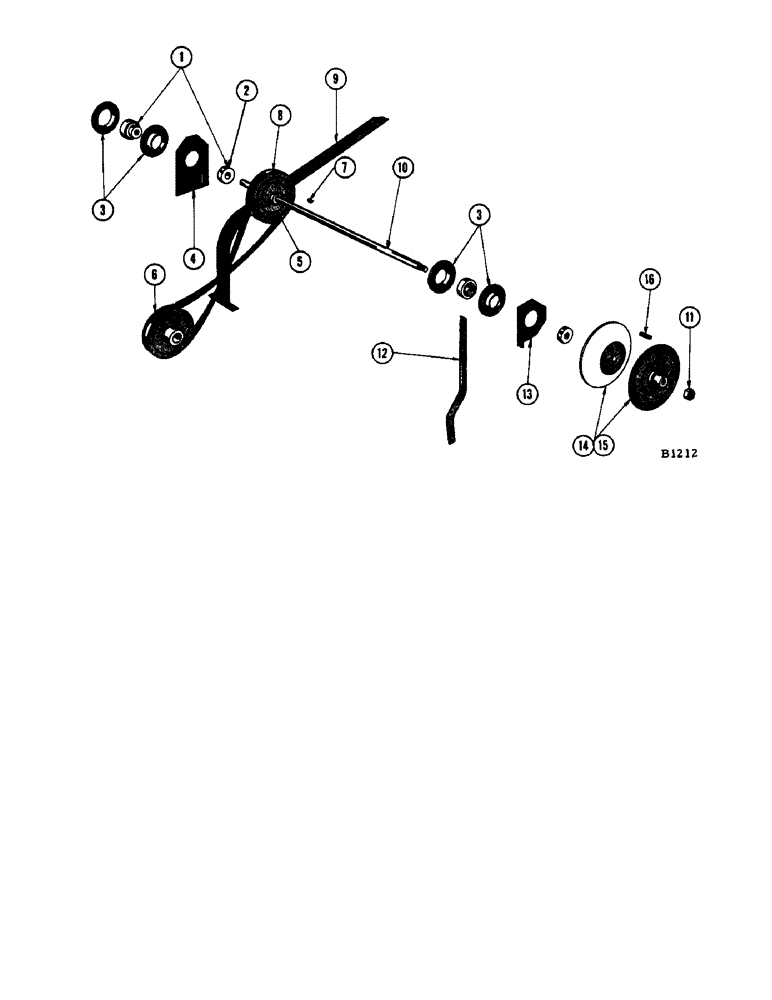

Схема запчастей Case IH 1060 - (038) - DRAPER PICKUP, PICKUP DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS
4
12
10
11
8
13
7
16
14
1
15
3
3
6
5
2
9

Артикул

Название

Примечание

Количество

1

3074CSA

BALL BEARING

- jackshaft

2шт.

2

F62108

COLLAR

1шт.

3

B18282

FLANGE

- for ref. 1

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

6шт.

4

F8529

BRACKET - bearing, R.H. end of jackshaft

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-123)

2шт.

WASHER - 3/8" plain (195-522) L.W. (192-21)

2шт.

O418L

WASHER - for ref. 4

2шт.

5

F77186

SHEAVE - (6-1/2") Roller drive, replaces F77185 - 8"

1шт.

PIN - 1/4" x 2" cotter (132-154)

1шт.

6

F81889

SHEAVE - (8") Rear roller drive, replaces F77186 - 6-1/2"

1шт.

7

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

PIN - 1/4" x 1-3/4" driv-loc type "A" (135-360)

1шт.

8

F8549

"V"BELT - rear roller drive

1шт.

9

F88429

ANGLE - mtg., L.H. (Replaces F87800 when stock is exhausted)

1шт.

F87800

ANGLE - mtg., L.H. (Replaced by F88429)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-103)

2шт.

WASHER - 3/8" plain (195-104) L.W. (192-21)

2шт.

10

F9795

JACKSHAFT - (1" rd. x 31-1/8" long) 12 ft. header

1шт.

FITTING - 1/8" str. (219-1)

1шт.

NUT - 3/4" #49 ESNA (131-45) Plain wshr. (195-109)

1шт.

F8551

JACKSHAFT - (1" rd. x 43-1/8" long) 14 ft. header

1шт.

FITTING - 1/8" str. (219-1)

1шт.

NUT - 3/4" 349 ESNA (131-45) Plain wshr. (195-109)

1шт.

F9796

JACKSHAFT - (1" rd. x 55-1/8" long) 16 ft. header

1шт.

FITTING - 1/8" str. (219-1)

1шт.

WASHER - plain (195-109)

1шт.

11

131-45

X

NUT - 3/4" #49 ESNA

1шт.

12

F14048

ANGLE - outer, jackshaft support (Replaces F8543)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

2шт.

13

F8544

BRACKET - bearing, L.H. end of jackshaft

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-123)

2шт.

WASHER - 3/8" plain (195-522) L.W. (192-21)

2шт.

14

F1313

SHEAVE

HALF - variable speed (Drives jackshaft) Driven

1шт.

15

F1314

SHEAVE HALF - variable speed (Drives jackshaft) Driven

1шт.

16

F8896

KEY - (1/4" sq. x 3-3/4" long) For ref. 14 and 15

1шт.

O4227CH

SNAP RING - for ref. 14 and 15 (Not shown)

1шт.
