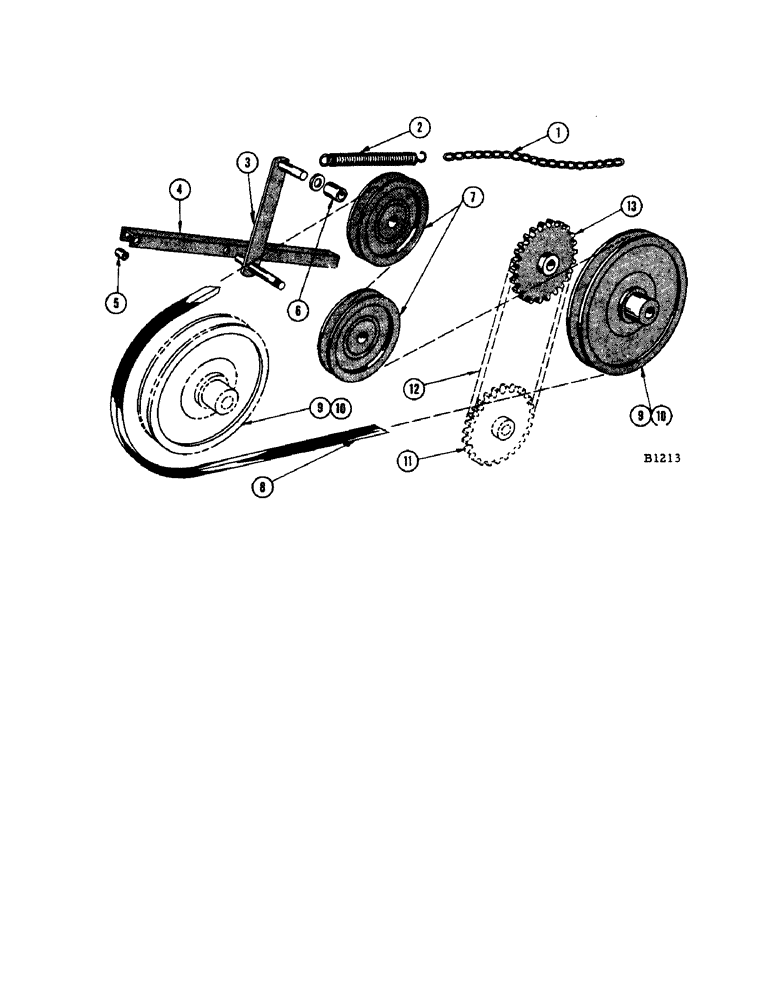

Запчасти Case IH 1060 (038[1]) - JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

O1876CH1

CHAIN - tightener tension

1шт.

2

146EB

SPRING - tightener tension

1шт.

3

F77600

BRACKET - tightener, jackshaft drive

1шт.

NUT - 5/8" N.F. hex. (25-1110) L.W. (92-10) Plain wshr. (95-10)

1шт.

PIN - 3/16" x 3/4" cotter (132-89)

1шт.

4

F8870

CHANNEL - jackshaft drive tightener (12' pickup header)

1шт.

BOLT - 3/8" x 2-1/4" N.F. hex. (114-213) nut (129-123)

1шт.

WASHER - 3/8" plain (195-104)

1шт.

BOLT - 7/16" x 2-1/4" N.F. hex. (114-304) nut (129-124_

1шт.

5

C3690S

SPACER - (3/8" O.D. x 1-1/4" long) Tightener channel

2шт.

6

11524K

BUSHING - (1" O.D. x 1-1/2" long) For F11626 sheave

2шт.

7

F13064

SCREW

SHEAVE - idler and tightener (Replaces F11626)

2шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (14-1060)

1шт.

WASHER - 5/8" plain (95-10) L.W. (92-10) nut (25-1110)

2шт.

8

F14230

BELT

"V"BELT - jackshaft drive (Replaces F9428)

1шт.

9

F1313

SHEAVE

HALF - variable speed (Drives jackshaft) Driven

1шт.

10

F1314

SHEAVE HALF - variable speed (Drives jackshaft) Driven

1шт.

11

F79867

SPROCKET - (23T) Drives reel drive jackshaft (Reference see main header drive jackshaft)

1шт.

12

F9427

CHAIN (AG)

CHAIN - pickup main drive (See chain page)

1шт.

13

F77182

SPROCKET - (15T) On reel drive jackshaft

1шт.
